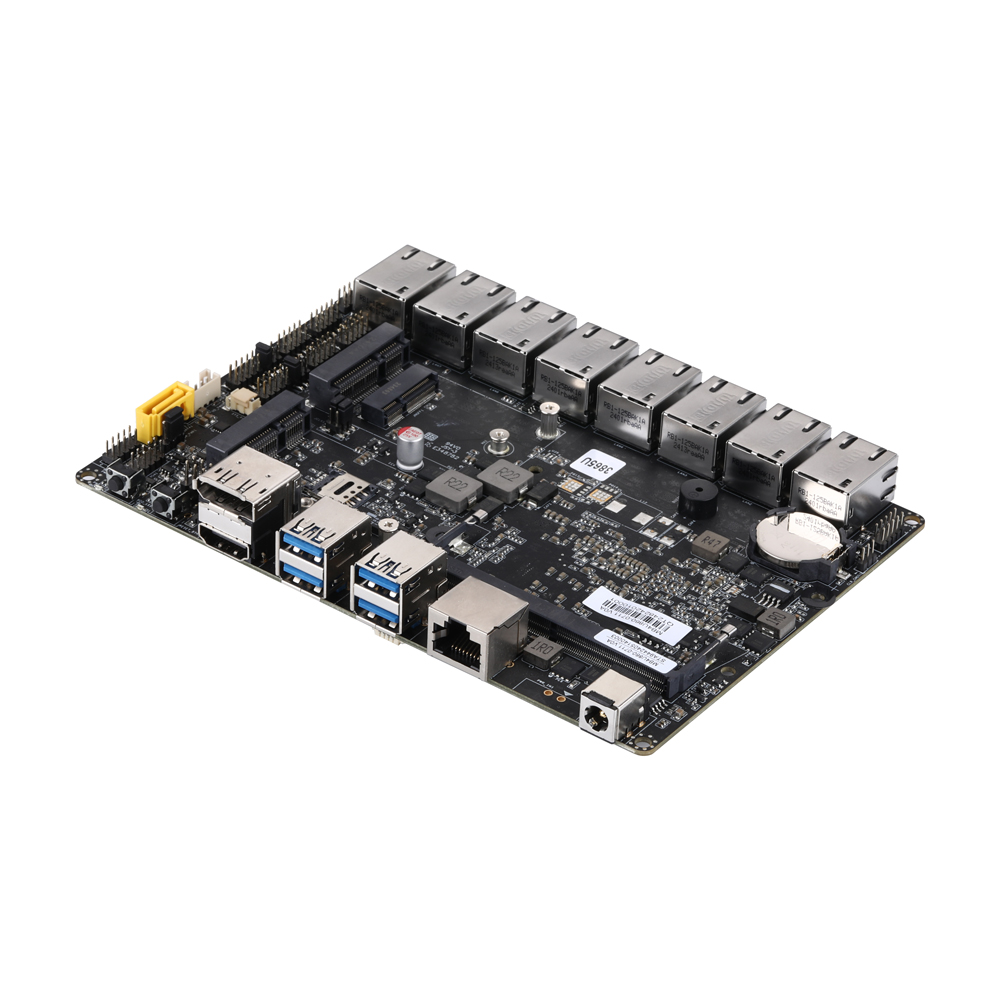

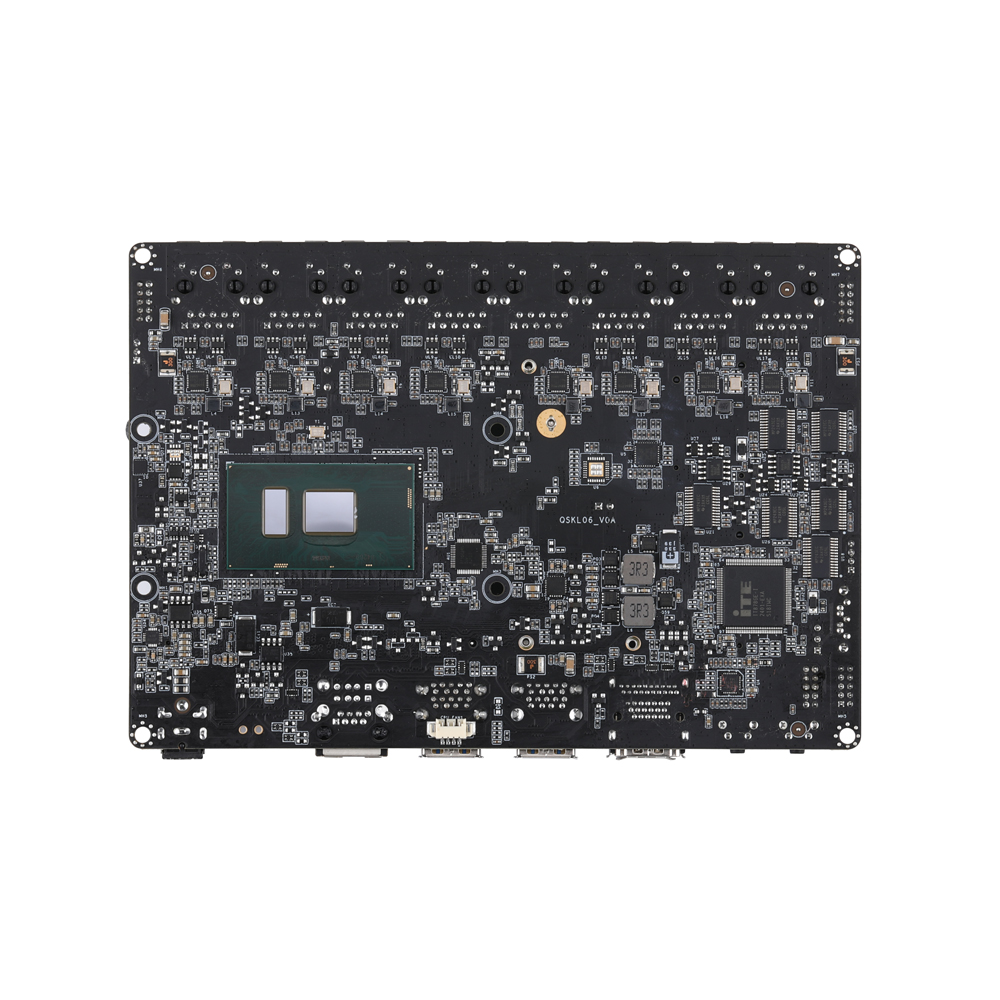

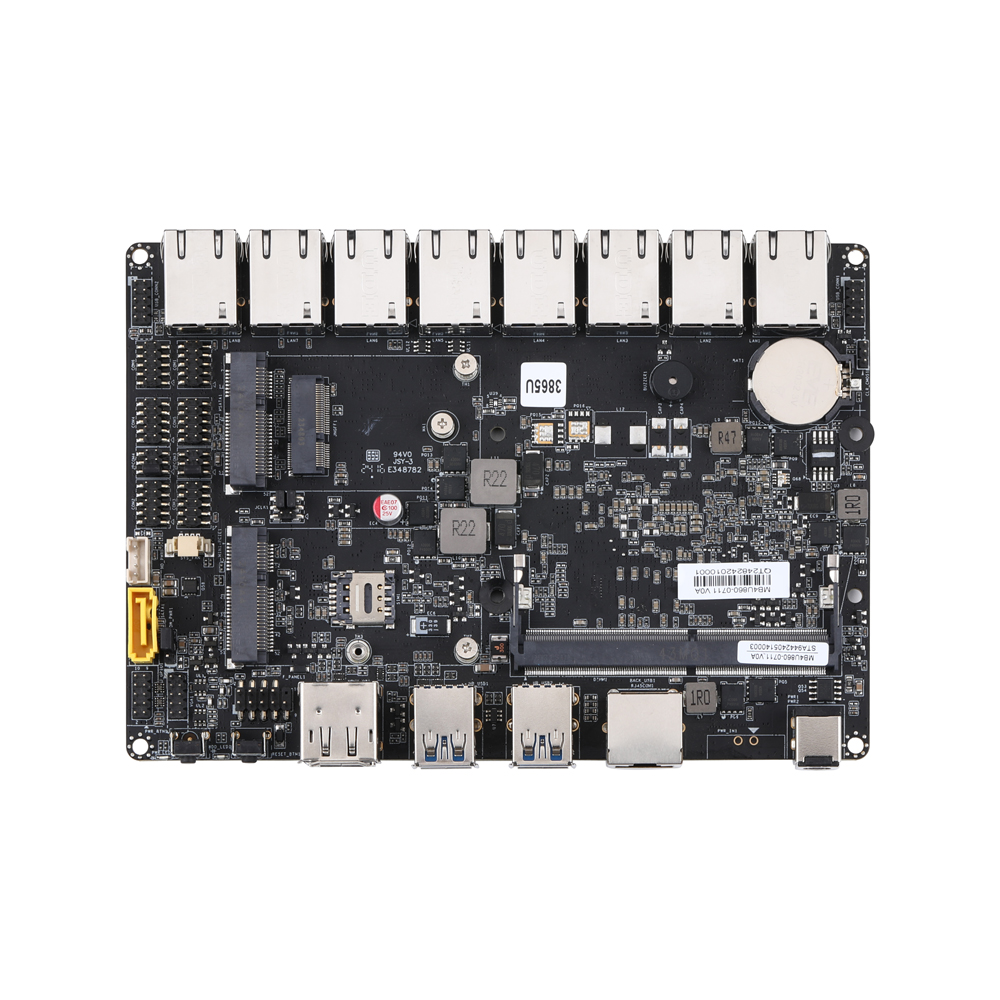

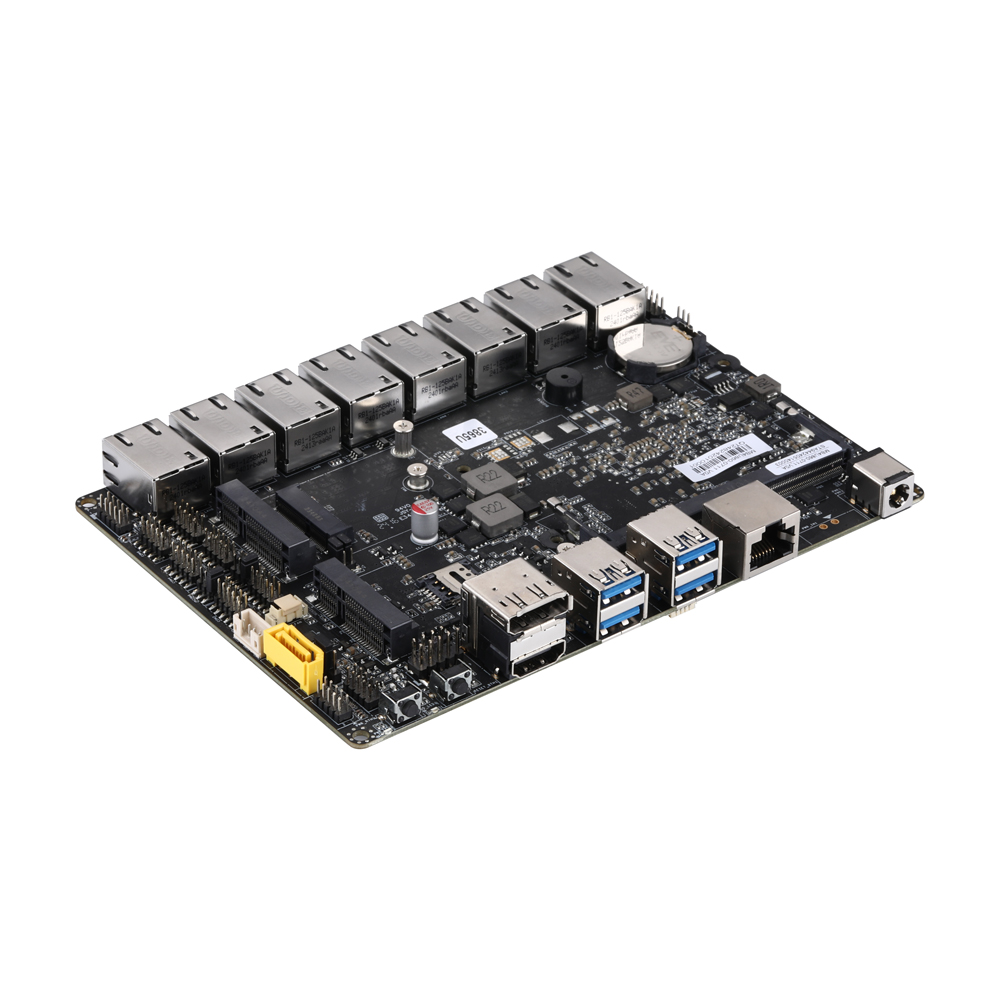

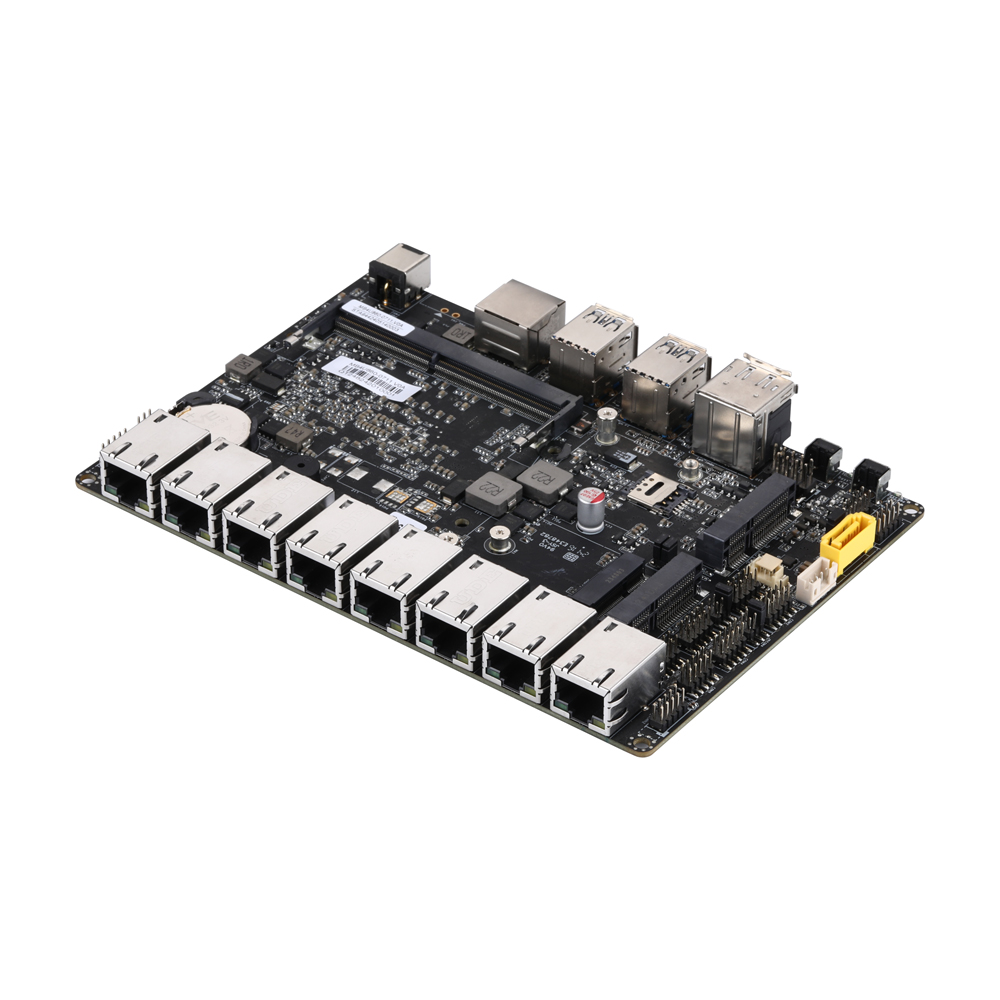

Motherboard MB4U860-0600 Series
Qotom 8-LAN Compact mini motherboard with Intel Skylake/Kabylake CPU support, 8 Realtek LAN ports, DisplayPort, HDMI, USB 3.0, M.2, ideal for machine vision and network applications.
Main Features
Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
Intel 8th Kabylake-R-U Processor
1 × Display Port, 1 × HDMI, 1 × VGA (Option)
4 × USB 3.0, 1 × SATA 3.0
1 × M.2, 1 × mSATA, 1 × Mini-PCIe
8 × Realtek Gigabit LAN
| Processor System | |
| Dimension | 165 × 115mm |
| CPU | Intel 6th Skylake-U Processor Intel 7th Kabylake-U Processor Intel 8th Kabylake-R-U Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini-PCIe | 1 × Mini PCIe, Full-length Mini PCIe for 4G by Default Half-length Mini PCIe for Wi-Fi (Only for USB Device, Option) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2133MHz SDRAM |
| Max. | 32GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| Display | 1 × Display Port 1 × HDMI 1 × VGA (Header) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 8 × Realtek Gigabit LAN |
| Connector | 8 × RJ-45 |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Real I/O | |
| Ethernet | 8 |
| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Display | 1 × Display Port, 1 × HDMI |
| Serial Port | 1 × RS-232 (RJ-45) |
| USB | 4 × USB 3.0, 2 × USB 2.0 (Option) |
| DC-IN | 1 |
| Internal Connector | |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm (Option) |
| Serial Port | 6, 2 × 5Pin, Pitch 2.0mm, COM3/4 Support 5V/12V (Option) |
| RS-485 | COM3/4 can be set up as RS-48 (Option) |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO Header | 1, 2 × 5Pin, Pitch 2.0mm |
| USB 3.0 Header | 2, 2 × 5Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Power Header | 1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| Accessories | |
| Accessories | Cable for HDD |
| OS Support | |
| OS | Windows 10, Linux Windows 7 (Only for 6th Gen Skylake) |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and Specifications Information
Quick Order Model: MB4U860-0711
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| MB4U860-0611 | Skylake | Celeron | 3855U | 2 | 2 | 1.6GHz | / | 2M | Intel HD 510 | 15W |
| MB4U860-0612 | Skylake | Celeron | 3955U | 2 | 2 | 2.0GHz | / | 2M | Intel HD 510 | 15W |
| MB4U860-0631 | Skylake | Core i3 | 6100U | 2 | 4 | 2.3GHz | / | 3M | Intel HD 520 | 15W |
| MB4U860-0651 | Skylake | Core i5 | 6200U | 2 | 4 | 2.3GHz | 2.8GHz | 3M | Intel HD 520 | 15W |
| MB4U860-0671 | Skylake | Core i7 | 6500U | 2 | 4 | 2.5GHz | 3.1GHz | 4M | Intel HD 520 | 15W |
| MB4U863-0711 | Kaby Lake | Celeron | 3865U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
| MB4U860-0712 | Kaby Lake | Celeron | 3965U | 2 | 2 | 2.2GHz | / | 2M | Intel HD 610 | 15W |
| MB4U860-0731 | Kaby Lake | Core i3 | 7100U | 2 | 4 | 2.4GHz | / | 3M | Intel HD 620 | 15W |
| MB4U860-0751 | Kaby Lake | Core i5 | 7200U | 2 | 4 | 2.5GHz | 3.1GHz | 3M | Intel HD 620 | 15W |
| MB4U860-0771 | Kaby Lake | Core i7 | 7500U | 2 | 4 | 2.7GHz | 3.5GHz | 4M | Intel HD 620 | 15W |
| MB4U860-0811 | Kaby Lake R | Celeron | 3867U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
| MB4U860-0821 | Kaby Lake R | Pentium | 4417U | 2 | 2 | 2.3GHz | / | 2M | Intel HD 610 | 15W |
| MB4U860-0831 | Kaby Lake R | Core i3 | 8130U | 2 | 4 | 2.0GHz | 3.40GHz | 4M | Intel UHD 620 | 15W |
| MB4U860-0851 | Kaby Lake R | Core i5 | 8250U | 4 | 8 | 1.6GHz | 3.4GHz | 6M | Intel UHD 620 | 15W |
| MB4U860-0871 | Kaby Lake R | Core i7 | 8550U | 4 | 8 | 1.8GHz | 4.0GHz | 8M | Intel UHD 620 | 15W |
