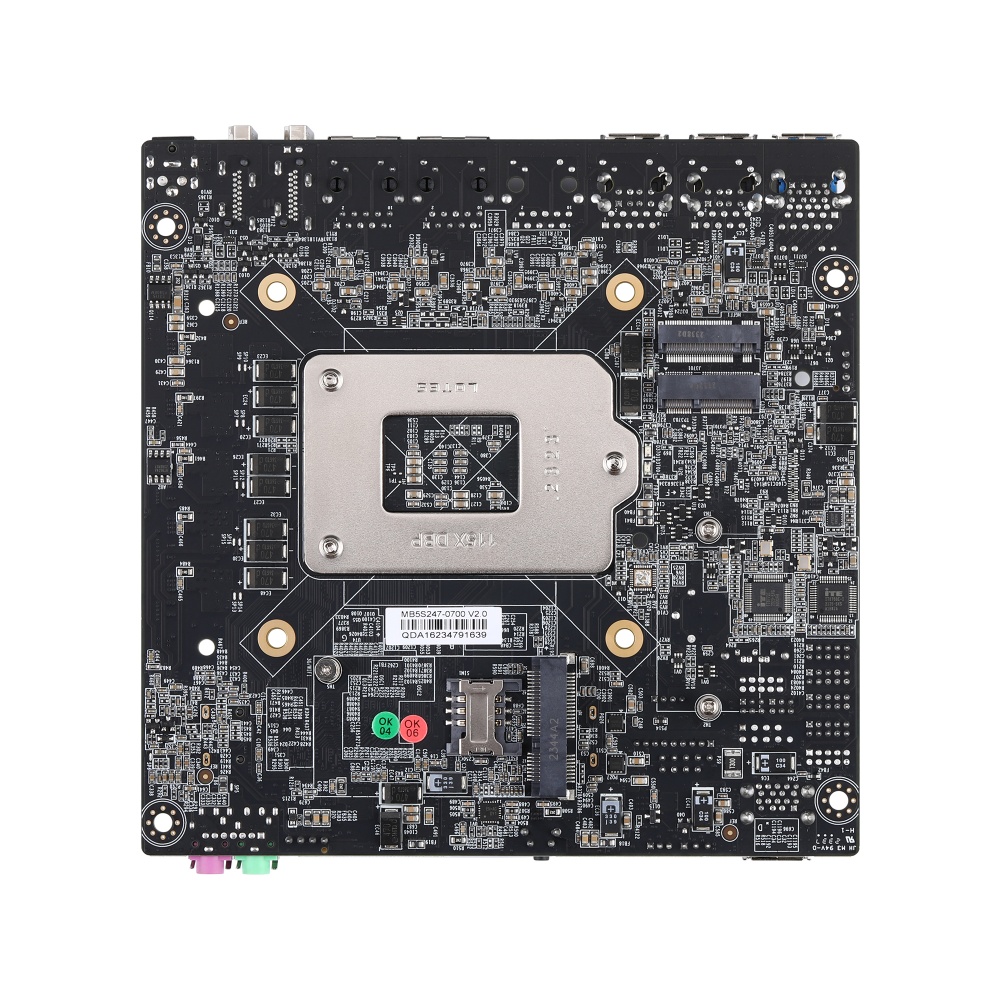

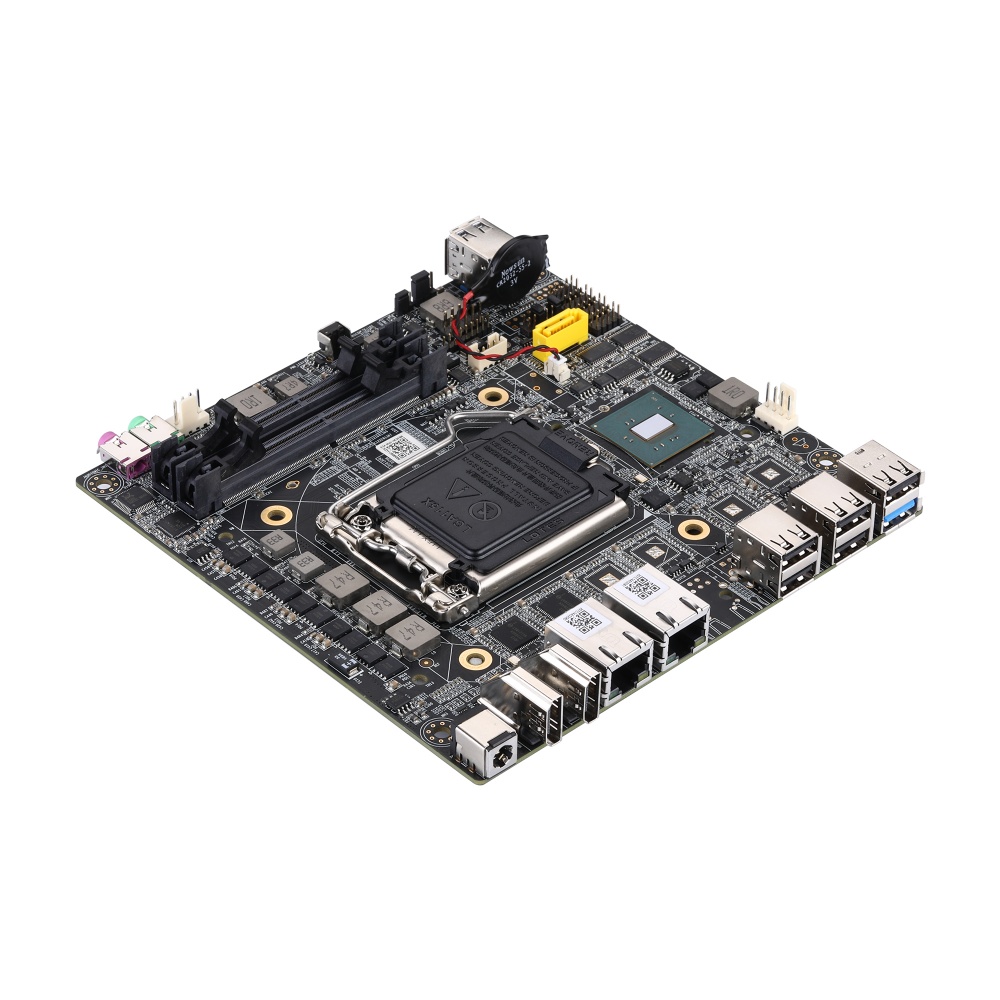

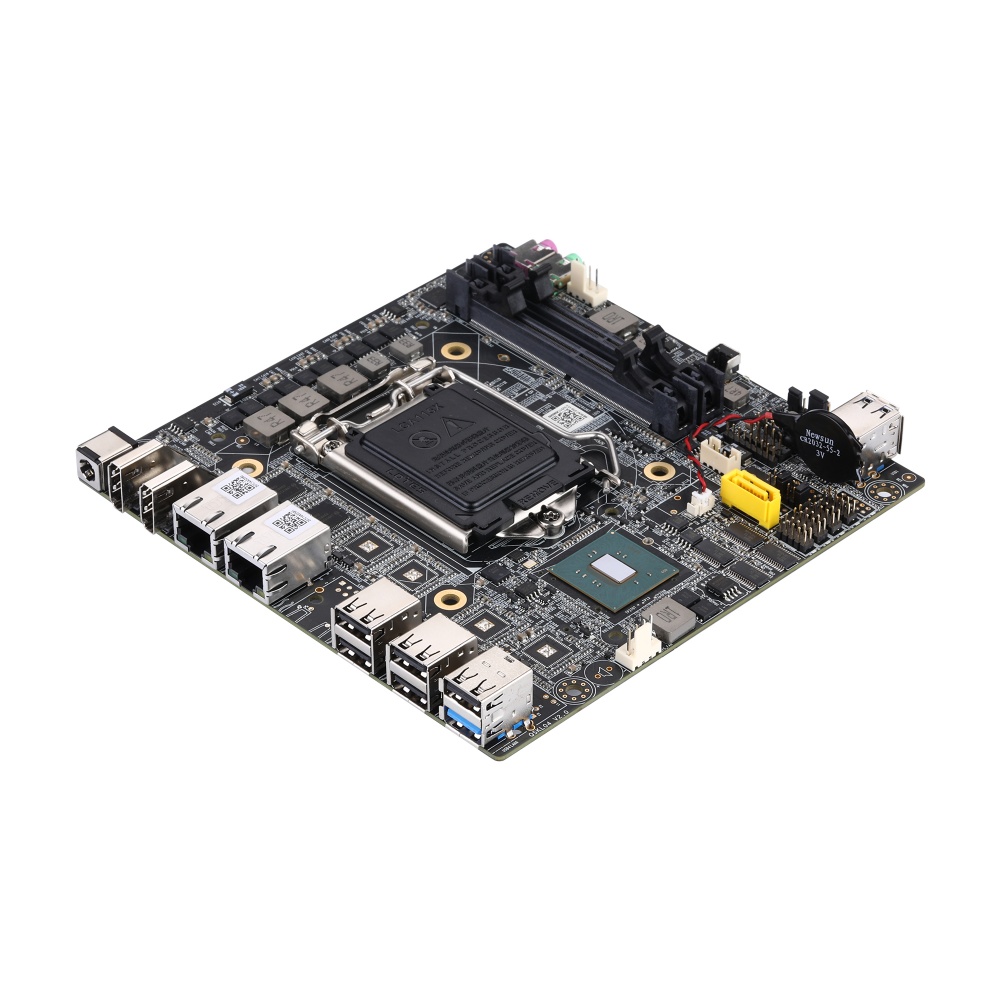

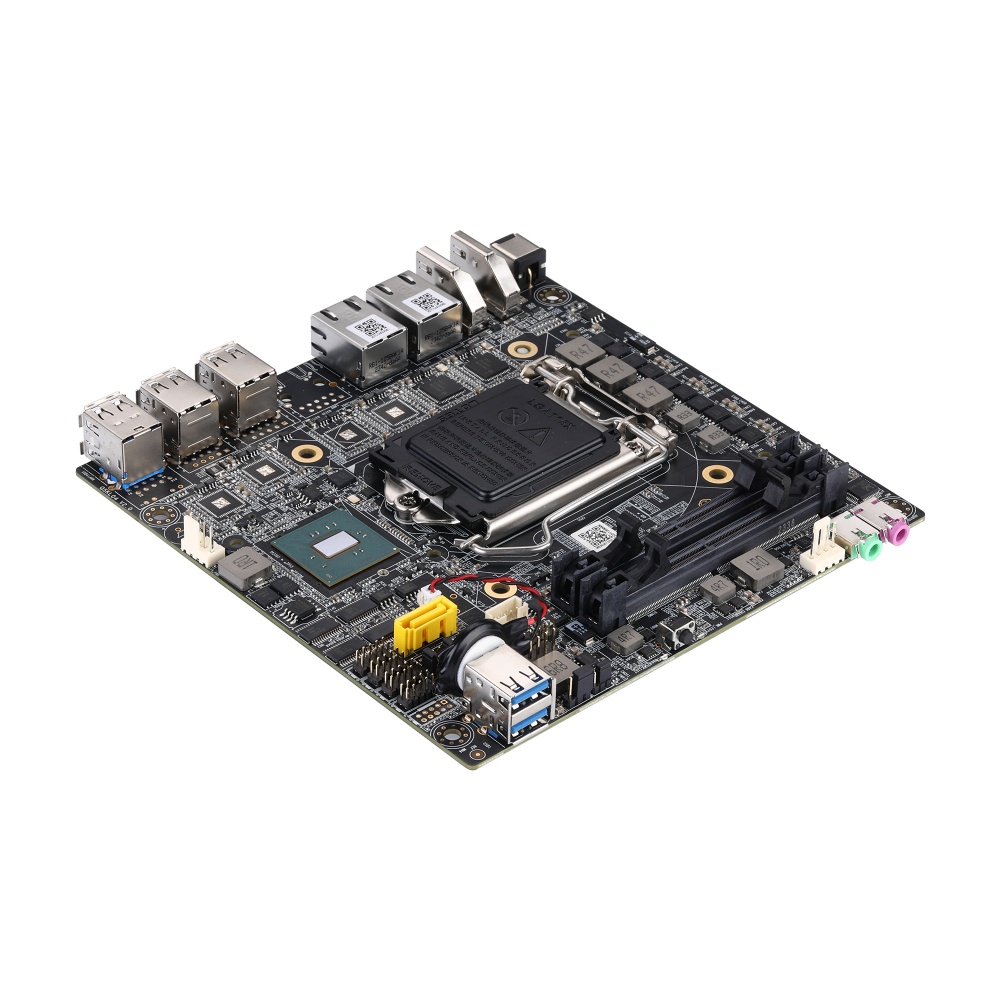

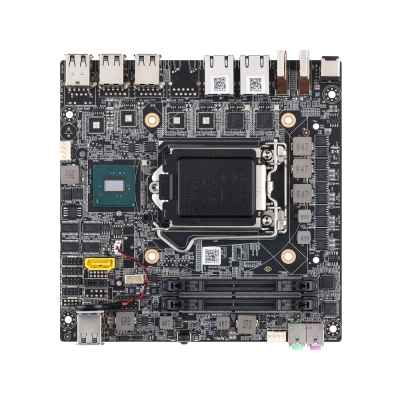

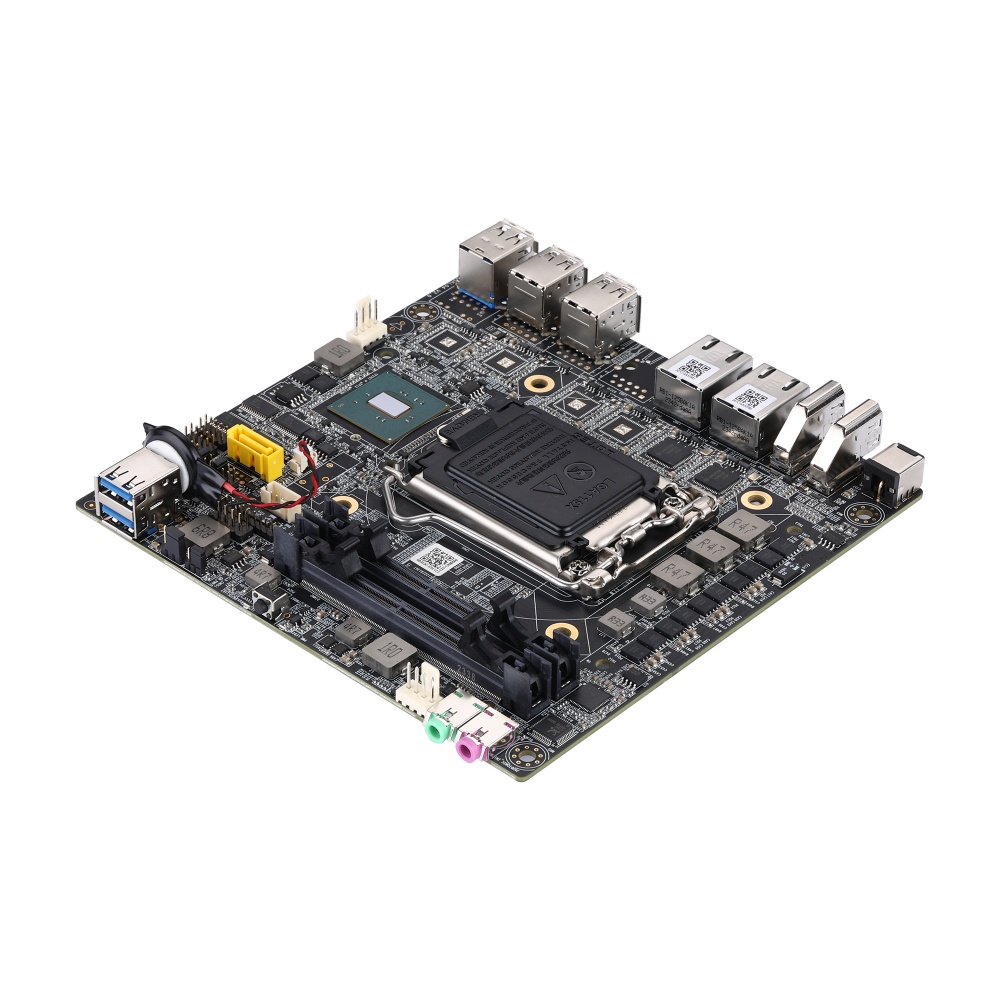

Motherboard MB5S247-0700 Series
Qotom MB5S247-0700 desktop mini PC motherboard supports Intel 6th to 9th Gen processors, features multiple serial ports (4× RS-232, 2× RS-485), dual Gigabit LAN, and versatile storage options with Mini-PCIe and dual M.2 slots.
- NIC
- 2
- USB
- 8
- RS-232
- 4
- RS-485
- 2
- VGA
- 1
- PS/2
- 0
- GPIO
- 0
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel 6th Skylake-S Processor
Intel 7th Kabylake-S Processor
Intel 8th Coffee Lake-S Processor
Intel 9th Coffee Lake-R-S Processor
2 × HDMI, 1 × VGA (Header)
4 × RS-232, 2 × RS-485
3 × USB 3.0, 5 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 2 × M.2
2 × Intel I211-AT/I210-AT Gigabit LAN
Specification
| Processor System | |
| Dimension | 155 × 155mm |
| CPU | Intel 6th Skylake-S Processor Intel 7th Kabylake-S Processor Intel 8th Coffee Lake-S Processor Intel 9th Coffee Lake-R-S Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | Intel H110 |
| Expansion Slot | |
| Mini-PCIe | 1 × Mini PCIe, Half-length Mini PCIe for Wi-Fi, Full- length Mini PCIe for 4G by Default |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2133MHz SDRAM |
| Max. | 64GB |
| Socket | 2 × SO-DIMMs |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 (Option) |
| HDMI | 2 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 2x Intel I211-AT/I210-AT Gigabit LAN |
| Connector | 2 × RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD, Cable for Serial Port |
| Real I/O | |
| DC-IN | 1 |
| HDMI | 2 |
| Ethernet | 2 |
| USB | 1 × USB 3.0, 5 × USB 2.0 |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| Internal Connector | |
| TPM | 1 (Option) |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm (Option) |
| Serial Port | 4, 2 × 5Pin, Pitch 2.0mm, COM1/2 Support 5V/12V |
| RS-485 | COM1/2 can be set up as RS-485 |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO Header | 1, 2 × 5Pin, Pitch 2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 4.2mm (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | Windows 10, Linux Windows 7 (Only for 6th Gen Skylake) |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and spec information
Ordering and Specifications Information
Quick Order Model: MB5S247-0700
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| - | Skylake | Celeron | G3900 | 2 | 2 | 2.8GHz | / | 2M | Intel HD 510 | 51W |
| - | Skylake | Pentium | G4500 | 2 | 2 | 3.5GHz | / | 3M | Intel HD 530 | 51W |
| - | Skylake | Core i3 | 6100 | 2 | 4 | 3.7GHz | / | 3M | Intel HD 530 | 51W |
| - | Skylake | Core i5 | 6400 | 4 | 4 | 2.7GHz | 3.3GHz | 6M | Intel HD 530 | 65W |
| - | Kaby Lake | Celeron | G3930 | 2 | 2 | 2.9GHz | / | 2M | Intel HD 610 | 51W |
| - | Kaby Lake | Pentium | G4560 | 2 | 4 | 3.5GHz | / | 3M | Intel HD 610 | 54W |
| - | Kaby Lake | Core i3 | 7100 | 2 | 4 | 3.9GHz | / | 3M | Intel HD 630 | 51W |
| - | Kaby Lake | Core i5 | 7500 | 4 | 4 | 3.4GHz | 3.8GHz | 6M | Intel HD 630 | 65W |
| - | Coffee Lake | Celeron | G4900 | 2 | 2 | 3.1GHz | / | 2M | Intel UHD Graphics 610 | 54W |
| - | Coffee Lake | Pentium | G5400 | 2 | 4 | 3.7GHz | / | 4M | Intel UHD Graphics 610 | 58W |
| - | Coffee Lake | Core i3 | 8100 | 4 | 4 | 3.6GHz | / | 6M | Intel UHD Graphics 630 | 65W |
| - | Coffee Lake | Core i5 | 8400 | 6 | 6 | 2.9GHz | 4.1GHz | 9M | Intel UHD Graphics 630 | 65W |
| - | Coffee Lake | Celeron | G4930 | 2 | 2 | 3.2GHz | / | 2M | Intel UHD Graphics 610 | 54W |
| - | Coffee Lake | Pentium | G5420 | 2 | 4 | 3.8GHz | / | 4M | Intel UHD Graphics 610 | 54W |
| - | Coffee Lake | Core i3 | 9100 | 4 | 4 | 3.6GHz | 4.2GHz | 6M | Intel UHD Graphics 630 | 65W |
| - | Coffee Lake | Core i5 | 9400 | 6 | 6 | 2.9GHz | 4.1GHz | 9M | Intel UHD Graphics 630 | 65W |
