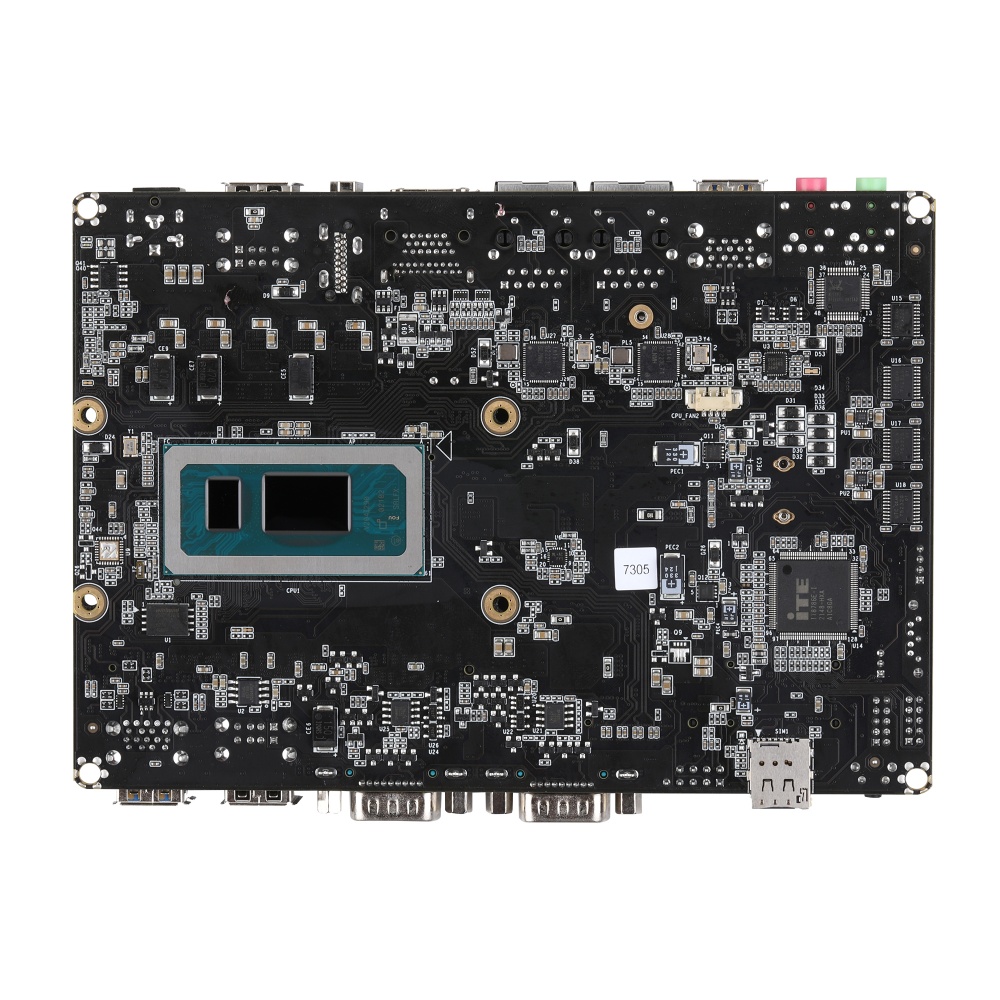

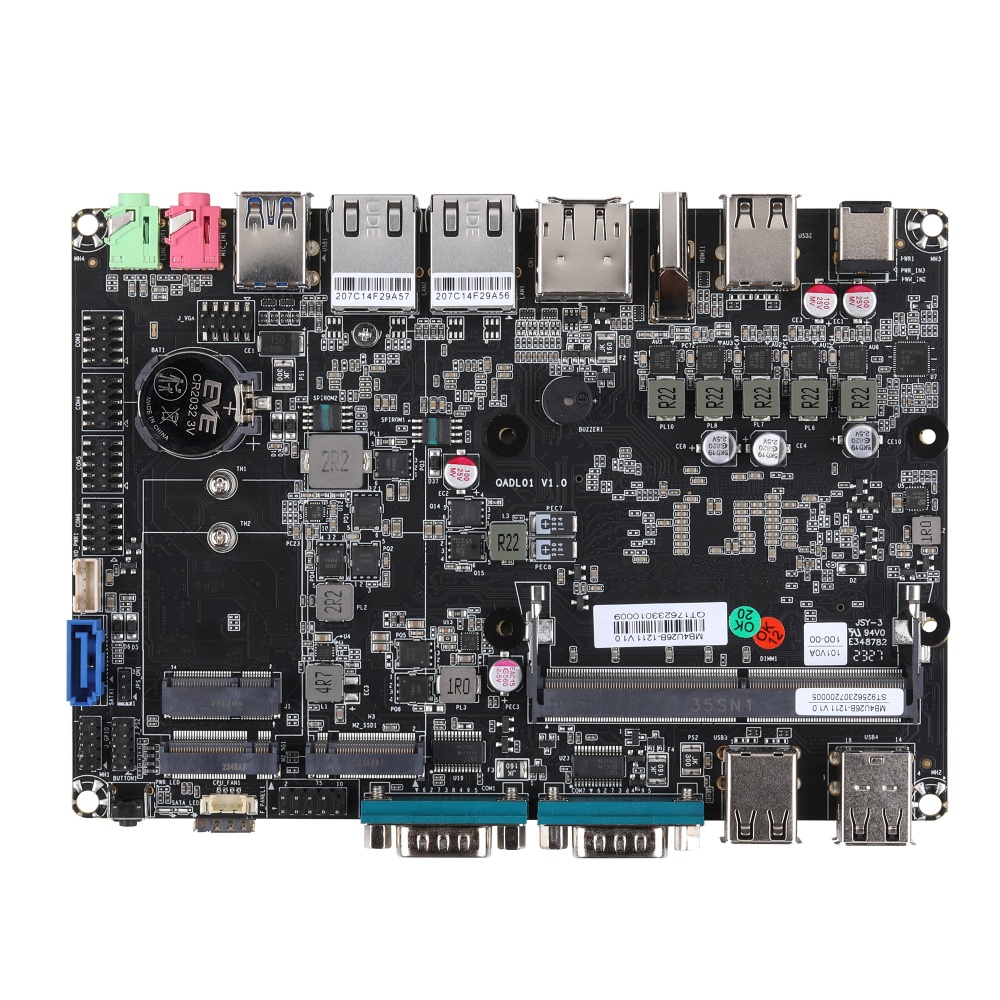

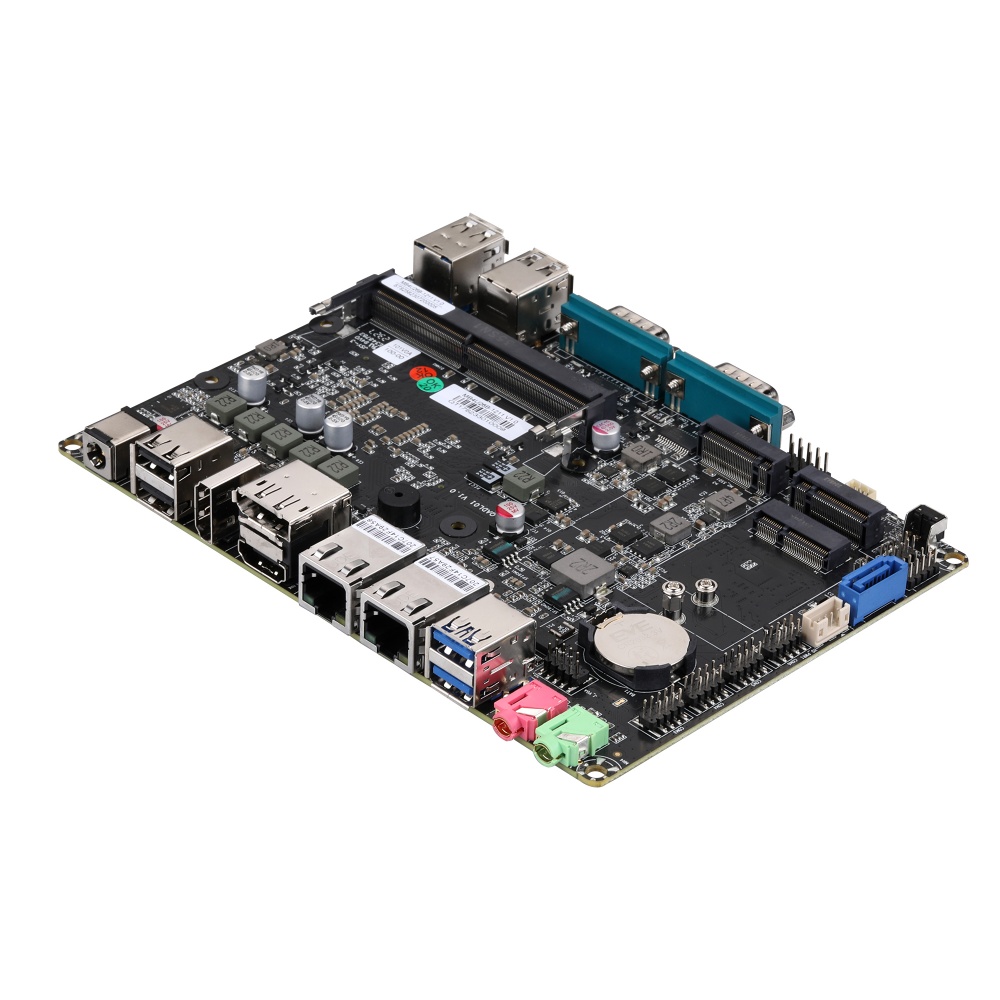

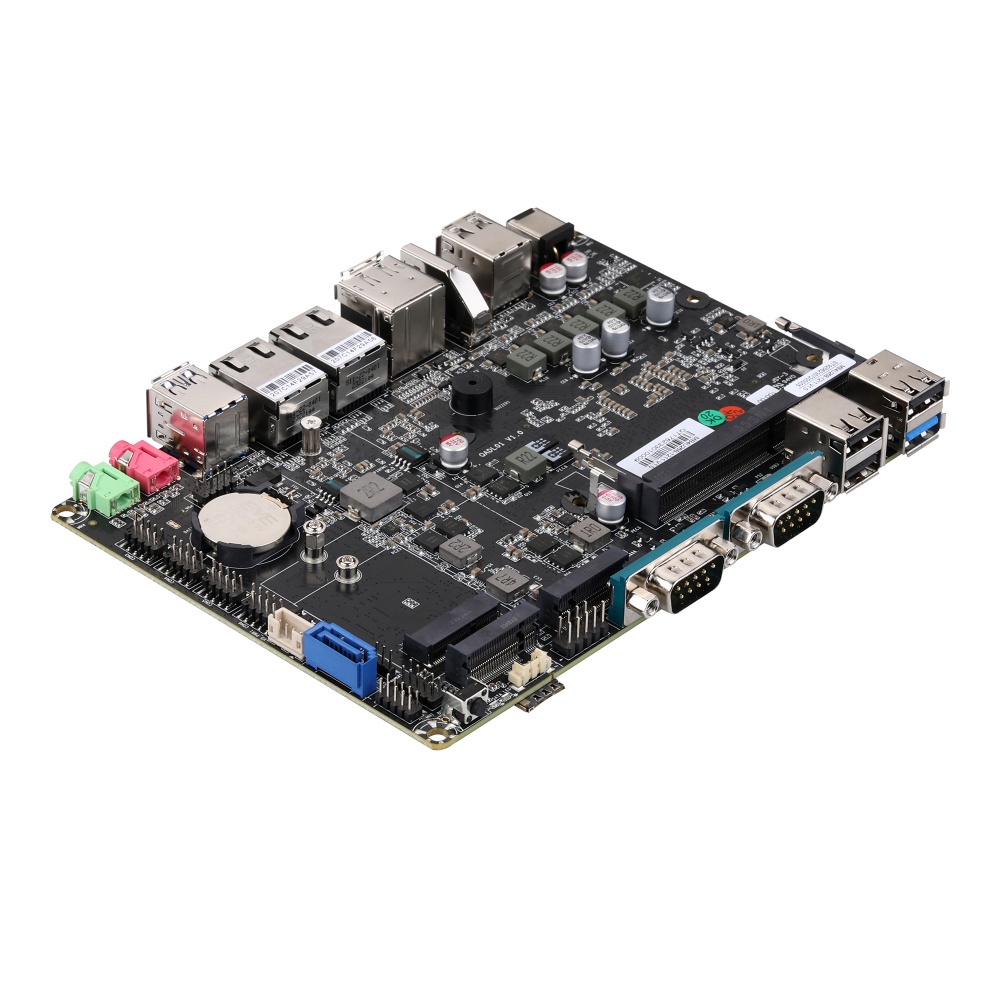

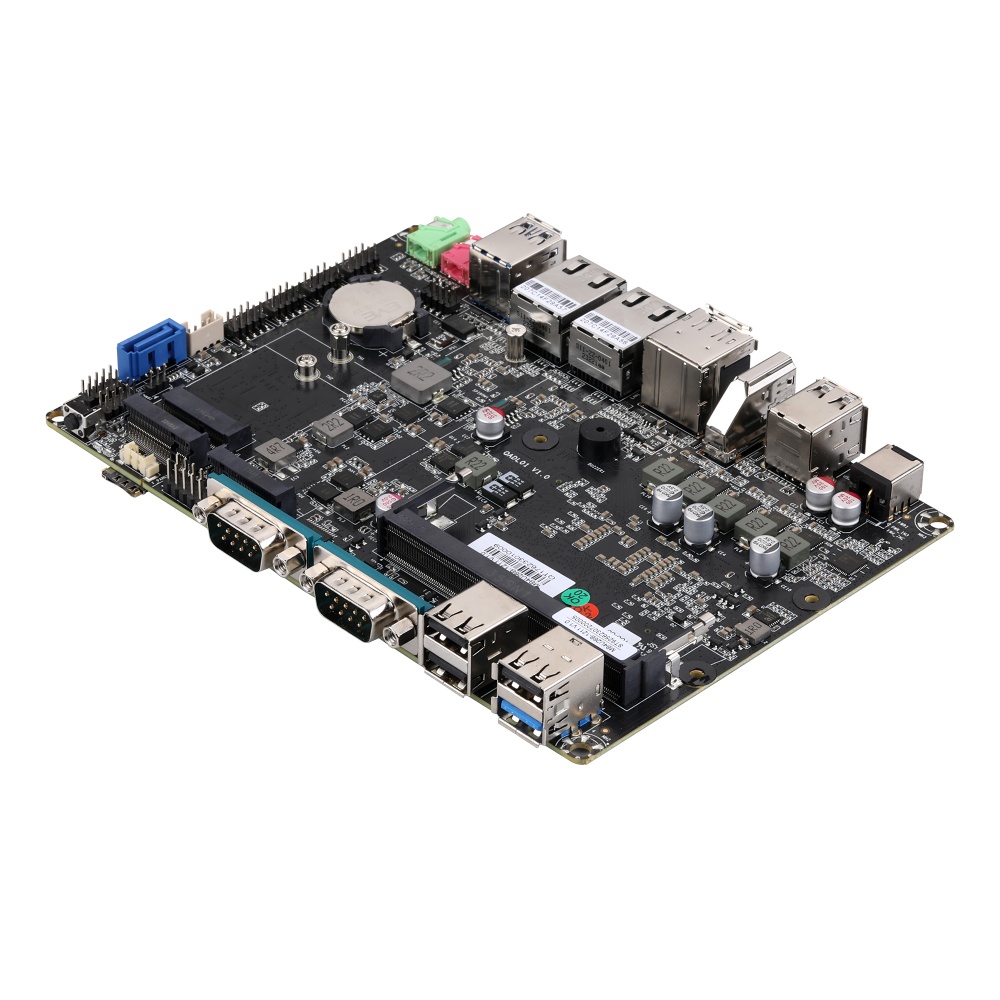

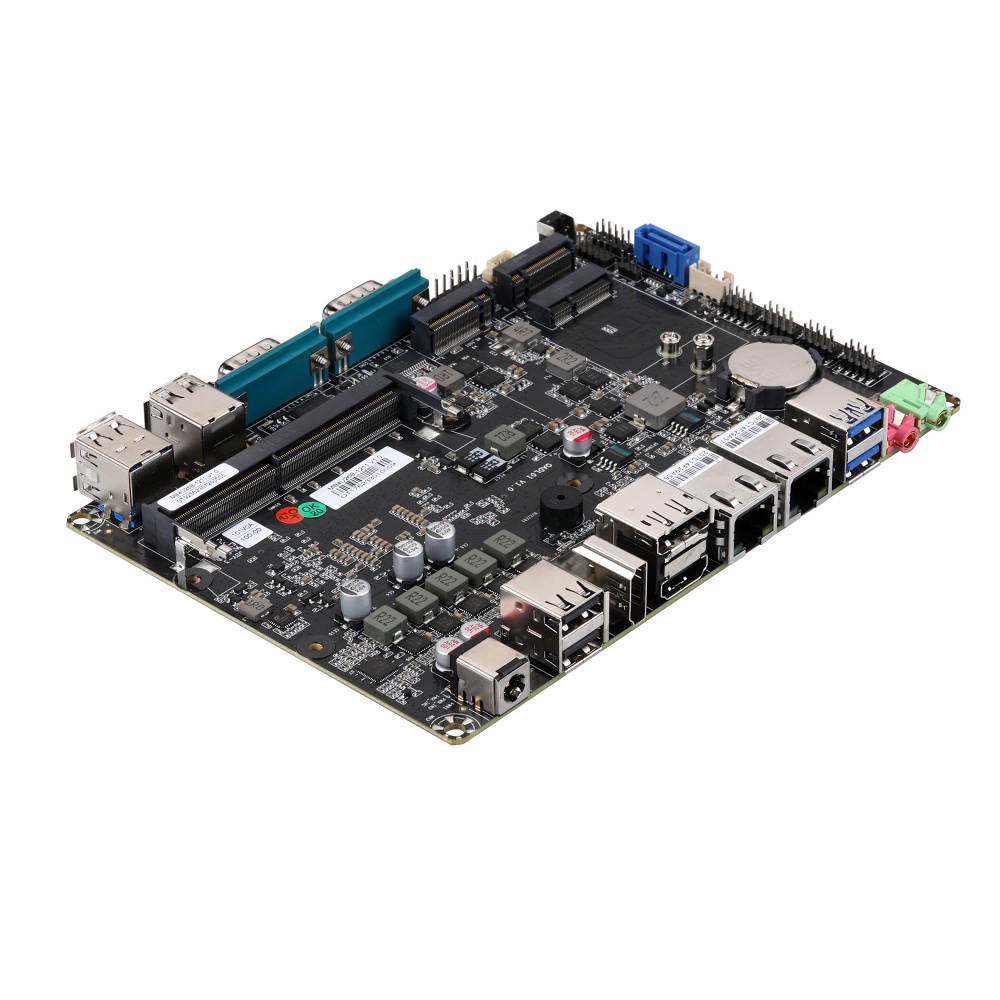

Motherboard MB4U26B-1200 Series
High-performance mini industrial board with Intel 12th/13th Gen CPU support, 8 COM ports, triple display, dual 2.5G LAN—ideal for edge computing and automation.
- NIC
- 2
- USB
- 8
- RS-232
- 6
- RS-485
- COM1/2 Can Be Set Up As RS-485
- VGA
- 1
- PS/2
- 0
- GPIO
- 0
Tell us the configuration and quantity you need.
Overview
Main Features
Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 2 × HDMI, 1 × VGA (Header)
6 × RS-232, 2 × RS-485
3 × USB 3.0, 5 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 2 × M.2
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Specifications
| Processor System | |
| Dimension | 165 × 115mm |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2133MHz SDRAM |
| Max. | 32GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 (Header) |
| Display Port | 1 |
| HDMI | 2 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000/2500Mbps |
| Controller | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Connector | 2 × RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD, Cable for Serial Port |
| Real I/O | |
| DC-IN | 1 |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| HDMI | 2 |
| Display Port | 1 |
| Ethernet | 2 |
| Audio | 2 (Mic-in, Line-out) |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Serial Port | 2 × RS-232 |
| Internal Connector | |
| TPM | 1 (Option) |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Serial Port | 4, 2 × 5Pin, Pitch 2.0mm, COM1/2 Support 5V/12V |
| RS-485 | COM1/2 can be set up as RS-485 |
| PS/2 | 1, 2 × 5Pin, Pitch 2.0mm |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V/19V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
ItemQuantity
- 1Motherboard1
- 2HDD cable1
- 3Radiator1Option
- 4Fan1Option
- 5Serial cableSeveralDepending on the model
Models & options
Ordering and Specifications Information
Quick Order Model: MB4U26B-1231
| Ordering Code | MB4U26B-1211 | MB4U26B-1221 | MB4U26B-1231 | MB4U26B-1251 | MB4U26B-1271 |
| Code Name | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 7305 | 8505 | 1215U | 1235U | 1255U |
| Total Cores | 5 | 5 | 6 | 10 | 10 |
| # of Performance-cores | 1 | 1 | 2 | 2 | 2 |
| # of Efficient-cores | 4 | 4 | 4 | 8 | 8 |
| # of Threads | 5 | 6 | 8 | 12 | 12 |
| Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Performance-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.20 GHz | 1.30 GHz | 1.70 GHz |
| Performance-core Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Efficient-core Base Frequency | 0.9 GHz | 0.9 GHz | 0.9 GHz | 0.9 GHz | 1.20 GHz |
| Efficient-core Max Turbo Frequency | - | 3.30 GHz | 3.30 GHz | 3.30 GHz | 3.50 GHz |
| Cache | 8M | 8M | 10M | 12M | 12M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 15-55W | 15-55W | 15-55W | 15-55W | 15-55W |
| Ordering Code | MB4P26B-1231 | MB4P26B-1251 | MB4P26B-1271 | ||
| Code Name | Alder Lake P | Alder Lake P | Alder Lake P | ||
| Processor Type | Core i3 | Core i5 | Core i7 | ||
| Processor Number | 1220P | 1240P | 1260P | ||
| Total Cores | 10 | 12 | 12 | ||
| # of Performance-cores | 2 | 4 | 4 | ||
| # of Efficient-cores | 8 | 8 | 8 | ||
| # of Threads | 12 | 16 | 16 | ||
| Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | ||
| Performance-core Base Frequency | 1.50 GHz | 1.70 GHz | 2.10 GHz | ||
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | ||
| Efficient-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.50 GHz | ||
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.40 GHz | ||
| Cache | 12M | 12M | 18M | ||
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible | ||
| TDP | 28-64W | 28-64W | 28-64W |
Code NameAlder Lake U
- MB4U26B-1211
- Alder Lake U
- MB4U26B-1221
- Alder Lake U
- MB4U26B-1231
- Alder Lake U
- MB4U26B-1251
- Alder Lake U
- MB4U26B-1271
- Alder Lake U
Processor TypeCeleron
- MB4U26B-1211
- Celeron
- MB4U26B-1221
- Pentium
- MB4U26B-1231
- Core i3
- MB4U26B-1251
- Core i5
- MB4U26B-1271
- Core i7
Processor Number7305
- MB4U26B-1211
- 7305
- MB4U26B-1221
- 8505
- MB4U26B-1231
- 1215U
- MB4U26B-1251
- 1235U
- MB4U26B-1271
- 1255U
Total Cores5
- MB4U26B-1211
- 5
- MB4U26B-1221
- 5
- MB4U26B-1231
- 6
- MB4U26B-1251
- 10
- MB4U26B-1271
- 10
# of Performance-cores1
- MB4U26B-1211
- 1
- MB4U26B-1221
- 1
- MB4U26B-1231
- 2
- MB4U26B-1251
- 2
- MB4U26B-1271
- 2
# of Efficient-cores4
- MB4U26B-1211
- 4
- MB4U26B-1221
- 4
- MB4U26B-1231
- 4
- MB4U26B-1251
- 8
- MB4U26B-1271
- 8
# of Threads5
- MB4U26B-1211
- 5
- MB4U26B-1221
- 6
- MB4U26B-1231
- 8
- MB4U26B-1251
- 12
- MB4U26B-1271
- 12
Max Turbo Frequency-
- MB4U26B-1211
- -
- MB4U26B-1221
- 4.40 GHz
- MB4U26B-1231
- 4.40 GHz
- MB4U26B-1251
- 4.40 GHz
- MB4U26B-1271
- 4.70 GHz
Performance-core Base Frequency1.10 GHz
- MB4U26B-1211
- 1.10 GHz
- MB4U26B-1221
- 1.20 GHz
- MB4U26B-1231
- 1.20 GHz
- MB4U26B-1251
- 1.30 GHz
- MB4U26B-1271
- 1.70 GHz
Performance-core Max Turbo Frequency-
- MB4U26B-1211
- -
- MB4U26B-1221
- 4.40 GHz
- MB4U26B-1231
- 4.40 GHz
- MB4U26B-1251
- 4.40 GHz
- MB4U26B-1271
- 4.70 GHz
Efficient-core Base Frequency0.9 GHz
- MB4U26B-1211
- 0.9 GHz
- MB4U26B-1221
- 0.9 GHz
- MB4U26B-1231
- 0.9 GHz
- MB4U26B-1251
- 0.9 GHz
- MB4U26B-1271
- 1.20 GHz
Efficient-core Max Turbo Frequency-
- MB4U26B-1211
- -
- MB4U26B-1221
- 3.30 GHz
- MB4U26B-1231
- 3.30 GHz
- MB4U26B-1251
- 3.30 GHz
- MB4U26B-1271
- 3.50 GHz
Cache8M
- MB4U26B-1211
- 8M
- MB4U26B-1221
- 8M
- MB4U26B-1231
- 10M
- MB4U26B-1251
- 12M
- MB4U26B-1271
- 12M
Processor GraphicsIntel UHD Graphics
- MB4U26B-1211
- Intel UHD Graphics
- MB4U26B-1221
- Intel UHD Graphics
- MB4U26B-1231
- Intel UHD Graphics
- MB4U26B-1251
- Intel Iris Xe Graphics eligible
- MB4U26B-1271
- Intel Iris Xe Graphics eligible
TDP15-55W
- MB4U26B-1211
- 15-55W
- MB4U26B-1221
- 15-55W
- MB4U26B-1231
- 15-55W
- MB4U26B-1251
- 15-55W
- MB4U26B-1271
- 15-55W
Ordering CodeMB4P26B-1231
- MB4U26B-1211
- MB4P26B-1231
- MB4U26B-1221
- MB4P26B-1251
- MB4U26B-1231
- MB4P26B-1271
Code NameAlder Lake P
- MB4U26B-1211
- Alder Lake P
- MB4U26B-1221
- Alder Lake P
- MB4U26B-1231
- Alder Lake P
Processor TypeCore i3
- MB4U26B-1211
- Core i3
- MB4U26B-1221
- Core i5
- MB4U26B-1231
- Core i7
Processor Number1220P
- MB4U26B-1211
- 1220P
- MB4U26B-1221
- 1240P
- MB4U26B-1231
- 1260P
Total Cores10
- MB4U26B-1211
- 10
- MB4U26B-1221
- 12
- MB4U26B-1231
- 12
# of Performance-cores2
- MB4U26B-1211
- 2
- MB4U26B-1221
- 4
- MB4U26B-1231
- 4
# of Efficient-cores8
- MB4U26B-1211
- 8
- MB4U26B-1221
- 8
- MB4U26B-1231
- 8
# of Threads12
- MB4U26B-1211
- 12
- MB4U26B-1221
- 16
- MB4U26B-1231
- 16
Max Turbo Frequency4.40 GHz
- MB4U26B-1211
- 4.40 GHz
- MB4U26B-1221
- 4.40 GHz
- MB4U26B-1231
- 4.70 GHz
Performance-core Base Frequency1.50 GHz
- MB4U26B-1211
- 1.50 GHz
- MB4U26B-1221
- 1.70 GHz
- MB4U26B-1231
- 2.10 GHz
Performance-core Max Turbo Frequency4.40 GHz
- MB4U26B-1211
- 4.40 GHz
- MB4U26B-1221
- 4.40 GHz
- MB4U26B-1231
- 4.70 GHz
Efficient-core Base Frequency1.10 GHz
- MB4U26B-1211
- 1.10 GHz
- MB4U26B-1221
- 1.20 GHz
- MB4U26B-1231
- 1.50 GHz
Efficient-core Max Turbo Frequency3.30 GHz
- MB4U26B-1211
- 3.30 GHz
- MB4U26B-1221
- 3.30 GHz
- MB4U26B-1231
- 3.40 GHz
Cache12M
- MB4U26B-1211
- 12M
- MB4U26B-1221
- 12M
- MB4U26B-1231
- 18M
Processor GraphicsIntel UHD Graphics
- MB4U26B-1211
- Intel UHD Graphics
- MB4U26B-1221
- Intel Iris Xe Graphics eligible
- MB4U26B-1231
- Intel Iris Xe Graphics eligible
TDP28-64W
- MB4U26B-1211
- 28-64W
- MB4U26B-1221
- 28-64W
- MB4U26B-1231
- 28-64W
Ordering and Specifications Information
Quick Order Model: MB4U26B-1231
| Ordering Code | MB4H26B-1231 | MB4H26B-1251 | MB4H26B-1271 | MB4H26B-1291 |
| Code Name | Alder Lake H | Alder Lake H | Alder Lake H | Alder Lake H |
| Processor Type | Core i3 | Core i5 | Core i7 | Core i9 |
| Processor Number | 12300HE | 12450H | 12650H | 12900H |
| Total Cores | 8 | 8 | 10 | 14 |
| # of Performance-cores | 4 | 4 | 6 | 6 |
| # of Efficient-cores | 4 | 4 | 4 | 8 |
| # of Threads | 12 | 12 | 16 | 20 |
| Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz | |
| Performance-core Base Frequency | 1.90 GHz | 2.00 GHz | 2.30 GHz | 2.50 GHz |
| Performance-core Max Turbo Frequency | 4.30 GHz | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Efficient-core Base Frequency | 1.90 GHz | 1.50 GHz | 1.70 GHz | 1.80 GHz |
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.50 GHz | 3.80 GHz |
| Cache | 12M | 12M | 24M | 24M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 45-115W | 45-95W | 45-115W | 45-115W |
Code NameAlder Lake H
- MB4H26B-1231
- Alder Lake H
- MB4H26B-1251
- Alder Lake H
- MB4H26B-1271
- Alder Lake H
- MB4H26B-1291
- Alder Lake H
Processor TypeCore i3
- MB4H26B-1231
- Core i3
- MB4H26B-1251
- Core i5
- MB4H26B-1271
- Core i7
- MB4H26B-1291
- Core i9
Processor Number12300HE
- MB4H26B-1231
- 12300HE
- MB4H26B-1251
- 12450H
- MB4H26B-1271
- 12650H
- MB4H26B-1291
- 12900H
Total Cores8
- MB4H26B-1231
- 8
- MB4H26B-1251
- 8
- MB4H26B-1271
- 10
- MB4H26B-1291
- 14
# of Performance-cores4
- MB4H26B-1231
- 4
- MB4H26B-1251
- 4
- MB4H26B-1271
- 6
- MB4H26B-1291
- 6
# of Efficient-cores4
- MB4H26B-1231
- 4
- MB4H26B-1251
- 4
- MB4H26B-1271
- 4
- MB4H26B-1291
- 8
# of Threads12
- MB4H26B-1231
- 12
- MB4H26B-1251
- 12
- MB4H26B-1271
- 16
- MB4H26B-1291
- 20
Max Turbo Frequency
- MB4H26B-1251
- 4.40 GHz
- MB4H26B-1271
- 4.70 GHz
- MB4H26B-1291
- 5.00 GHz
Performance-core Base Frequency1.90 GHz
- MB4H26B-1231
- 1.90 GHz
- MB4H26B-1251
- 2.00 GHz
- MB4H26B-1271
- 2.30 GHz
- MB4H26B-1291
- 2.50 GHz
Performance-core Max Turbo Frequency4.30 GHz
- MB4H26B-1231
- 4.30 GHz
- MB4H26B-1251
- 4.40 GHz
- MB4H26B-1271
- 4.70 GHz
- MB4H26B-1291
- 5.00 GHz
Efficient-core Base Frequency1.90 GHz
- MB4H26B-1231
- 1.90 GHz
- MB4H26B-1251
- 1.50 GHz
- MB4H26B-1271
- 1.70 GHz
- MB4H26B-1291
- 1.80 GHz
Efficient-core Max Turbo Frequency3.30 GHz
- MB4H26B-1231
- 3.30 GHz
- MB4H26B-1251
- 3.30 GHz
- MB4H26B-1271
- 3.50 GHz
- MB4H26B-1291
- 3.80 GHz
Cache12M
- MB4H26B-1231
- 12M
- MB4H26B-1251
- 12M
- MB4H26B-1271
- 24M
- MB4H26B-1291
- 24M
Processor GraphicsIntel UHD Graphics
- MB4H26B-1231
- Intel UHD Graphics
- MB4H26B-1251
- Intel UHD Graphics
- MB4H26B-1271
- Intel Iris Xe Graphics eligible
- MB4H26B-1291
- Intel Iris Xe Graphics eligible
TDP45-115W
- MB4H26B-1231
- 45-115W
- MB4H26B-1251
- 45-95W
- MB4H26B-1271
- 45-115W
- MB4H26B-1291
- 45-115W
