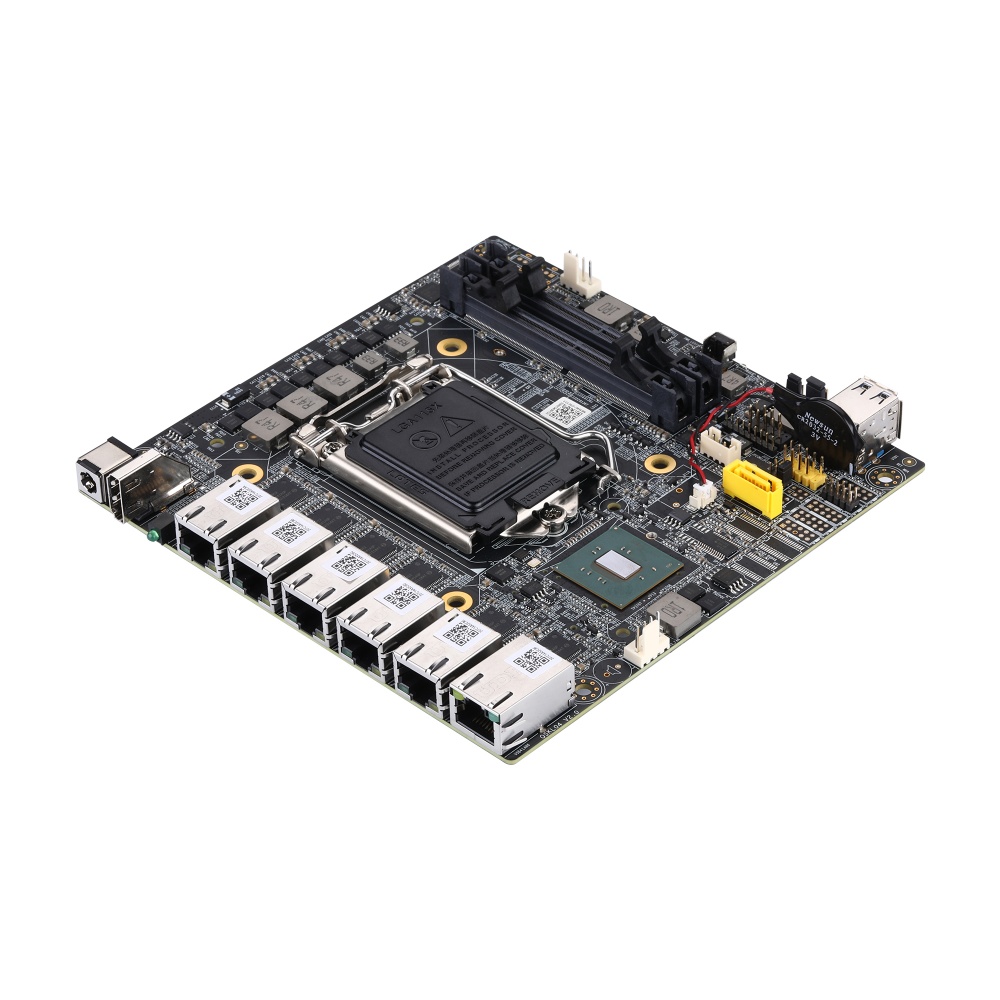

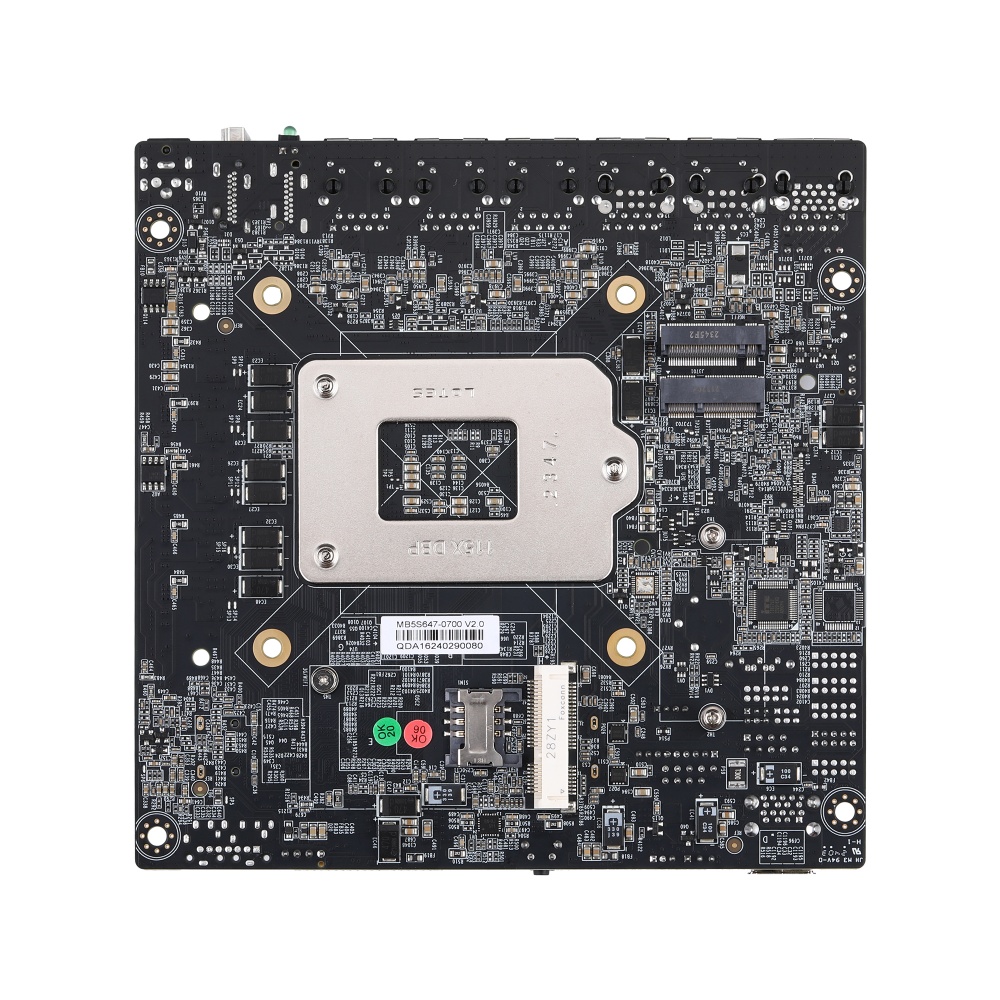

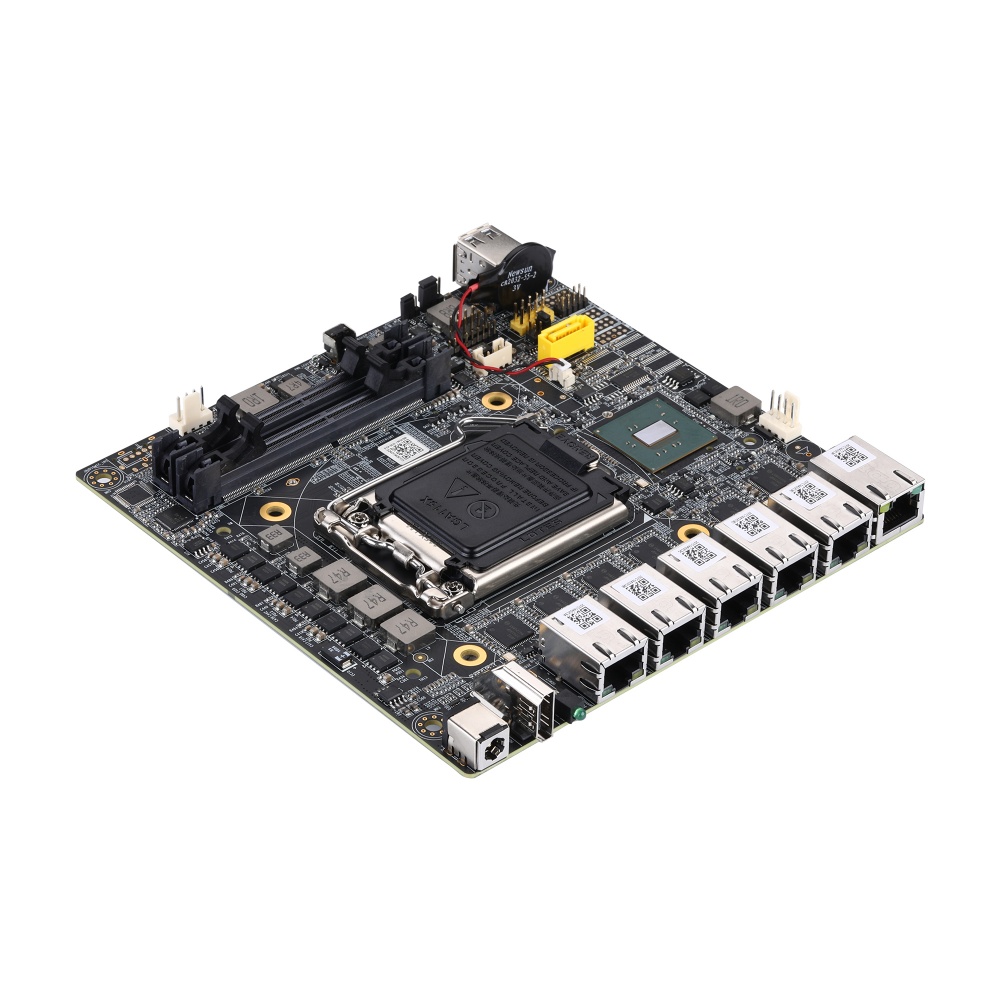

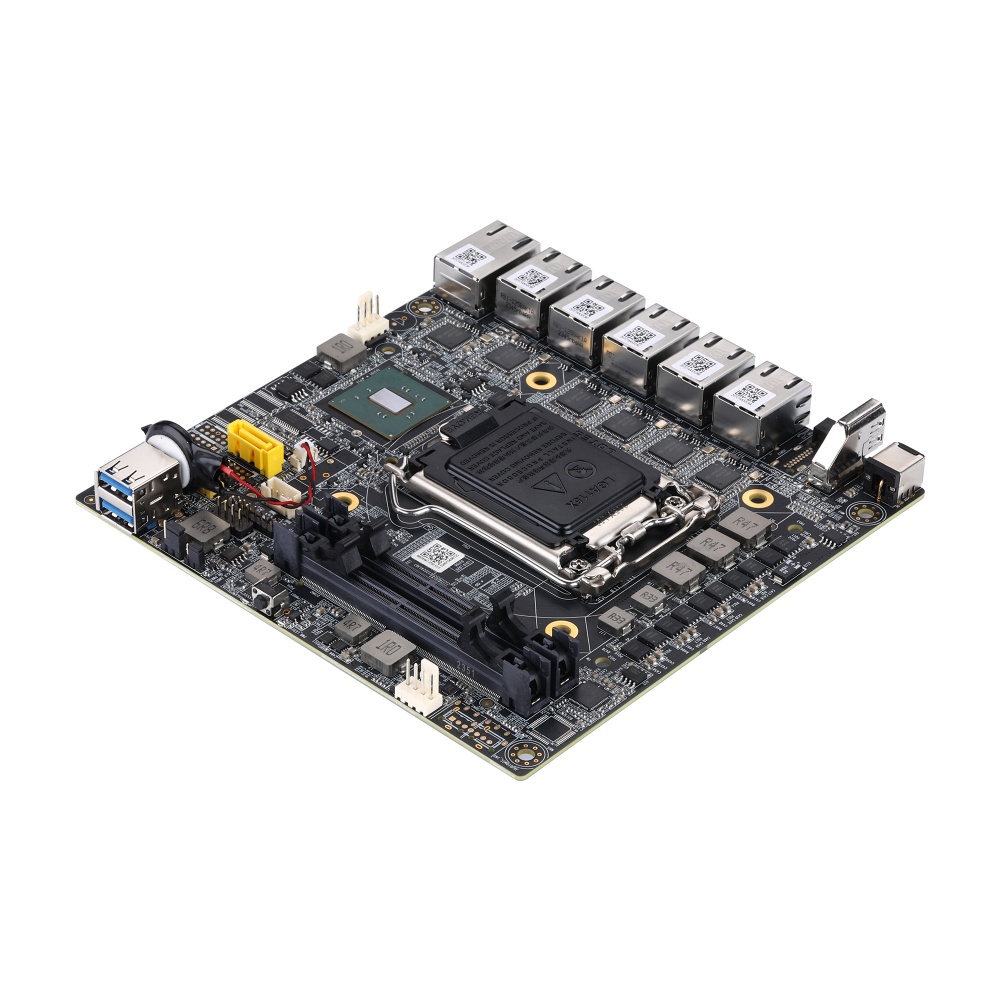

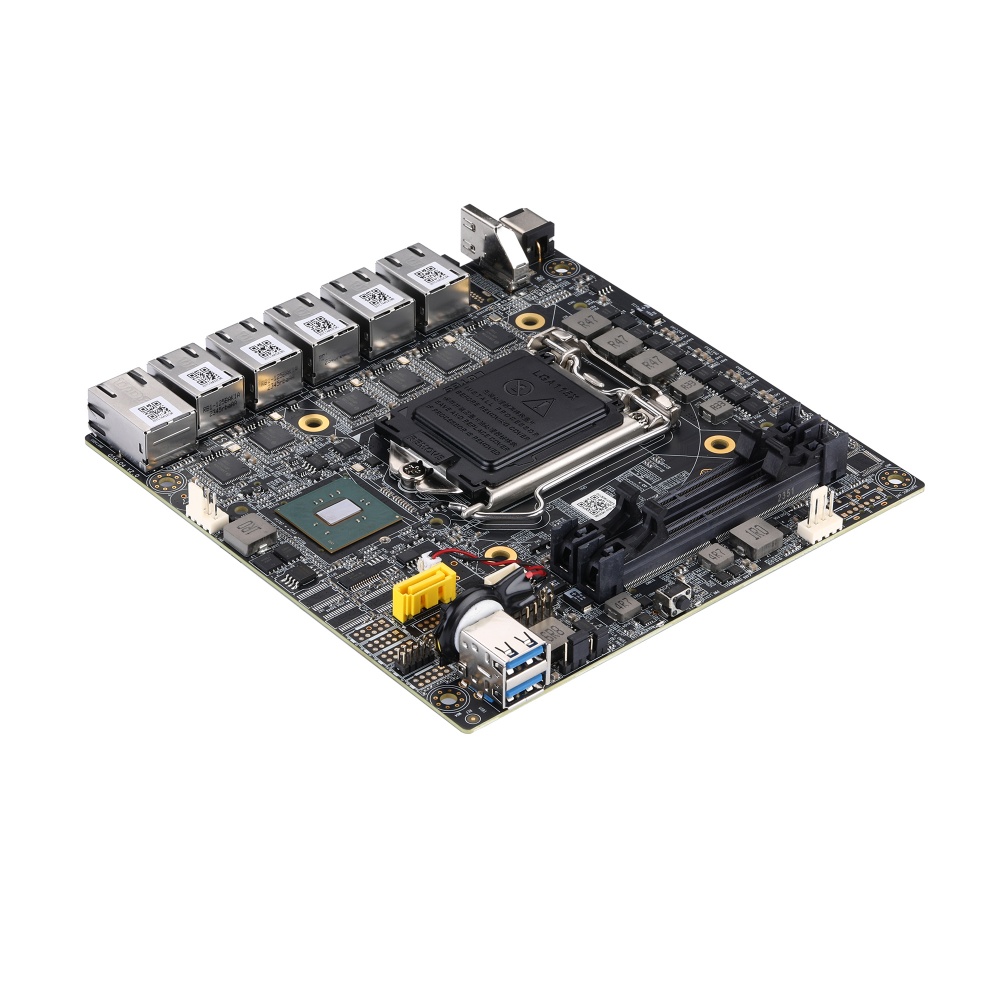

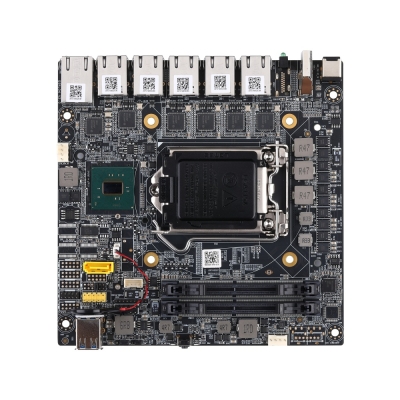

Motherboard MB5S647-0700 Series
Qotom MB5S647-0700 is a compact motherboard for 6th–9th Gen Intel CPUs, features 6 Intel LAN, Mini-PCIe, dual M.2, SATA, ideal for firewall, networking, and industrial applications.
Main Features
Intel 6th Skylake-S Processor
Intel 7th Kabylake-S Processor
Intel 8th Coffee Lake-S Processor
Intel 9th Coffee Lake-R-S Processor
1 × HDMI,
2 × USB 3.0, 1 × SATA 3.0
1 × Mini-PCIe, 2 × M.2
6 × Intel I211-AT/I210-AT Gigabit LAN
| Processor System | |
| Dimension | 155 × 155mm |
| CPU | Intel 6th Skylake-S Processor Intel 7th Kabylake-S Processor Intel 8th Coffee Lake-S Processor Intel 9th Coffee Lake-R-S Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | Intel B150 |
| Expansion Slot | |
| Mini-PCIe | 1 × Mini PCIe, Full-length Mini PCIe for 4G by Default, Half-length Mini PCIe for Wi-Fi |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2133MHz SDRAM |
| Max. | 64GB |
| Socket | 2 × SO-DIMMs |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 0 |
| HDMI | 1 (Support HDMI 1.4a) |
| Multi Display | No |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 6 × Intel I211-AT/I210-AT Gigabit LAN |
| Connector | 6 × RJ-45 |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD |
| Real I/O | |
| DC-IN | 1 |
| HDMI | 1 |
| Ethernet | 6 |
| LED | 1 × Power LED |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 3.0 |
| Audio | No |
| Internal Connector | |
| TPM | 1 (Option) |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm (Option) |
| Serial Port | 0 |
| RS-485 | 0 |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO Header | 1, 2 × 5Pin, Pitch 2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 4.2mm (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | Windows 10, Linux Windows 7 (Only for 6th Gen Skylake) |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and Specifications Information
Quick Order Model: MB5S647-0700
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| - | Skylake | Celeron | G3900 | 2 | 2 | 2.8GHz | / | 2M | Intel HD 510 | 51W |
| - | Skylake | Pentium | G4500 | 2 | 2 | 3.5GHz | / | 3M | Intel HD 530 | 51W |
| - | Skylake | Core i3 | 6100 | 2 | 4 | 3.7GHz | / | 3M | Intel HD 530 | 51W |
| - | Skylake | Core i5 | 6400 | 4 | 4 | 2.7GHz | 3.3GHz | 6M | Intel HD 530 | 65W |
| - | Kaby Lake | Celeron | G3930 | 2 | 2 | 2.9GHz | / | 2M | Intel HD 610 | 51W |
| - | Kaby Lake | Pentium | G4560 | 2 | 4 | 3.5GHz | / | 3M | Intel HD 610 | 54W |
| - | Kaby Lake | Core i3 | 7100 | 2 | 4 | 3.9GHz | / | 3M | Intel HD 630 | 51W |
| - | Kaby Lake | Core i5 | 7500 | 4 | 4 | 3.4GHz | 3.8GHz | 6M | Intel HD 630 | 65W |
| - | Coffee Lake | Celeron | G4900 | 2 | 2 | 3.1GHz | / | 2M | Intel UHD Graphics 610 | 54W |
| - | Coffee Lake | Pentium | G5400 | 2 | 4 | 3.7GHz | / | 4M | Intel UHD Graphics 610 | 58W |
| - | Coffee Lake | Core i3 | 8100 | 4 | 4 | 3.6GHz | / | 6M | Intel UHD Graphics 630 | 65W |
| - | Coffee Lake | Core i5 | 8400 | 6 | 6 | 2.9GHz | 4.1GHz | 9M | Intel UHD Graphics 630 | 65W |
| - | Coffee Lake | Celeron | G4930 | 2 | 2 | 3.2GHz | / | 2M | Intel UHD Graphics 610 | 54W |
| - | Coffee Lake | Pentium | G5420 | 2 | 4 | 3.8GHz | / | 4M | Intel UHD Graphics 610 | 54W |
| - | Coffee Lake | Core i3 | 9100 | 4 | 4 | 3.6GHz | 4.2GHz | 6M | Intel UHD Graphics 630 | 65W |
| - | Coffee Lake | Core i5 | 9400 | 6 | 6 | 2.9GHz | 4.1GHz | 9M | Intel UHD Graphics 630 | 65W |
