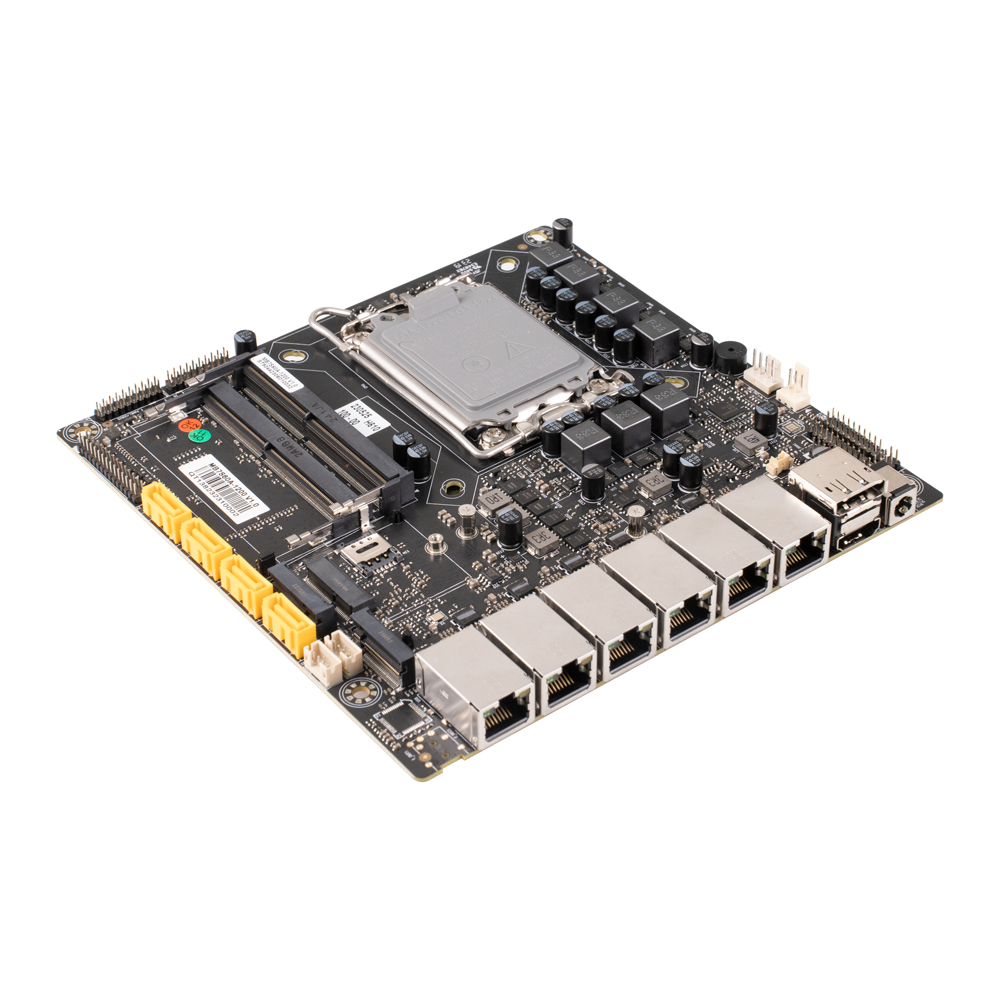

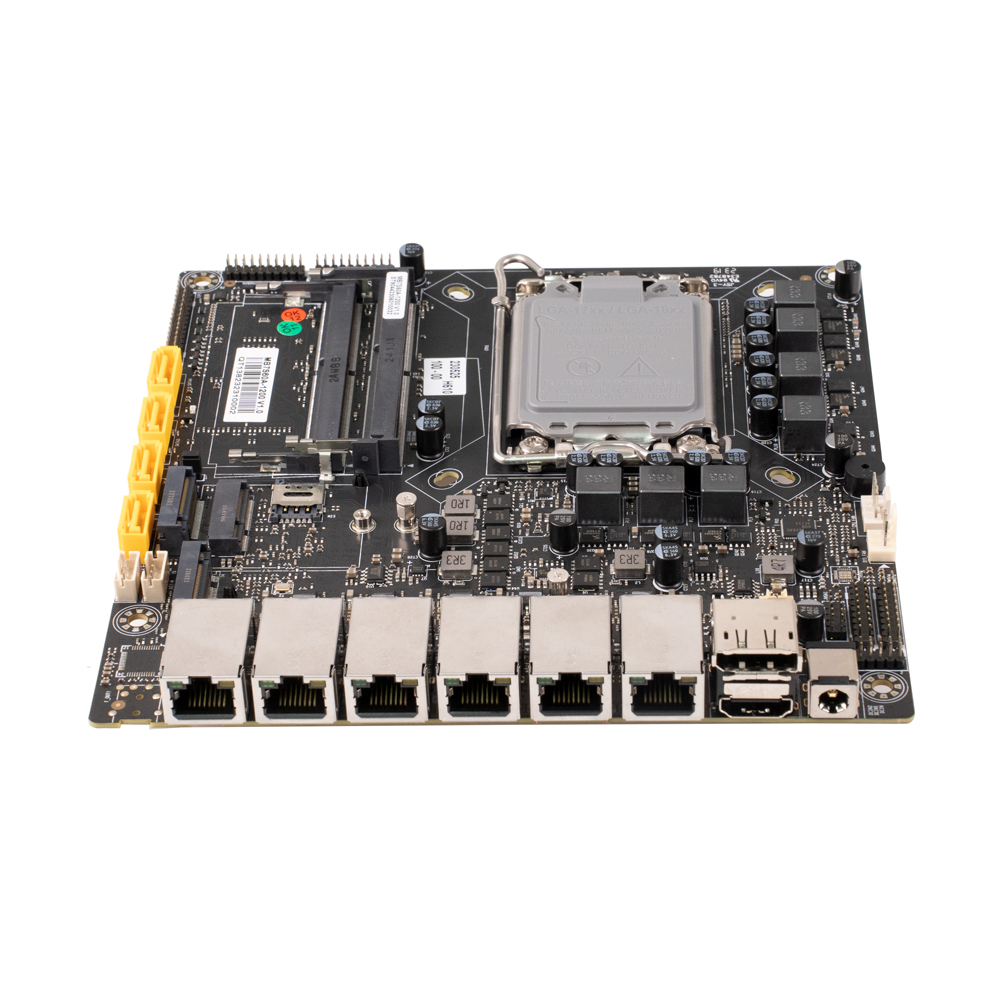

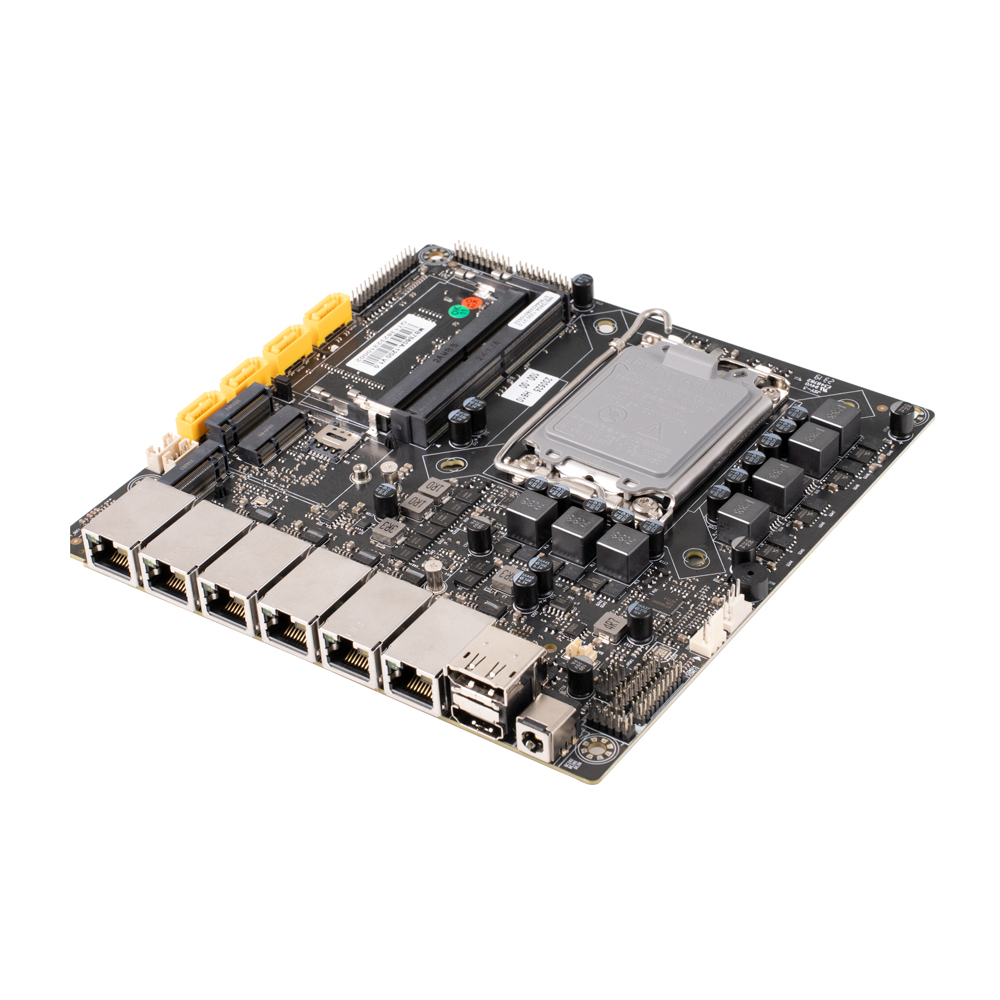

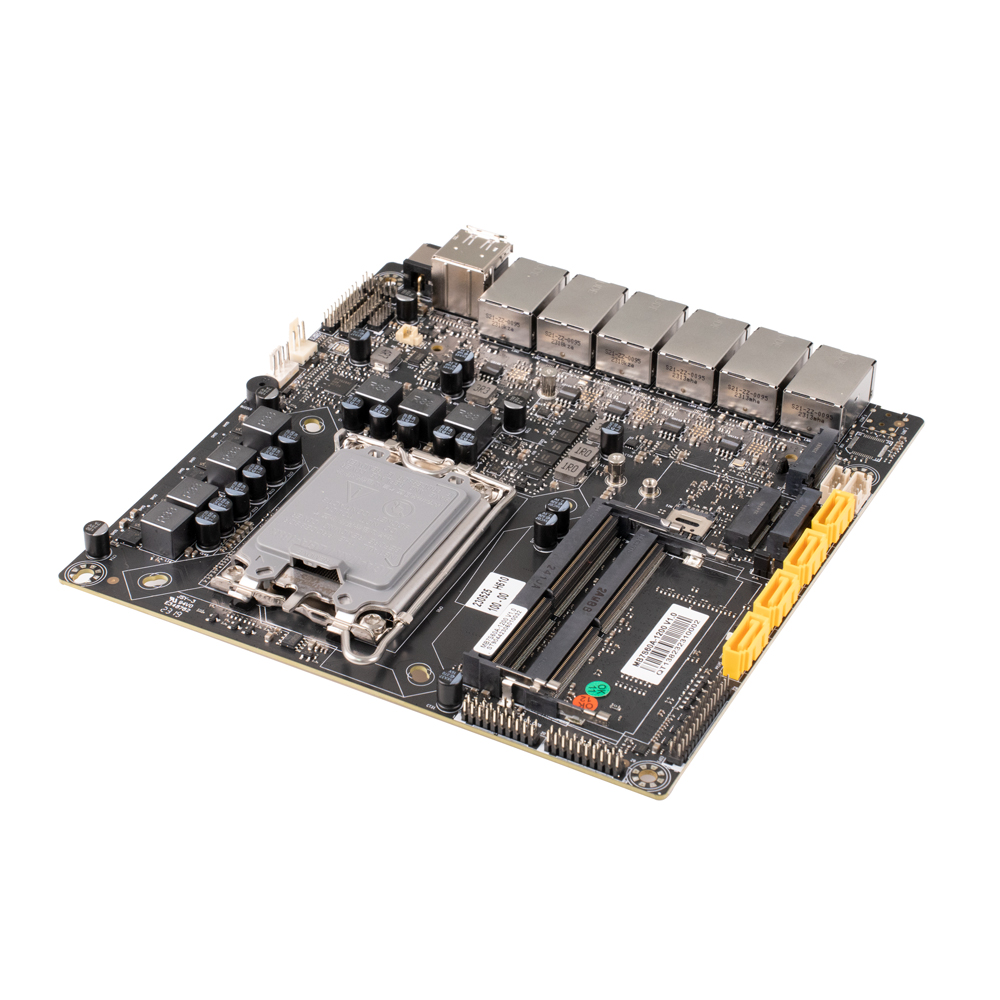

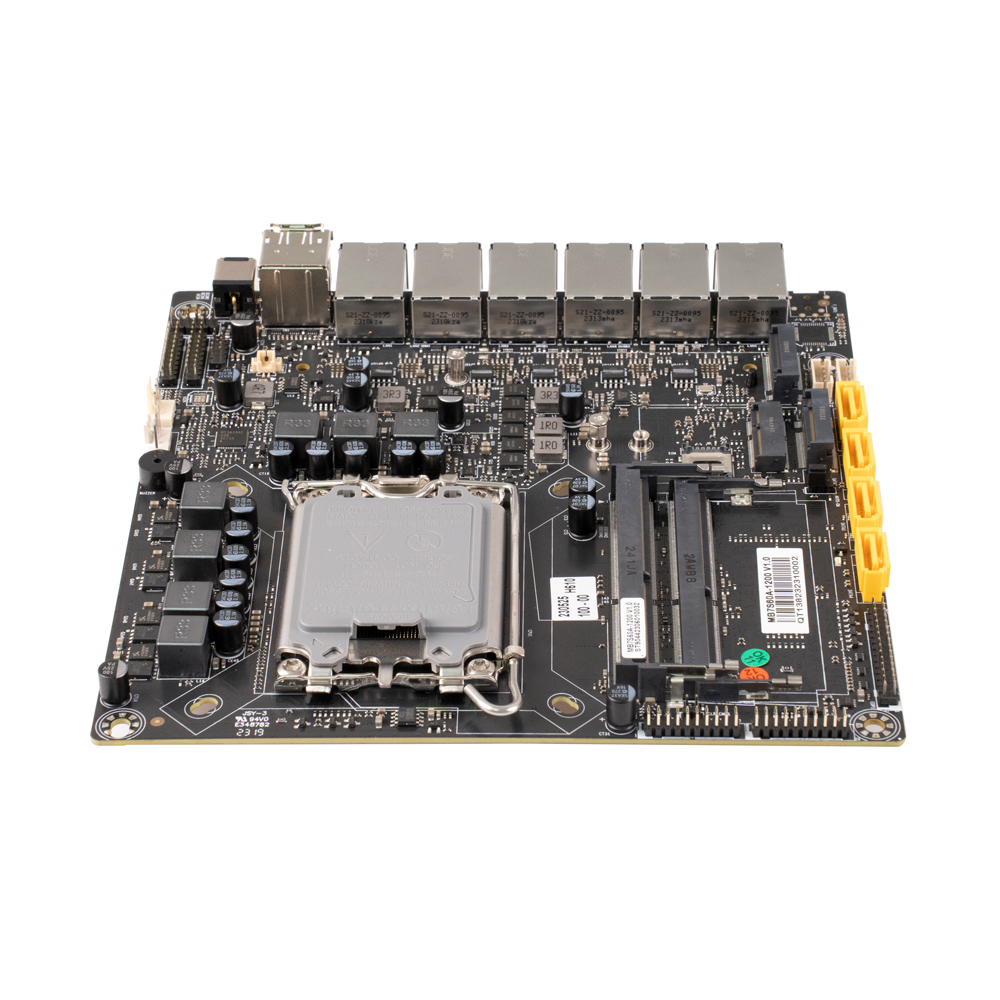

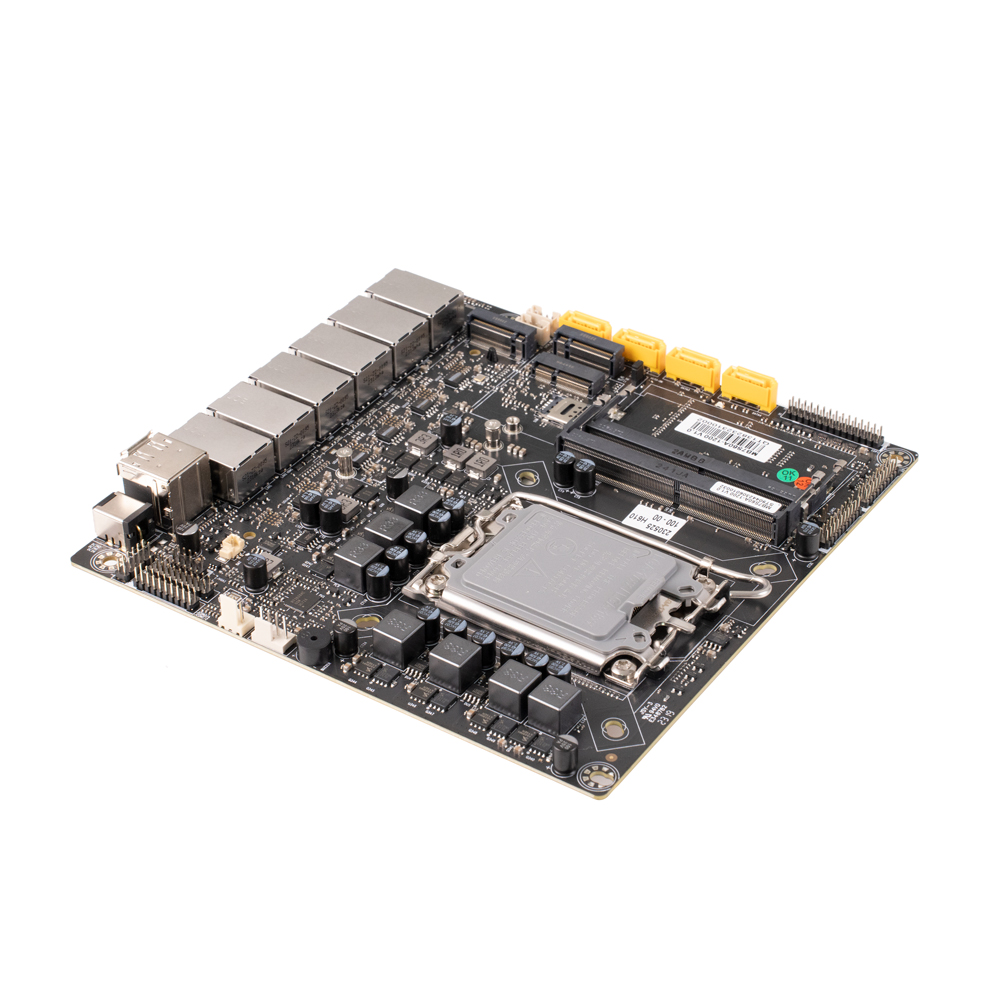

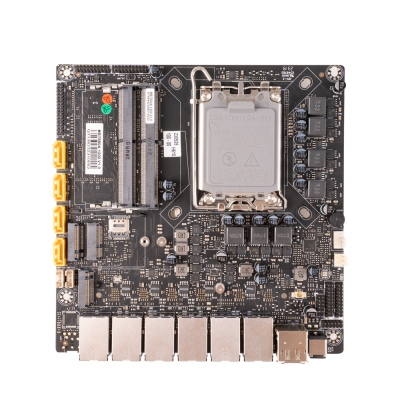

Motherboard MB7S60A-1200 Series
Qotom MB7S60A-1200 mini motherboard with 12th/13th Gen CPUs, dual display, six 2.5G LAN ports, multiple M.2 and SATA slots, ideal for multi-network office applications.
- Total of Network Interfaces
- 6
- SFP(+)
- No
- 10G RJ45
- No
- 2.5G RJ45
- 6
- 1G RJ45
- No
- Serial Ports
- No
Tell us the configuration and quantity you need.
Overview
Main Features
Intel 12th Alder lake -S Processor
Intel 13th Raptor Lake-S Processor
1 × HDMI, 1 × Display Port
2 × USB 2.0
3 × M.2, 4 × SATA 3.0
6 × Intel I225-V/I226-V 2.5 Gigabit LAN
Specifications
| Processor System | |
| Dimension | 170 × 170mm |
| CPU | Intel 12th Alder lake -S Processor Intel 13th Raptor Lake-S Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | Intel H610 |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052), |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2400Mhz SDRAM |
| Max. | 64GB |
| Socket | 2 × SO-DIMMs |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 0 |
| Display Port | 1 |
| HDMI | 1 (Support HDMI 1.4a) |
| EDP | 1 |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000/2500Mbps |
| Controller | 6 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Connector | 6 × RJ-45 |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Real I/O | |
| DC-IN | 1 |
| HDMI | 1 |
| Display Port | 1 |
| Ethernet | 6 |
| USB | 0 |
| Audio | 0 |
| Internal Connector | |
| TPM | 1 (Option) |
| EDP | 1, 2 × 15Pin, Pitch 1.0mm |
| VGA Header | 0 |
| Serial Port | 0 |
| RS-485 | 0 |
| PS/2 | 0 |
| SATA | 4, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 2, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Clear CMOS Jumper | Yes, 1 × 2Pin, Pitch 2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 5.0mm (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V/19V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| Accessories | |
| Accessories | Cable for HDD |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
ItemQuantity
- 1Motherboard1
- 2HDD cable1
- 3Radiator1Option
- 4Fan1Option
- 5Serial cableSeveralDepending on the model
Models & options
Ordering and Specifications Information
Quick Order Model: MB7S60A-1200
| Ordering Code | - | - | - | - | - |
| Code Name | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | G6900 | G7400 | 12100 | 12400 | 12700 |
| Total Cores | 2 | 2 | 4 | 6 | 12 |
| # of Performance-cores | 2 | 2 | 4 | 6 | 8 |
| # of Efficient-cores | 4 | ||||
| # of Threads | 2 | 4 | 8 | 12 | 20 |
| Max Turbo Frequency | 4.30 GHz | 4.40 GHz | 4.80 GHz | ||
| Performance-core Base Frequency | 3.40 GHz | 3.70 GHz | 3.30 GHz | 2.50 GHz | 2.10 GHz |
| Performance-core Max Turbo Frequency | - | - | 4.30 GHz | 4.40 GHz | 4.80 GHz |
| Efficient-core Base Frequency | 1.60 GHz | ||||
| Efficient-core Max Turbo Frequency | 3.60 GHz | ||||
| Cache | 4M | 6M | 12M | 18M | 25M |
| Processor Graphics | Intel UHD Graphics 710 | Intel UHD Graphics 710 | Intel UHD Graphics 730 | Intel UHD Graphics 730 | Intel UHD Graphics 770 |
| TDP | 46W | 46W | 60W-89W | 65W-117W | 65W-180W |
Code NameAlder Lake S
- -
- Alder Lake S
- -
- Alder Lake S
- -
- Alder Lake S
- -
- Alder Lake S
- -
- Alder Lake S
Processor TypeCeleron
- -
- Celeron
- -
- Pentium
- -
- Core i3
- -
- Core i5
- -
- Core i7
Processor NumberG6900
- -
- G6900
- -
- G7400
- -
- 12100
- -
- 12400
- -
- 12700
Total Cores2
- -
- 2
- -
- 2
- -
- 4
- -
- 6
- -
- 12
# of Performance-cores2
- -
- 2
- -
- 2
- -
- 4
- -
- 6
- -
- 8
# of Efficient-cores
- -
- 4
# of Threads2
- -
- 2
- -
- 4
- -
- 8
- -
- 12
- -
- 20
Max Turbo Frequency
- -
- 4.30 GHz
- -
- 4.40 GHz
- -
- 4.80 GHz
Performance-core Base Frequency3.40 GHz
- -
- 3.40 GHz
- -
- 3.70 GHz
- -
- 3.30 GHz
- -
- 2.50 GHz
- -
- 2.10 GHz
Performance-core Max Turbo Frequency-
- -
- -
- -
- -
- -
- 4.30 GHz
- -
- 4.40 GHz
- -
- 4.80 GHz
Efficient-core Base Frequency
- -
- 1.60 GHz
Efficient-core Max Turbo Frequency
- -
- 3.60 GHz
Cache4M
- -
- 4M
- -
- 6M
- -
- 12M
- -
- 18M
- -
- 25M
Processor GraphicsIntel UHD Graphics 710
- -
- Intel UHD Graphics 710
- -
- Intel UHD Graphics 710
- -
- Intel UHD Graphics 730
- -
- Intel UHD Graphics 730
- -
- Intel UHD Graphics 770
TDP46W
- -
- 46W
- -
- 46W
- -
- 60W-89W
- -
- 65W-117W
- -
- 65W-180W
