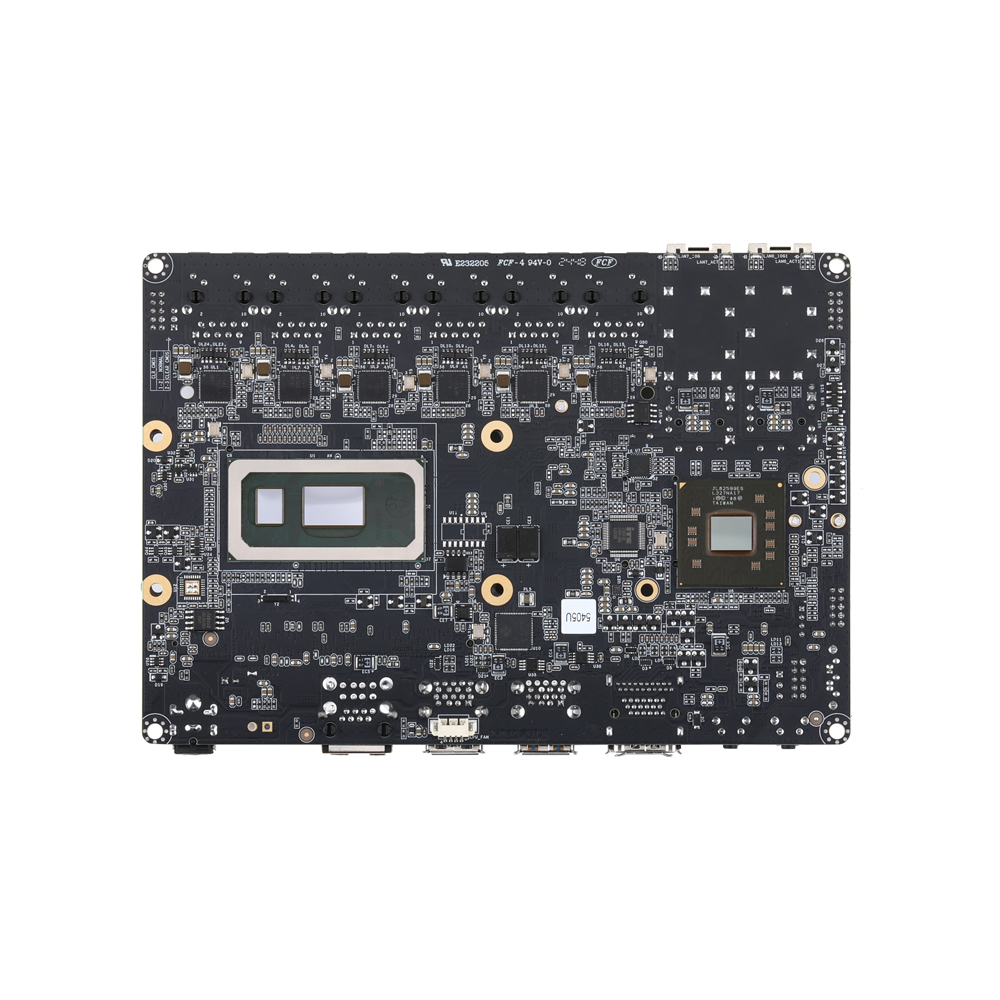

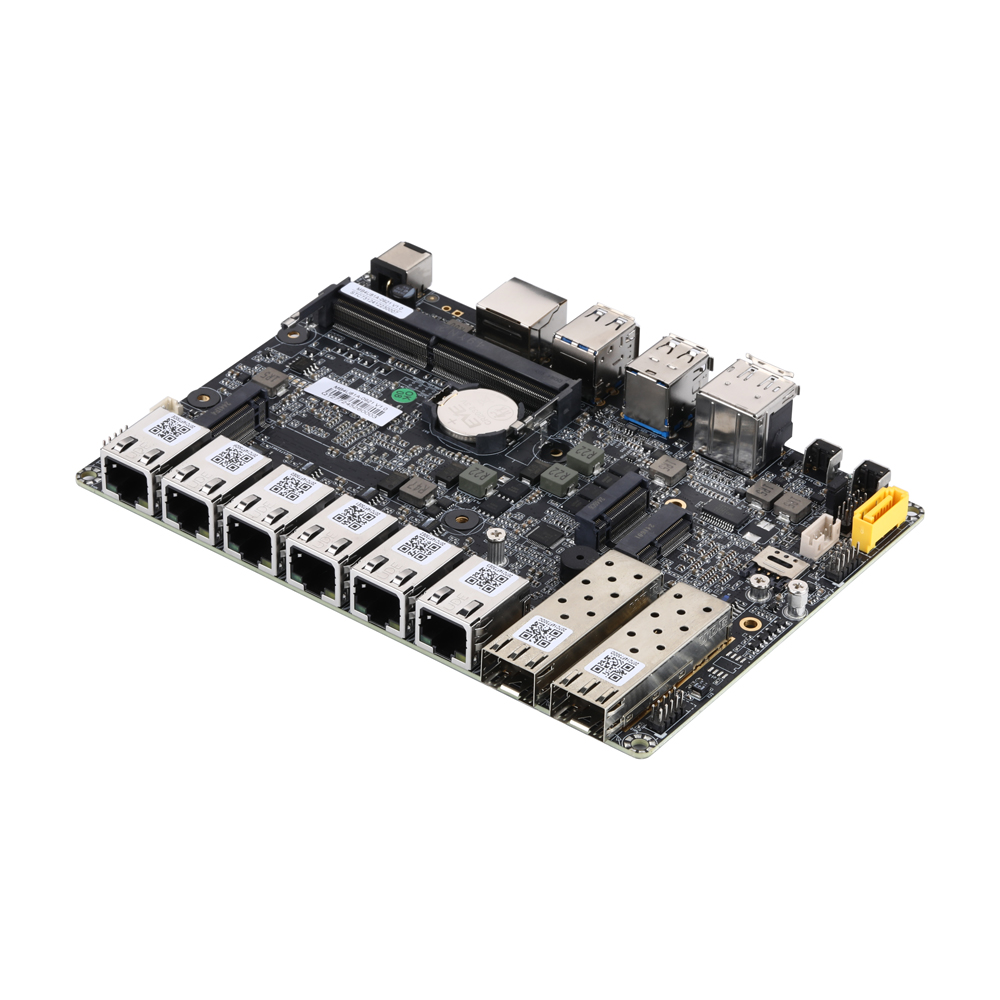

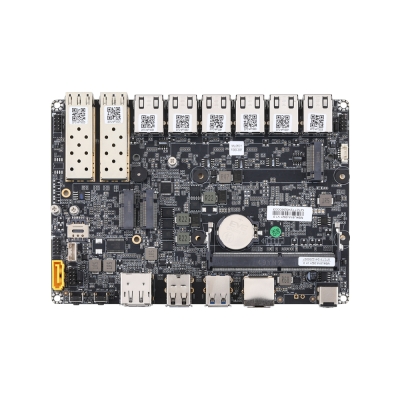

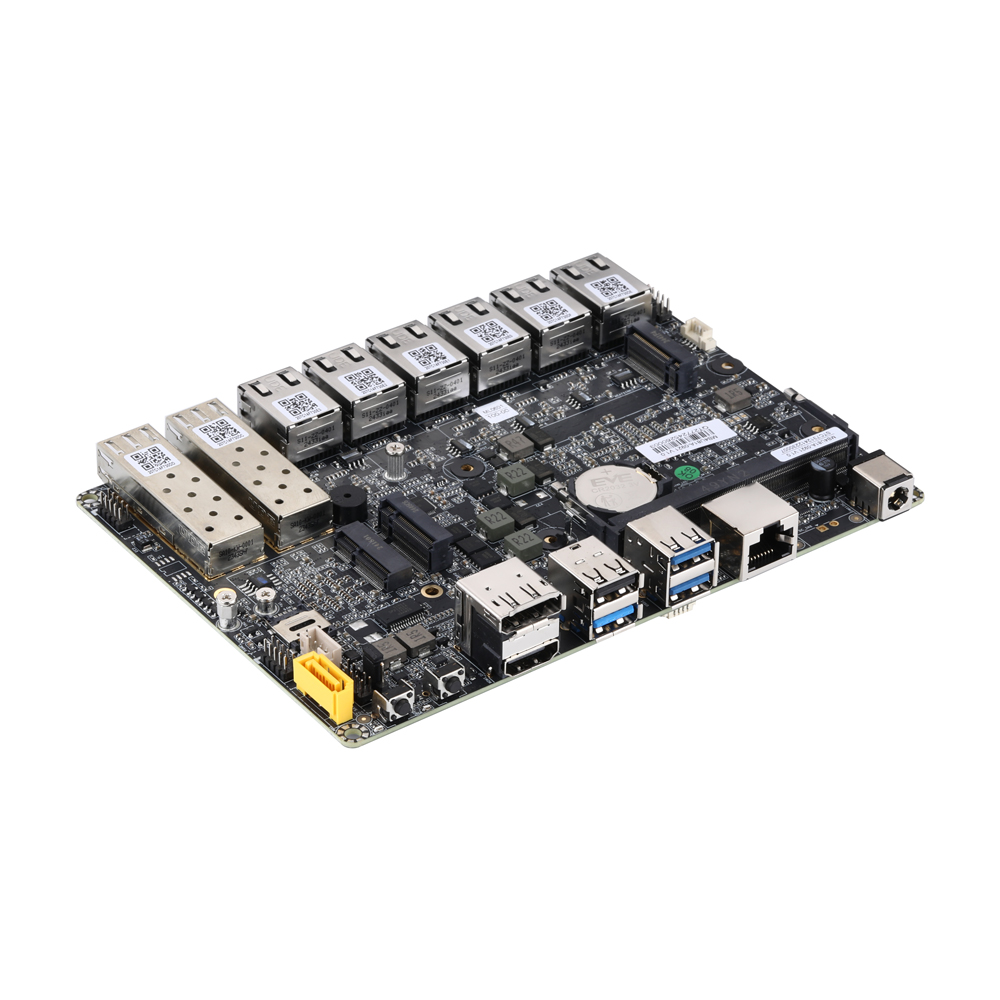

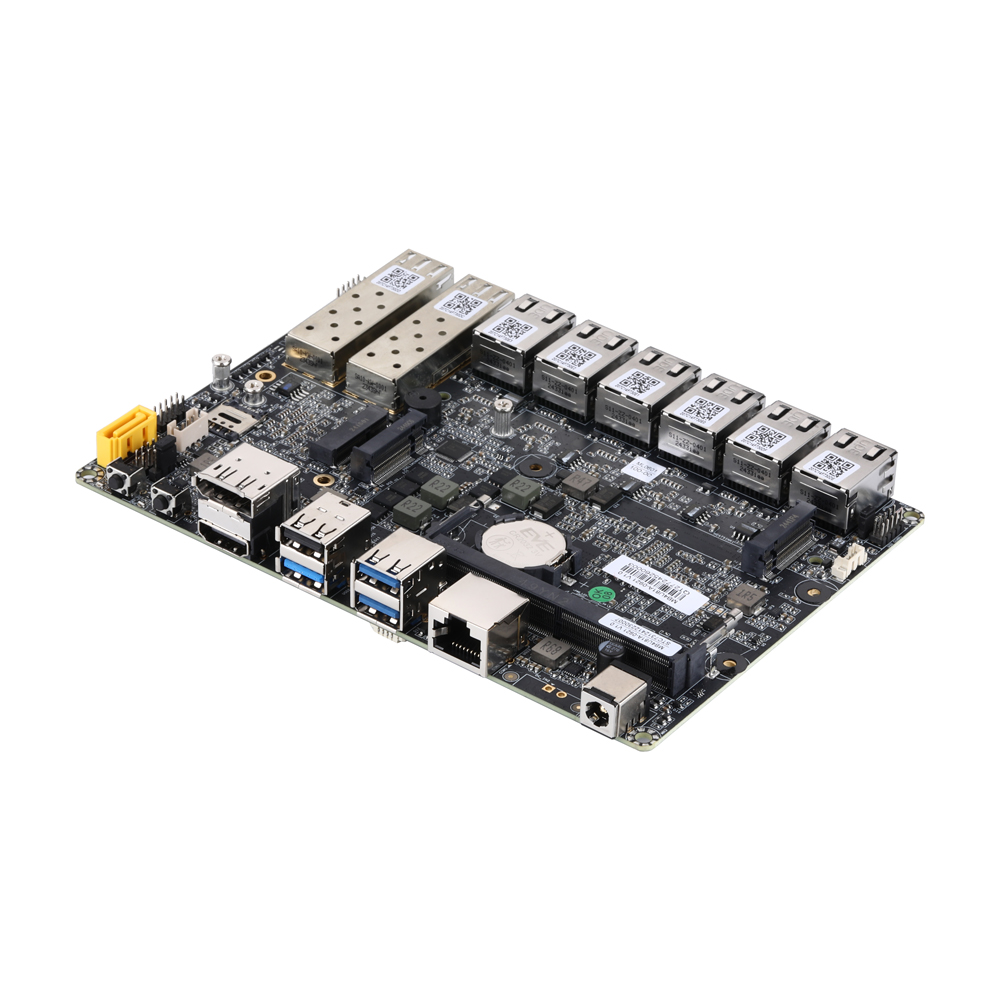

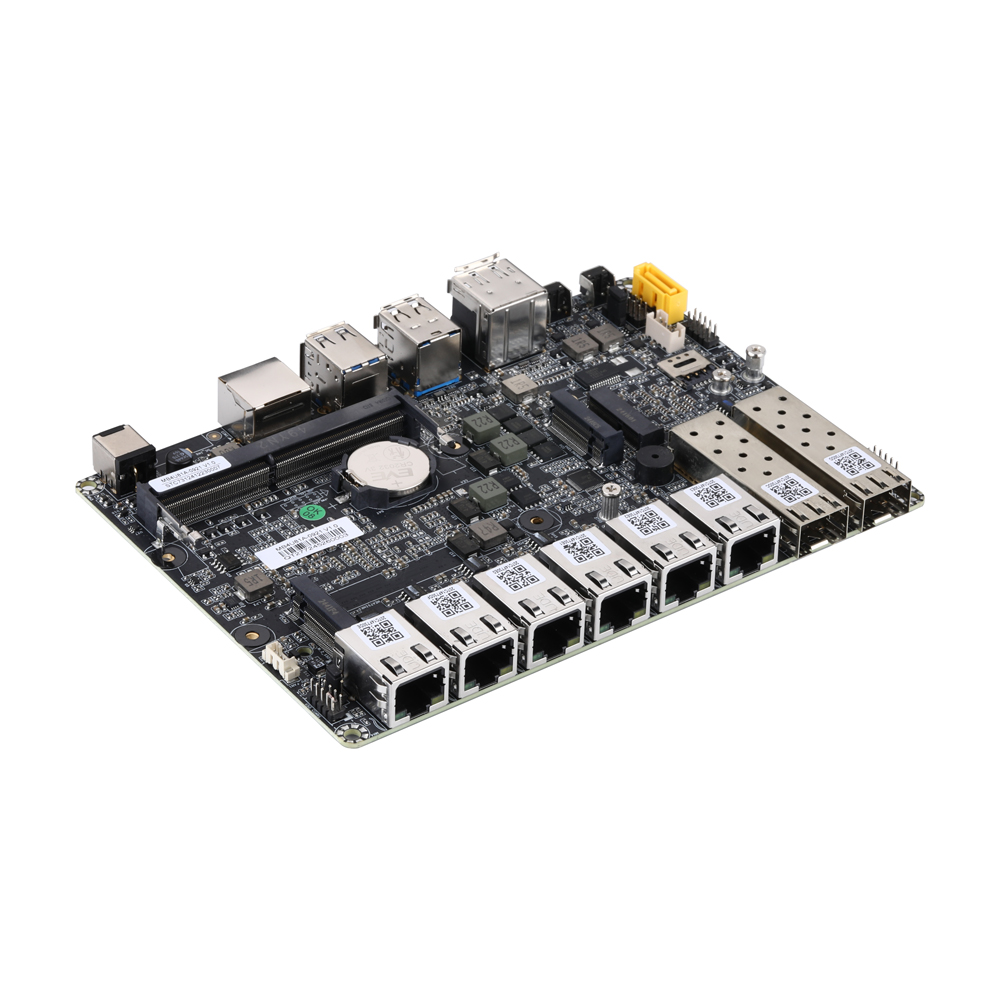

Motherboard MB4U81Y-090U Series
Mini x86 firewall board with 2× Intel X710-BM2 10G SFP+, 6× 2.5G LAN, supports 8th–10th Gen Intel CPUs, 3× M.2, SATA 3.0, ideal for network security and switch/router systems.
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI
3 × USB 3.0, 1 × USB 2.0
3 × M.2, 1 × SATA 3.0
2, Intel X710-BM2 SFP+
6 × Intel I225-V/I226-V 2.5 Gigabit LAN
| Processor System | |
| Dimension | 165 × 115mm |
| CPU | Intel 8th Whiskey Lake-U Processor Intel 8th Coffee Lake-U Processor Intel 10th Comet lake-U Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 1 × M.2 for SSD, (M key, Type: 2280, PCIe 3.0 × 1) 1 × M.2 for 4G/5G, (B key, Type: 3042/3052) 1 × M.2 for WIFI (E key, Type: 2230, (For Core series) |
| Memory | |
| Technology | DDR4 2133/2400MHz SDRAM |
| Max. | 32GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| Display Port | 1 |
| HDMI | 1 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000/2500Mbps, 10Gbps |
| Controller | 6 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Connector | 6 × RJ-45 |
| Connector | 1 × Intel X710-BM2 SFP+ |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD |
| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Display | 1 × Display Port, 1 × HDMI |
| USB | 3 × USB 3.0, 1 × USB 2.0 |
| Serial Port | 1 × Connector,RS-232 (RJ-45) by Default |
| DC-IN | 1 |
| Real I/O | |
| SFP+ | 2 × 10G SFP+ |
| Ethernet | 6 × 2.5G |
| Internal Connector | |
| TPM | 1 (Option) |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| USB 3.0 Header | 2, 2 × 5Pin, Pitch 2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option) |
| CPU FAN Connector | 1, 1 × 4Pin, Pitch PH 1.25mm |
| SYS FAN Connector | 1, 1 × 4Pin, Pitch PH 1.25mm |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and Specifications Information
Quick Order Model: MB4U81Y-095B
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| MB4U81Y-091B | Whiskey Lake | Celeron | 4305U | 2 | 2 | 2.2GHz | / | 2M | Intel UHD Graphics | 15W |
| MB4U81Y-092A | Whiskey Lake | Pentium | 5405U | 2 | 4 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
| MB4U81Y-093A | Whiskey Lake | Core i3 | 8145U | 2 | 4 | 2.1GHz | 3.9GHz | 4M | Intel UHD Graphics | 15W |
| MB4U81Y-095A | Whiskey Lake | Core i5 | 8265U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics | 15W |
| MB4U81Y-097A | Whiskey Lake | Core i7 | 8565U | 4 | 8 | 1.8GHz | 4.6GHz | 8M | Intel UHD Graphics | 15W |
| MB4U81Y-095B | Coffee Lake | Core i5 | 8260U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics 620 | 15W |
| MB4U81Y-101A | Comet Lake | Celeron | 5205U | 2 | 2 | 1.9GHz | / | 2M | Intel UHD Graphics | 15W |
| MB4U81Y-101B | Comet Lake | Celeron | 5305U | 2 | 2 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
| MB4U81Y-102A | Comet Lake | Pentium | 6405U | 2 | 4 | 2.4GHz | / | 2M | Intel UHD Graphics | 15W |
| MB4U81Y-103A | Comet Lake | Core i3 | 10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4M | Intel UHD Graphics | 15W |
| MB4U81Y-105A | Comet Lake | Core i5 | 10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6M | Intel UHD Graphics | 15W |
| MB4U81Y-107A | Comet Lake | Core i7 | 10610U | 4 | 8 | 1.8GHz | 4.9GHz | 8M | Intel UHD Graphics | 15W |
| MB4U81Y-107B | Comet Lake | Core i7 | 10810U | 6 | 12 | 1.1GHz | 4.9GHz | 12M | Intel UHD Graphics | 15W |
| MB4U81Y-107C | Comet Lake | Core i7 | 10710U | 6 | 12 | 1.1GHz | 4.7GHz | 12M | Intel UHD Graphics | 15W |
Custom Options
| Category | Description |
| USB 2.0 | 2 |
