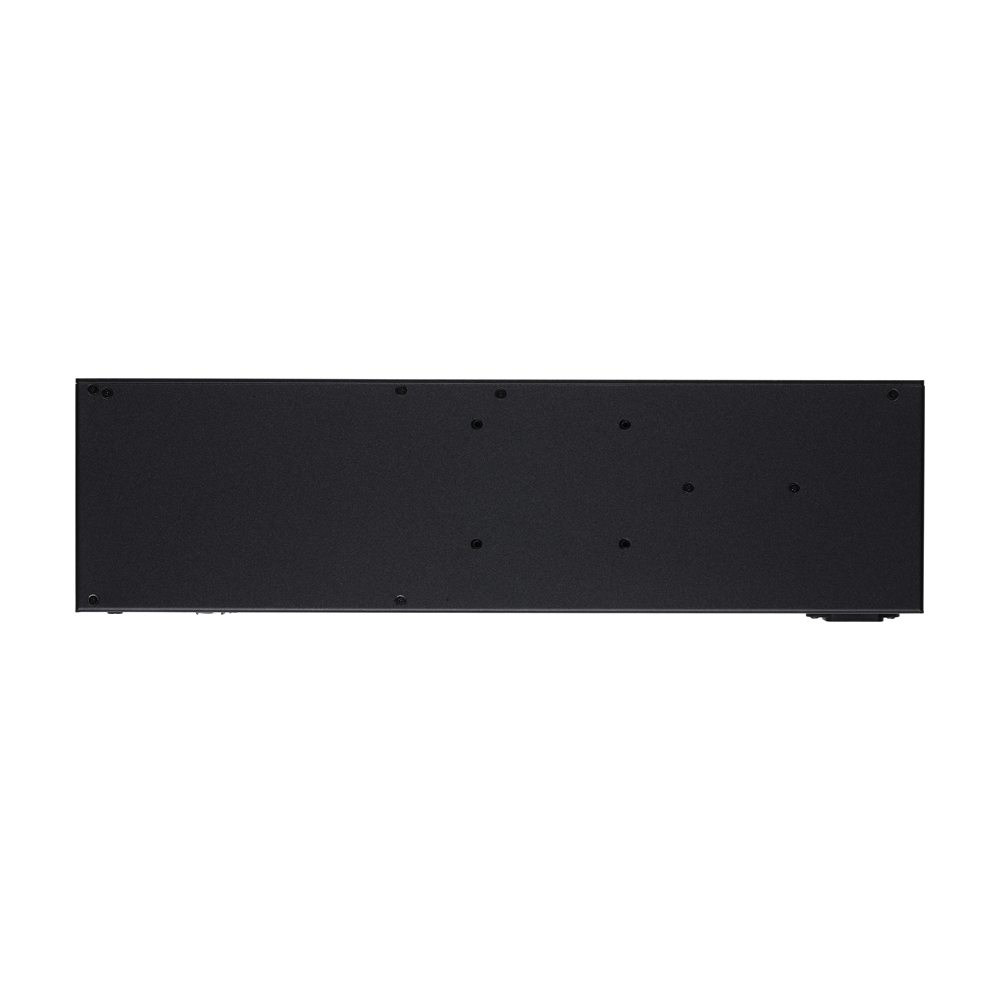

Mini PC Q20300S9 1U11 Series

Integrated processor, 5 Gigabit Intel network cards, Type C, Mini SAS, DDR4 memory, 4x10G SFP+

Total of Network Interfaces: 5
SFP(+): 4
10G RJ45: None
2.5G RJ45: 5
1G RJ45: 4
Serial Ports: 1

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

Intel Denverton Processor
1 × VGA
1 × USB 3.0, 1 × USB 2.0, 1 × Type C (USB 3.0)
2 × M.2 (PCIe 3.0 × 2)
1 × Mini SAS, 2 × SATA 3.0
1 × RS-232 (RJ-45)
4 × 10G SFP(+)
5 × Intel I225-V/I226-V 2.5G LAN

Specifications

Processor System
CPU	Intel Denverton Processor
CPU TDP	By CPU
Memory	2 × DDR4 SO-DIMM Socket (Up to 64G, 2400MHz)
Chipset	By CPU
Graphics	ASPEED AST2400
LAN Chipset	5 × Intel I225-V/I226-V 2.5G LAN 4, Intel X553 SFP(+) (10GbE/1GbE)
Audio	No
Watch Dog	Yes
Front I/O
Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
VGA	1 × DB15
SIM Slot	1 × Nano SIM Slot
Type C	1 × Type C (USB 3.0)
Mini SAS	1 × Mini SAS (SFF8087)
Rear I/O
Power	1 × DC Jack
Serial Port	1 × RS-232 (RJ-45)
USB	1 × USB 3.0, 1 × USB 2.0
LAN	5 × 2.5G LAN
SFP+	4 × 10G SFP(+)
Storage
Type	1 × 2.5-inch HDD/SSD 2 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2)
Expansion
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2)
SIM Card Slot	0
AutoStart Jumper	No
CMOS Clear Jumper	No
GPIO	No
RS-485	0
DC-in	No
Power Requirement
Power Adapter	AC 100-240V by Default
DC Jack	DC 12V (5.5mm, 2.5mm)
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	440 × 127 × 44mm
Weight	1.5kg
Mounting	No
Packaging Dimension	545 × 180 × 90mm
Kensington Lock	No
Cooling Mode	Fanless Design, Fan-assisted Cooling
OS Support
OS	Windows 10, Linux

In the box

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	AC Power Cord	1
3	Screws for SATA SSD/HDD	1
4	SATA cable for SSD/HDD	1	Option
5	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
AC Power Cord
1
3
Screws for SATA SSD/HDD
1
4
SATA cable for SSD/HDD
Option
1
5
Antennas
Option
2

Models & options

Ordering and Specifications Information

Quick Order Model: Q20332G9-1U11

Ordering Code	Case	Code Name	Processor Type	Processor Number	Cores	Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
Q20311G9 Q20311S9	S20	Denverton	Atom	C3338R	2	2	1.80Ghz	2.20Ghz	4M		10.5W
Q20321G9 Q20321S9	S20	Denverton	Atom	C3558R	4	4	2.40Ghz		8M		17W
Q20322G9 Q20322S9	S20	Denverton	Atom	C3558	4	4	2.20Ghz		8M		16W
Q20331G9 Q20331S9	S20	Denverton	Atom	C3758R	8	8	2.40Ghz		16M		26W
Q20332G9 Q20332S9	S20	Denverton	Atom	C3758	8	8	2.2Ghz		16M		25W
Q20342G9 Q20342S9	S20	Denverton	Atom	C3808	12	12	2.00Ghz		12M		25W
Q20352G9 Q20352S9	S20	Denverton	Atom	C3908	16	16	2.00Ghz		16M		31W

Q20311G9
Q20311S9
C3338R

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 2
Threads: 2
Base Frequency: 1.80Ghz
Max Turbo Frequency: 2.20Ghz
Cache: 4M
TDP: 10.5W

Q20321G9
Q20321S9
C3558R

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 4
Threads: 4
Base Frequency: 2.40Ghz
Cache: 8M
TDP: 17W

Q20322G9
Q20322S9
C3558

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 4
Threads: 4
Base Frequency: 2.20Ghz
Cache: 8M
TDP: 16W

Q20331G9
Q20331S9
C3758R

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 8
Threads: 8
Base Frequency: 2.40Ghz
Cache: 16M
TDP: 26W

Q20332G9
Q20332S9
C3758

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 8
Threads: 8
Base Frequency: 2.2Ghz
Cache: 16M
TDP: 25W

Q20342G9
Q20342S9
C3808

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 12
Threads: 12
Base Frequency: 2.00Ghz
Cache: 12M
TDP: 25W

Q20352G9
Q20352S9
C3908

Case: S20
Code Name: Denverton
Processor Type: Atom
Cores: 16
Threads: 16
Base Frequency: 2.00Ghz
Cache: 16M
TDP: 31W

Functional Differences

Ordering Code	Memory Channels	SFP+ 10G	SFP 1G (2.5G)	M.2 M Key (PCIe 3.0 × 2)	M.2 M Key (PCIe 3.0 × 1)	RJ-45	VGA	SATA 3.0	5G	Mini SAS	USB 3.0	Type C
Q20311G9 Q20311S9	1	-	4	-	2	5	1	1	1	-	USB2.0	USB2.0
Q20321G9 Q20321S9	2	2	2	2	-	5	1	2	1	1	1	USB3.0
Q20322G9 Q20322S9	2	2	2	2	-	5	1	1	1	-	USB2.0	USB2.0
Q20331G9 Q20331S9	2	4	-	2	-	5	1	2	1	1	1	USB3.0
Q20332G9 Q20332S9	2	4	-	2	-	5	1	2	1	1	1	USB3.0
Q20342G9 Q20342S9	2	4	-	2	-	5	1	2	1	1	1	USB3.0
Q20352G9 Q20352S9	2	4	-	2	-	5	1	2	1	1	1	USB3.0

Q20311G9
Q20311S9
1

Memory Channels: 1
SFP+ 10G: -
SFP 1G (2.5G): 4
M.2 M Key (PCIe 3.0 × 2): -
M.2 M Key (PCIe 3.0 × 1): 2
RJ-45: 5
VGA: 1
SATA 3.0: 1
5G: 1
Mini SAS: -
USB 3.0: USB2.0
Type C: USB2.0

Q20321G9
Q20321S9
2

Memory Channels: 2
SFP+ 10G: 2
SFP 1G (2.5G): 2
M.2 M Key (PCIe 3.0 × 2): 2
M.2 M Key (PCIe 3.0 × 1): -
RJ-45: 5
VGA: 1
SATA 3.0: 2
5G: 1
Mini SAS: 1
USB 3.0: 1
Type C: USB3.0

Q20322G9
Q20322S9
2

Memory Channels: 2
SFP+ 10G: 2
SFP 1G (2.5G): 2
M.2 M Key (PCIe 3.0 × 2): 2
M.2 M Key (PCIe 3.0 × 1): -
RJ-45: 5
VGA: 1
SATA 3.0: 1
5G: 1
Mini SAS: -
USB 3.0: USB2.0
Type C: USB2.0

Q20331G9
Q20331S9
2

Memory Channels: 2
SFP+ 10G: 4
SFP 1G (2.5G): -
M.2 M Key (PCIe 3.0 × 2): 2
M.2 M Key (PCIe 3.0 × 1): -
RJ-45: 5
VGA: 1
SATA 3.0: 2
5G: 1
Mini SAS: 1
USB 3.0: 1
Type C: USB3.0

Q20332G9
Q20332S9
2

Memory Channels: 2
SFP+ 10G: 4
SFP 1G (2.5G): -
M.2 M Key (PCIe 3.0 × 2): 2
M.2 M Key (PCIe 3.0 × 1): -
RJ-45: 5
VGA: 1
SATA 3.0: 2
5G: 1
Mini SAS: 1
USB 3.0: 1
Type C: USB3.0

Q20342G9
Q20342S9
2

Memory Channels: 2
SFP+ 10G: 4
SFP 1G (2.5G): -
M.2 M Key (PCIe 3.0 × 2): 2
M.2 M Key (PCIe 3.0 × 1): -
RJ-45: 5
VGA: 1
SATA 3.0: 2
5G: 1
Mini SAS: 1
USB 3.0: 1
Type C: USB3.0

Q20352G9
Q20352S9
2

Memory Channels: 2
SFP+ 10G: 4
SFP 1G (2.5G): -
M.2 M Key (PCIe 3.0 × 2): 2
M.2 M Key (PCIe 3.0 × 1): -
RJ-45: 5
VGA: 1
SATA 3.0: 2
5G: 1
Mini SAS: 1
USB 3.0: 1
Type C: USB3.0

PC Case Options

Category	SATA Support
S10	Yes
S20	Yes
1U11	Yes

Custom Options

Category	Description
USB 2.0	4

Q20300G9 Q20311G9 Q20321G9 Q20322G9 Q20331G9 Q20332G9 Q20342G9 Q20351G9 Q20352G9 Q20311S9 Q20321S9 Q20322S9 Q20331S9 Q20332S9 Q20342S9 Q20351S9 Q20352S9 Intel Denverton ATOM C3338R C3558 C3558R C3758 C3758R C3808 C3908 C3958
