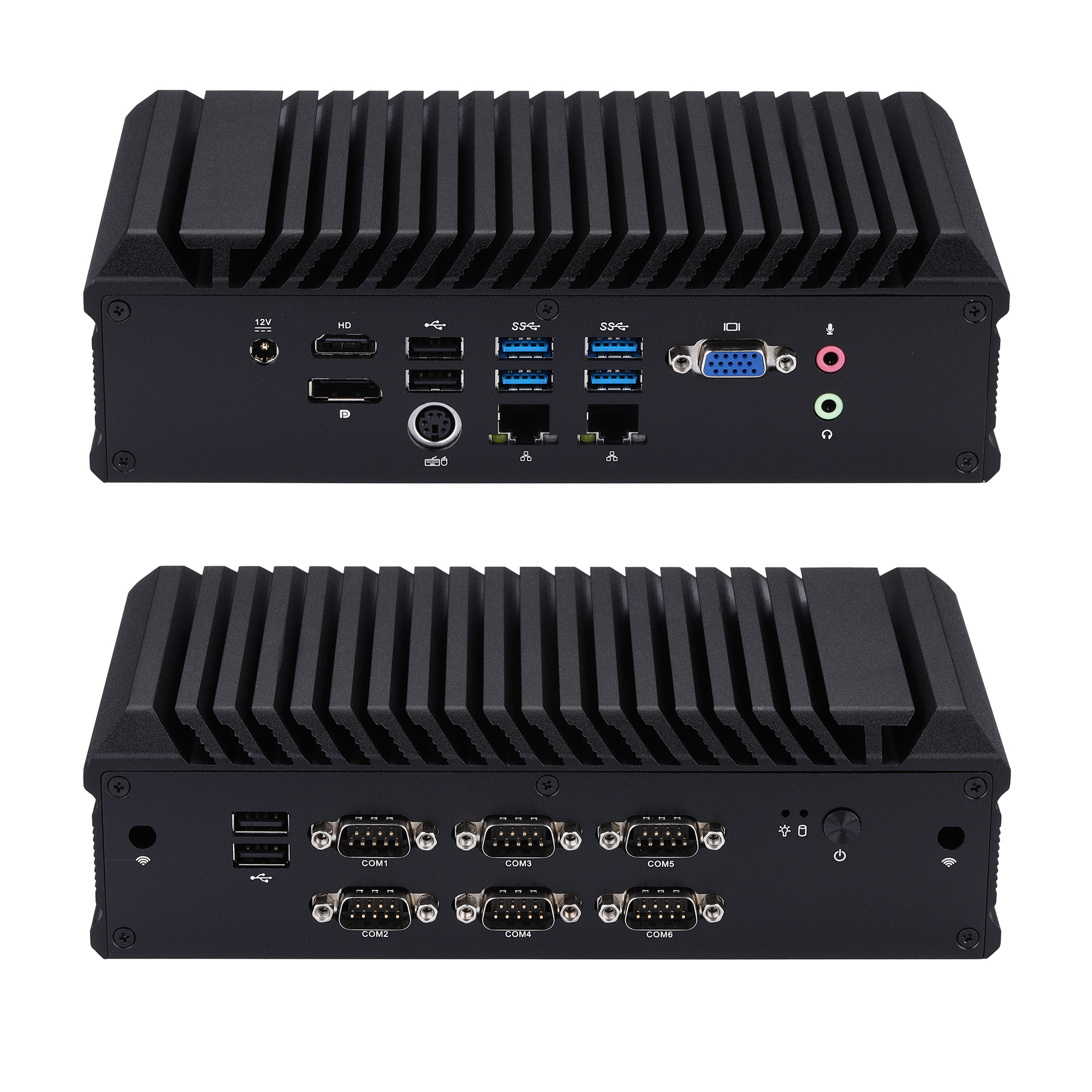

Mini PC Q30900X S20 Series

Integrated 10th generation low-power Intel Core processor i3-10110U, dual 2.5G Intel network card, DP+HDMI+VGA triple display, DDR4 memory, M.2 NVME, SATA3.0, up to 6 serial ports, 8 USB, 2 RS485 inte

NIC
2
USB
4 × USB 3.0, 4 × USB 2.0
RS-232
6 × RS-232
RS-485
COM1/2 Can Be Set Up As RS-485
VGA
Yes
PS/2
Yes
GPIO
Yes
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

  • Intel 8th Whiskey Lake-U Processor

  • Intel 8th Coffee Lake-U Processor

  • Intel 10th Comet lake-U Processor

  • 1 × Display Port, 1 × HDMI, 1 × VGA

  • 4 × USB 3.0, 4 × USB 2.0

  • 2 × M.2, 1 × Mini PCIe, 1 × SATA 3.0

  • 6 × RS-232, 1 × PS/2

  • 2 × Intel I225-V/I226-V 2.5 Gigabit LAN

SPECIFICATION

Processor System
CPUIntel 8thWhiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Intel I225-V/I226-V 2.5 Gigabit LAN
AudioRealtek HD Audio
Watch DogYes
Front I/O
Power Button1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 2.0 (Not for 5405U)
Serial Port6 × RS-232 (COM1/2 can be set up as RS-485,
Support 5V/12V)
Rear I/O
Power1 × DC Jack
Video Output1 × Display Port, 1 × HDMI, 1 × VGA
LAN2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB4 × USB 3.0, 2 × USB 2.0
Audio1 × Mic-in, 1 × Line-out
PS/21 × PS/2 (Mouse or Keyboard)
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280)
Expansion
Mini PCIe1 × Mini PCIe
Full-length for 4G, Half-length for Wi-Fi
M.21 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4852
DC-inNo
Power Requirement
Power Adapter12V3A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension221 × 121 × 62mm
Weight1.40kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 10, Linux

PACKING

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

ORDERING

Ordering and Specifications Information

Quick Order Model: Q1012X-S20

Ordering CodeCaseCode NameProcessor TypeProcessor NumberCoresThreadsBase FrequencyMax Turbo FrequencyCacheProcessor GraphicsTDP

Q1012X

Q30912X

S20Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W

Q1020X

Q30921X

S20Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W

Q1030X

Q30931X

S20Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W

Q1051X

Q30951X

S20Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W

Q1070X

Q30971X

S20Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W

Q1052X

Q30952X

S20Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W

Q1015X

Q31011X

S20Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W

Q1016X

Q31012X

S20Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W

Q1025X

Q31021X

S20Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W

Q1035X

Q31031X

S20Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W

Q1055X

Q31051X

S20Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W

Q1075X

Q31071X

S20Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W

Q1076X

Q31072X

S20Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W

Q1077X

Q31073X

S20Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W

Q1012X

Q30912X

4305U
Case
S20
Code Name
Whiskey Lake
Processor Type
Celeron
Cores
2
Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1020X

Q30921X

5405U
Case
S20
Code Name
Whiskey Lake
Processor Type
Pentium
Cores
2
Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1030X

Q30931X

8145U
Case
S20
Code Name
Whiskey Lake
Processor Type
Core i3
Cores
2
Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
3.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1051X

Q30951X

8265U
Case
S20
Code Name
Whiskey Lake
Processor Type
Core i5
Cores
4
Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1070X

Q30971X

8565U
Case
S20
Code Name
Whiskey Lake
Processor Type
Core i7
Cores
4
Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.6GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1052X

Q30952X

8260U
Case
S20
Code Name
Coffee Lake
Processor Type
Core i5
Cores
4
Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 620
TDP
15W

Q1015X

Q31011X

5205U
Case
S20
Code Name
Comet Lake
Processor Type
Celeron
Cores
2
Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1016X

Q31012X

5305U
Case
S20
Code Name
Comet Lake
Processor Type
Celeron
Cores
2
Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1025X

Q31021X

6405U
Case
S20
Code Name
Comet Lake
Processor Type
Pentium
Cores
2
Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1035X

Q31031X

10110U
Case
S20
Code Name
Comet Lake
Processor Type
Core i3
Cores
2
Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
4.1GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1055X

Q31051X

10210U
Case
S20
Code Name
Comet Lake
Processor Type
Core i5
Cores
4
Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1075X

Q31071X

10610U
Case
S20
Code Name
Comet Lake
Processor Type
Core i7
Cores
4
Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.9GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1076X

Q31072X

10810U
Case
S20
Code Name
Comet Lake
Processor Type
Core i7
Cores
6
Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.9GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1077X

Q31073X

10710U
Case
S20
Code Name
Comet Lake
Processor Type
Core i7
Cores
6
Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

PC Case Options

CategorySATA Support
S20Yes
S10Yes

Custom Options

CategoryDescription
GPIO1
RS-4852
