Mini PC Q400P S08 Series
Featuring Intel 4th/5th Gen CPUs, dual HDMI, 4 COM ports, dual LAN, and flexible expansion, this mini PC is ideal for industrial automation, POS, and embedded control applications.
- NIC
- 2 × Realtek Gigabit LAN
- USB
- 4 × USB 3.0, 2 × USB 2.0
- RS-232
- 4 × RS-232
- RS-485
- None
- VGA
- None
- PS/2
- None
- GPIO
- Yes
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel 4th Haswell –U/Y Processor
Intel 5th Broadwell-U Processor
2 × HDMI, 4 × RS-232
4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
2 × Mini PCIe, 1 × mSATA
2 × Realtek Gigabit LAN
SPECIFICATION
| Processor System | |
| CPU | Intel 4thHaswell –U/Y Processor Intel 5thBroadwell-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

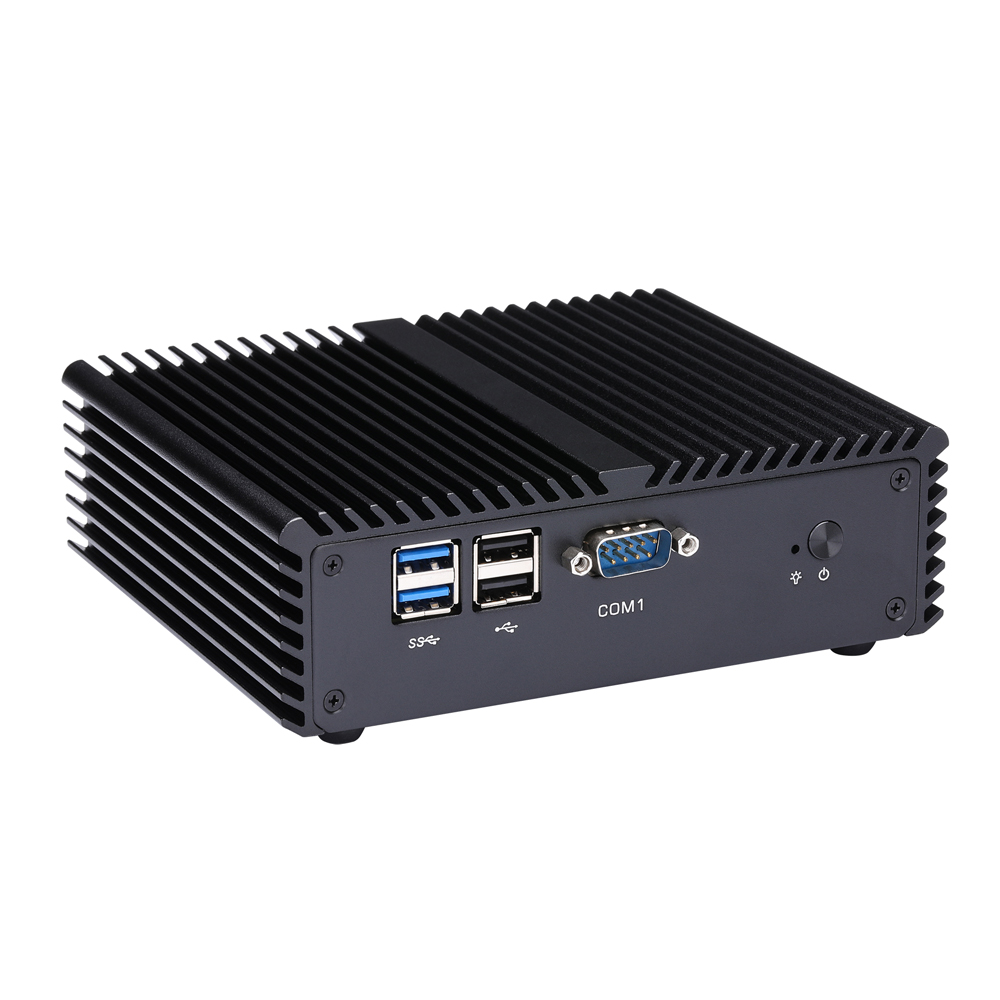

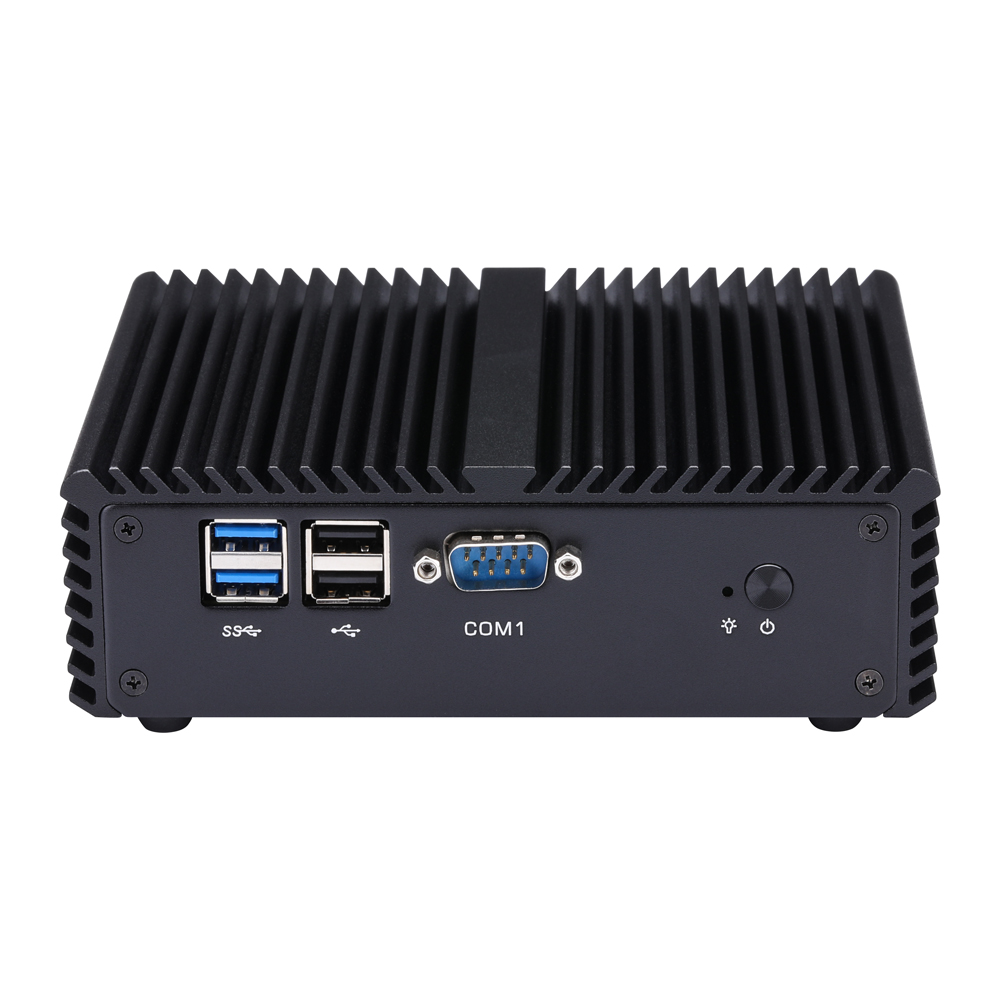

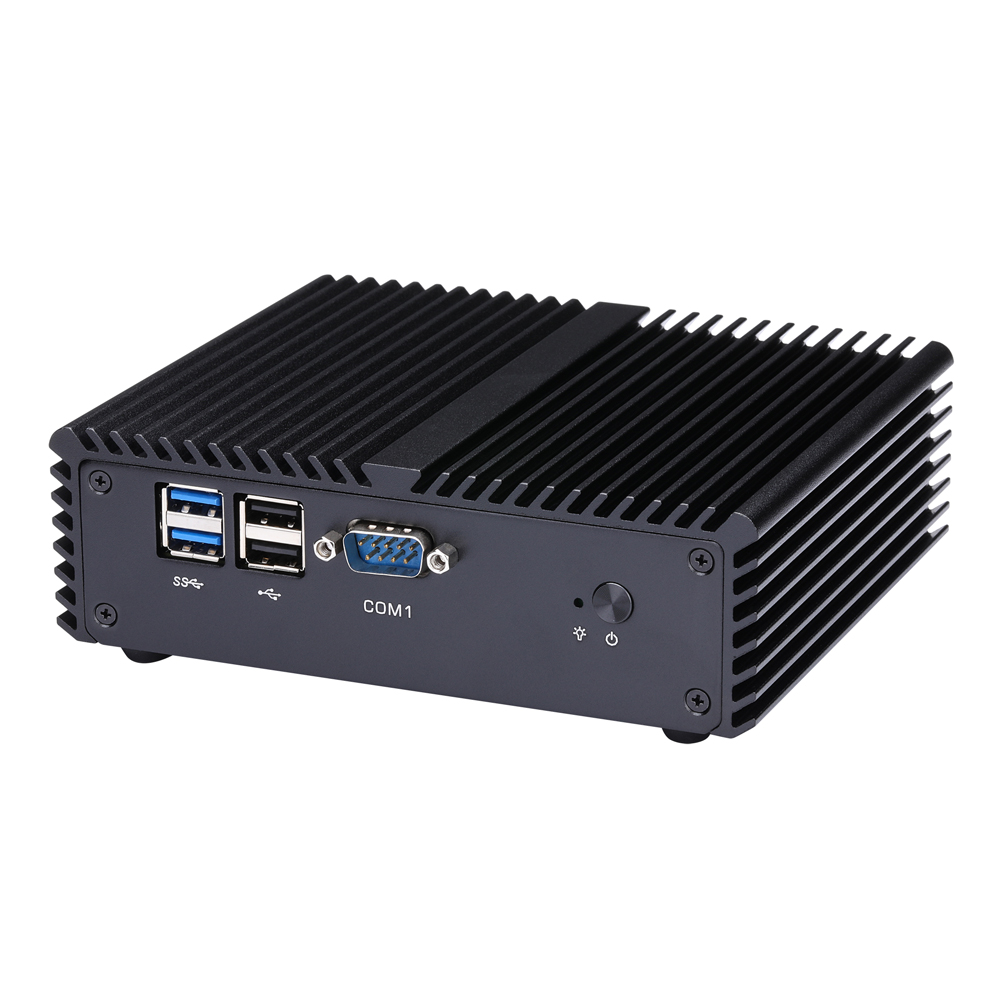

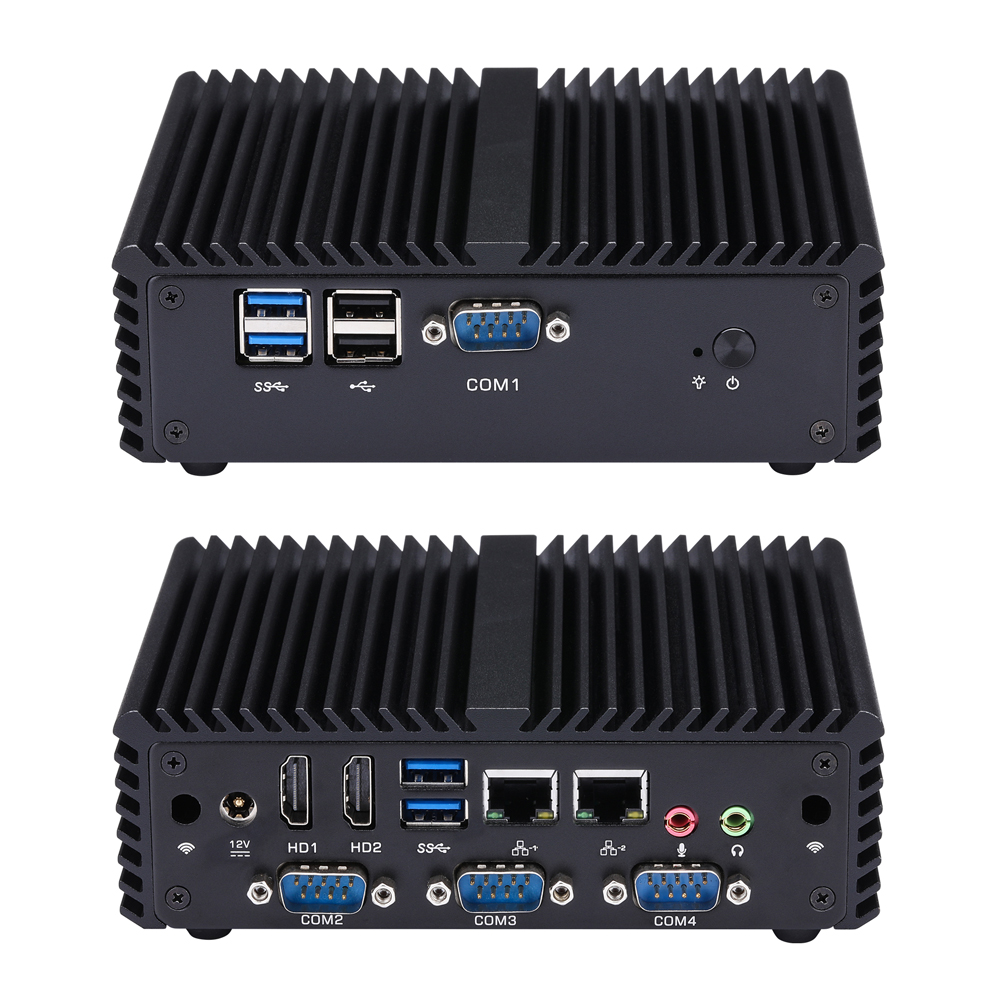

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Serial Port | 1 × RS-232 |

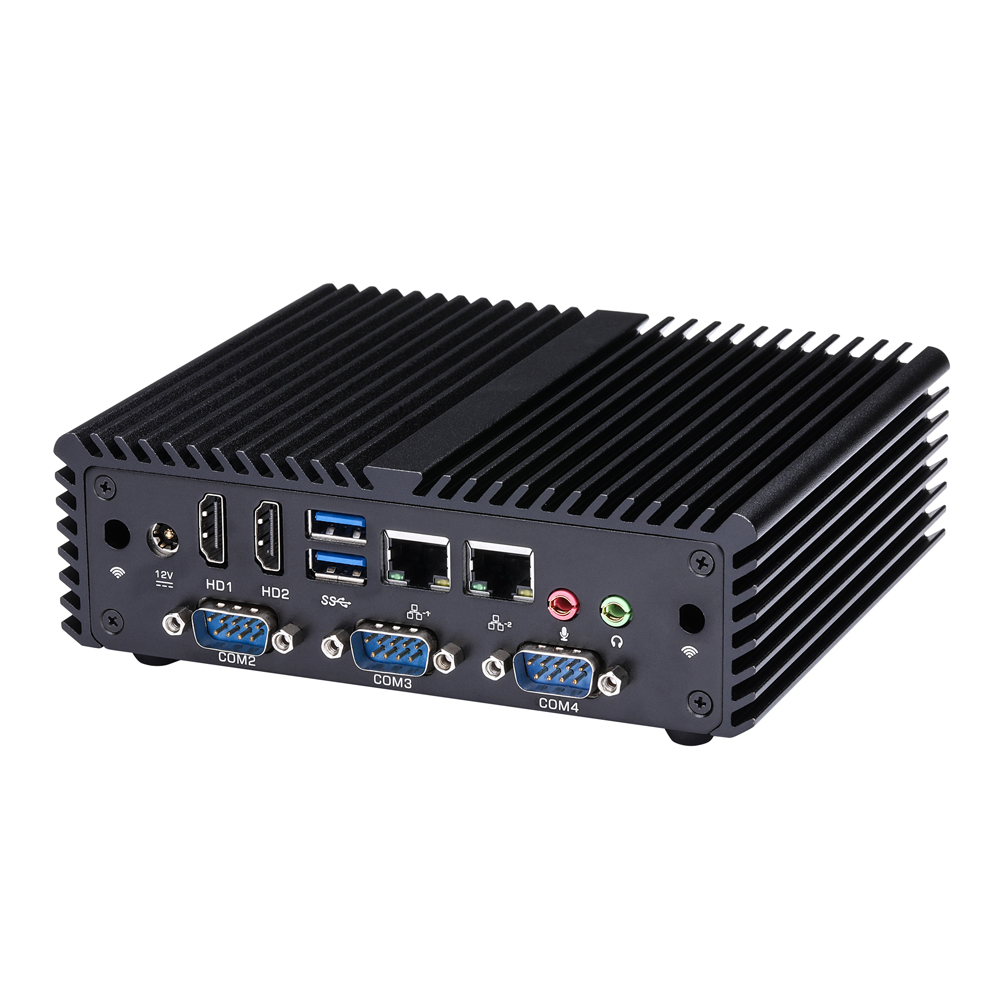

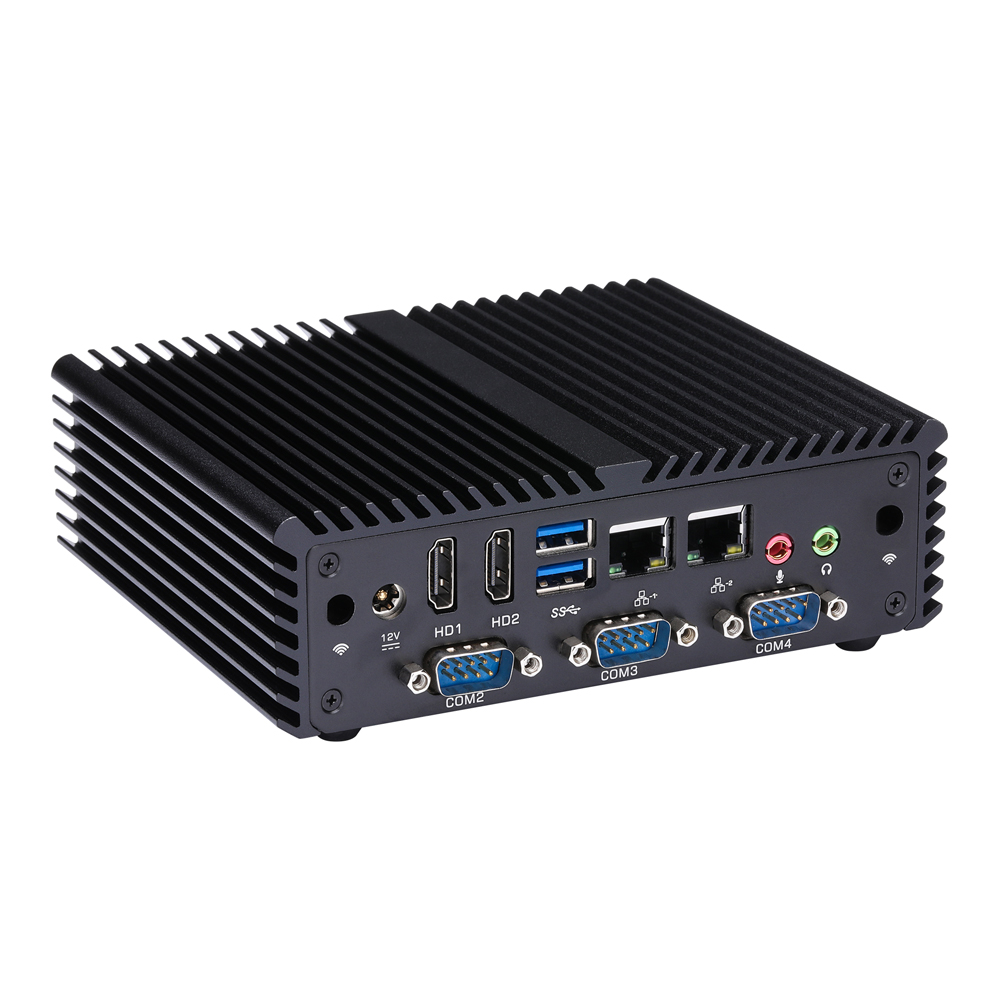

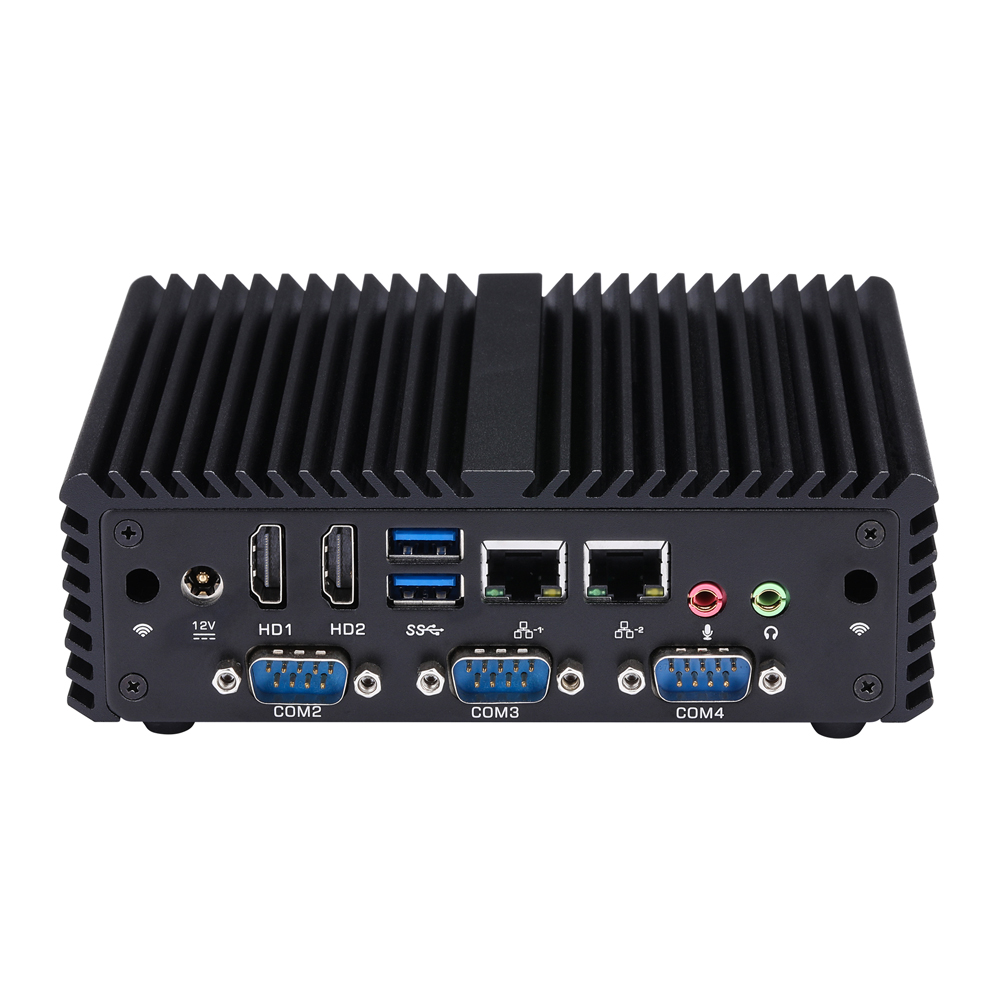

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 2 × USB 3.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 3 × RS-232 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Mini PCIe, Full-length for SSD |
| Mini PCIe | 1 × Mini PCIe, Half-length for Wi-Fi |
| Mini PCIe | 1 × Mini PCIe, Full-length for 4G |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V4A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.95kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q435P-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q401P | S08 | Haswell | Celeron | 2955U | 2 | 2 | 1.4GHz | / | 2M | Intel HD Graphics | 15W |
| Q430P | S08 | Haswell | Core i3 | 4005U | 2 | 4 | 1.7GHz | / | 3M | Intel HD 4400 | 15W |
| Q450P | S08 | Haswell | Core i5 | 4200U | 2 | 4 | 1.6GHz | 2.6GHz | 3M | Intel HD 4400 | 15W |
| Q470P | S08 | Haswell | Core i7 | 4500U | 2 | 4 | 1.8GHz | 3.0GHz | 4M | Intel HD 4400 | 15W |
| Q430PY | S08 | Haswell | Core i3 | 4010Y | 2 | 4 | 1.3GHz | / | 3M | Intel HD 4200 | 11.5W |
| Q450PY | S08 | Haswell | Core i5 | 4200Y | 2 | 4 | 1.4GHz | 1.9GHz | 3M | Intel HD 4200 | 11.5W |
| Q405P | S08 | Broadwell | Celeron | 3205U | 2 | 2 | 1.5GHz | / | 2M | Intel HD Graphics | 15W |
| Q410P | S08 | Broadwell | Celeron | 3215U | 2 | 2 | 1.7GHz | / | 2M | Intel HD Graphics | 15W |
| Q420P | S08 | Broadwell | Pentium | 3805U | 2 | 2 | 1.9GHz | / | 2M | Intel HD Graphics | 15W |
| Q435P | S08 | Broadwell | Core i3 | 5005U | 2 | 4 | 2.0GHz | / | 3M | Intel HD 5500 | 15W |
| Q455P | S08 | Broadwell | Core i5 | 5200U | 2 | 4 | 2.2GHz | 2.7GHz | 3M | Intel HD 5500 | 15W |
| Q475P | S08 | Broadwell | Core i7 | 5500U | 2 | 4 | 2.4GHz | 3.0GHz | 4M | Intel HD 5500 | 15W |
Q401PS08
- Case
- S08
- Code Name
- Haswell
- Processor Type
- Celeron
- Processor Number
- 2955U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.4GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
Q430PS08
- Case
- S08
- Code Name
- Haswell
- Processor Type
- Core i3
- Processor Number
- 4005U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.7GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 4400
- TDP
- 15W
Q450PS08
- Case
- S08
- Code Name
- Haswell
- Processor Type
- Core i5
- Processor Number
- 4200U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.6GHz
- Max Turbo Frequency
- 2.6GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 4400
- TDP
- 15W
Q470PS08
- Case
- S08
- Code Name
- Haswell
- Processor Type
- Core i7
- Processor Number
- 4500U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- 3.0GHz
- Cache
- 4M
- Processor Graphics
- Intel HD 4400
- TDP
- 15W
Q430PYS08
- Case
- S08
- Code Name
- Haswell
- Processor Type
- Core i3
- Processor Number
- 4010Y
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.3GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 4200
- TDP
- 11.5W
Q450PYS08
- Case
- S08
- Code Name
- Haswell
- Processor Type
- Core i5
- Processor Number
- 4200Y
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.4GHz
- Max Turbo Frequency
- 1.9GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 4200
- TDP
- 11.5W
Q405PS08
- Case
- S08
- Code Name
- Broadwell
- Processor Type
- Celeron
- Processor Number
- 3205U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.5GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
Q410PS08
- Case
- S08
- Code Name
- Broadwell
- Processor Type
- Celeron
- Processor Number
- 3215U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.7GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
Q420PS08
- Case
- S08
- Code Name
- Broadwell
- Processor Type
- Pentium
- Processor Number
- 3805U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.9GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
Q435PS08
- Case
- S08
- Code Name
- Broadwell
- Processor Type
- Core i3
- Processor Number
- 5005U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.0GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 5500
- TDP
- 15W
Q455PS08
- Case
- S08
- Code Name
- Broadwell
- Processor Type
- Core i5
- Processor Number
- 5200U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.2GHz
- Max Turbo Frequency
- 2.7GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 5500
- TDP
- 15W
Q475PS08
- Case
- S08
- Code Name
- Broadwell
- Processor Type
- Core i7
- Processor Number
- 5500U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.4GHz
- Max Turbo Frequency
- 3.0GHz
- Cache
- 4M
- Processor Graphics
- Intel HD 5500
- TDP
- 15W
Custom Options
| Category | Description |
| USB 2.0 | 3 |
| GPIO | 1 |
| LVDS | 1 |
