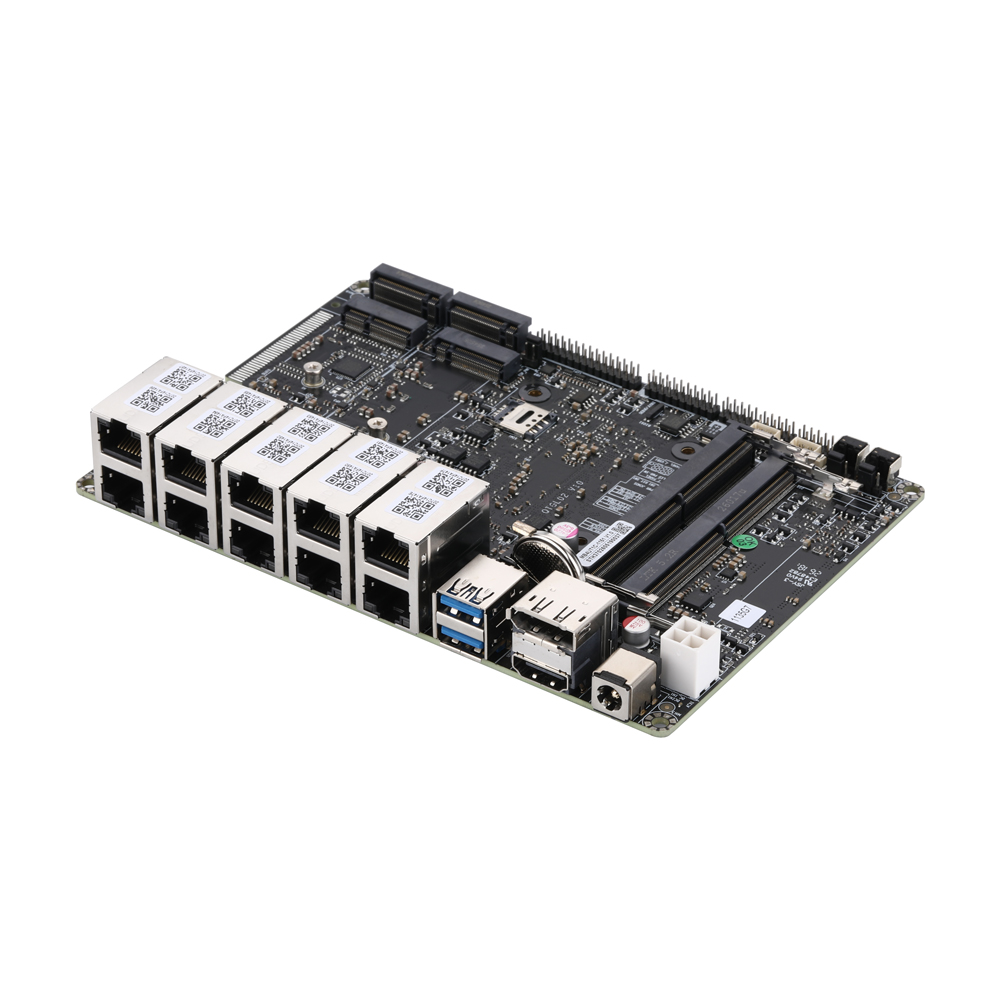

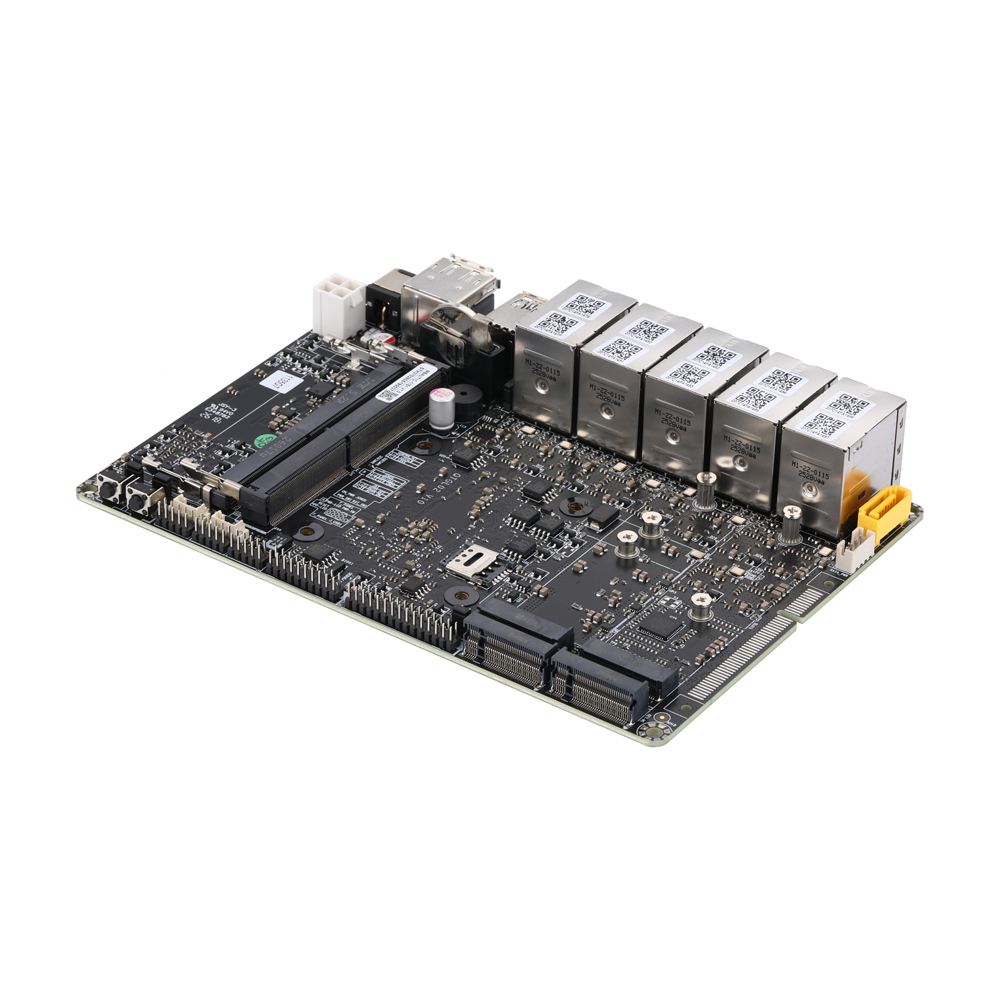

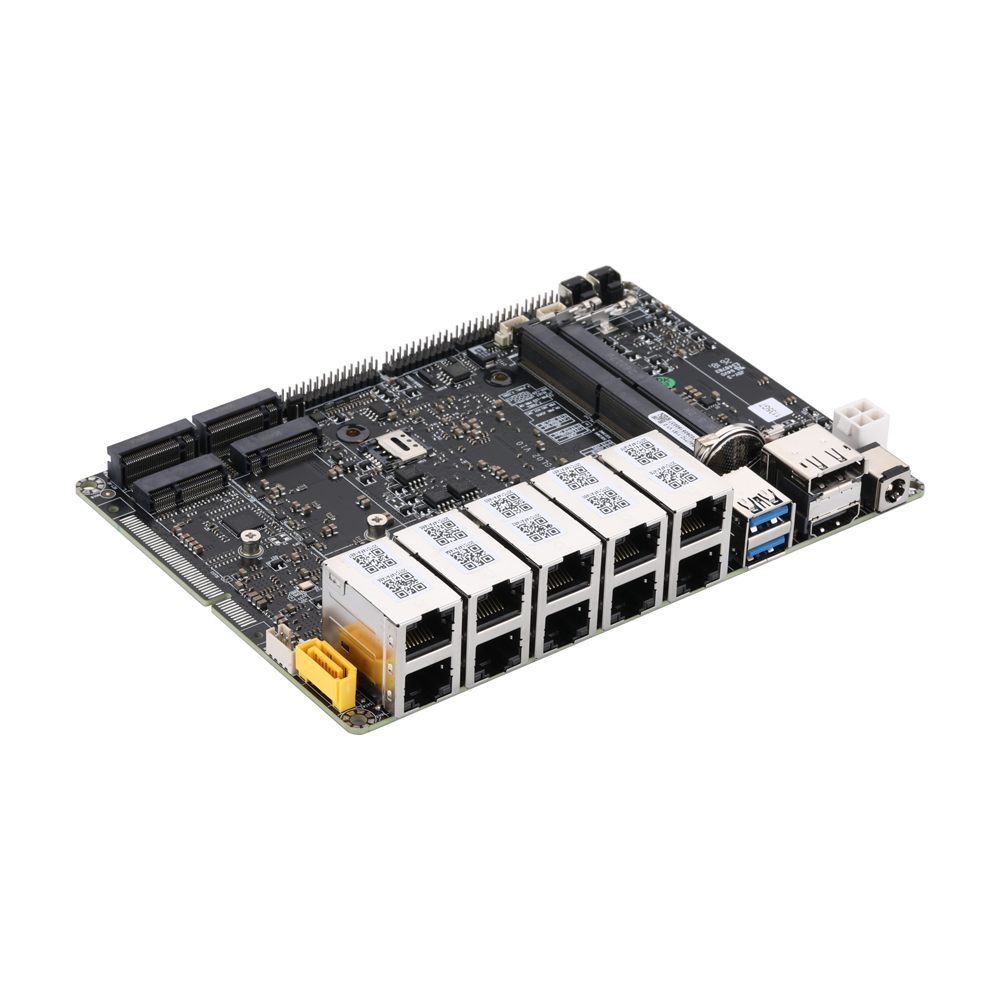

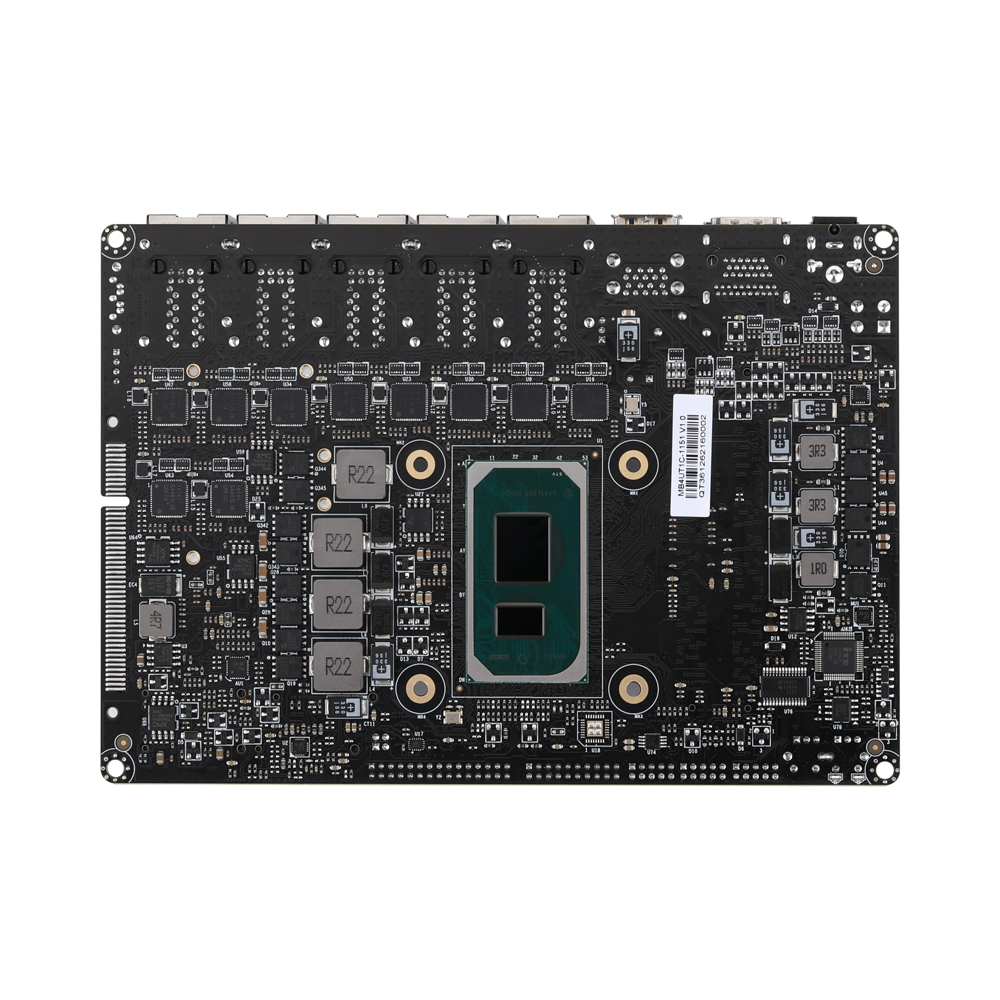

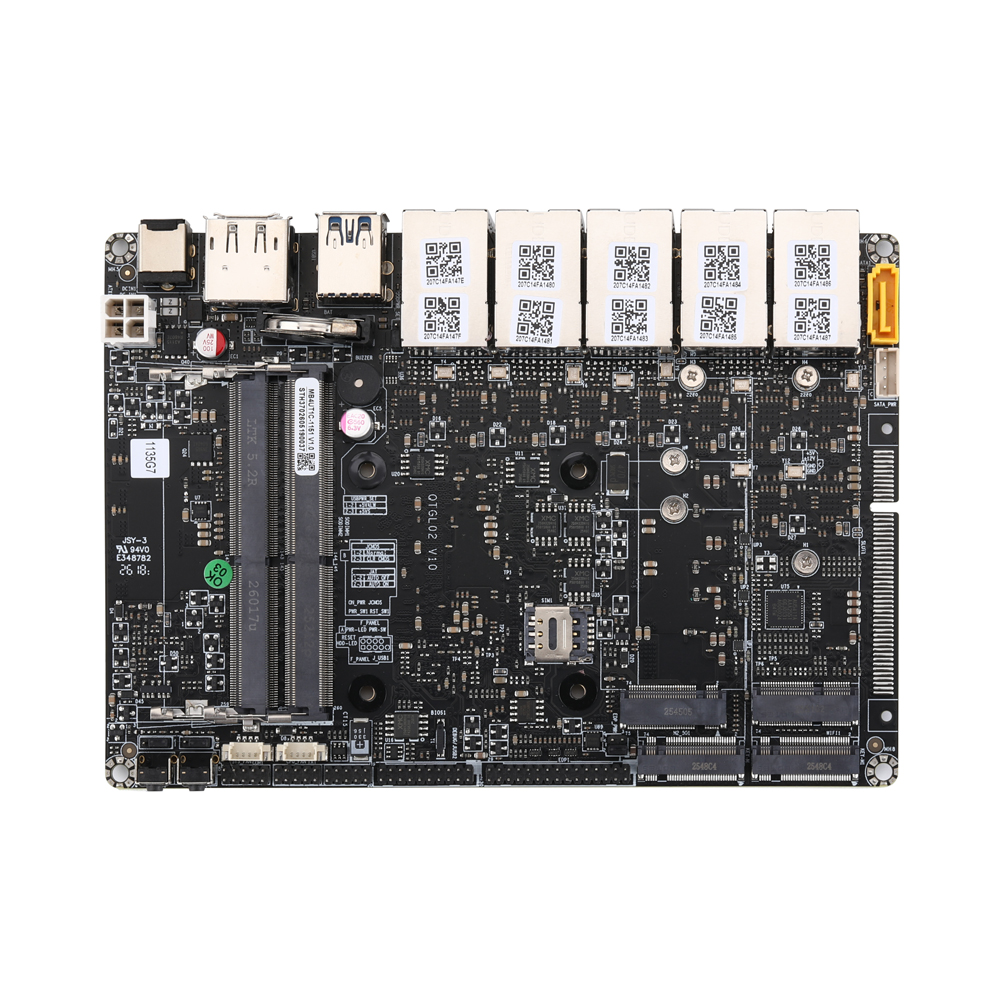

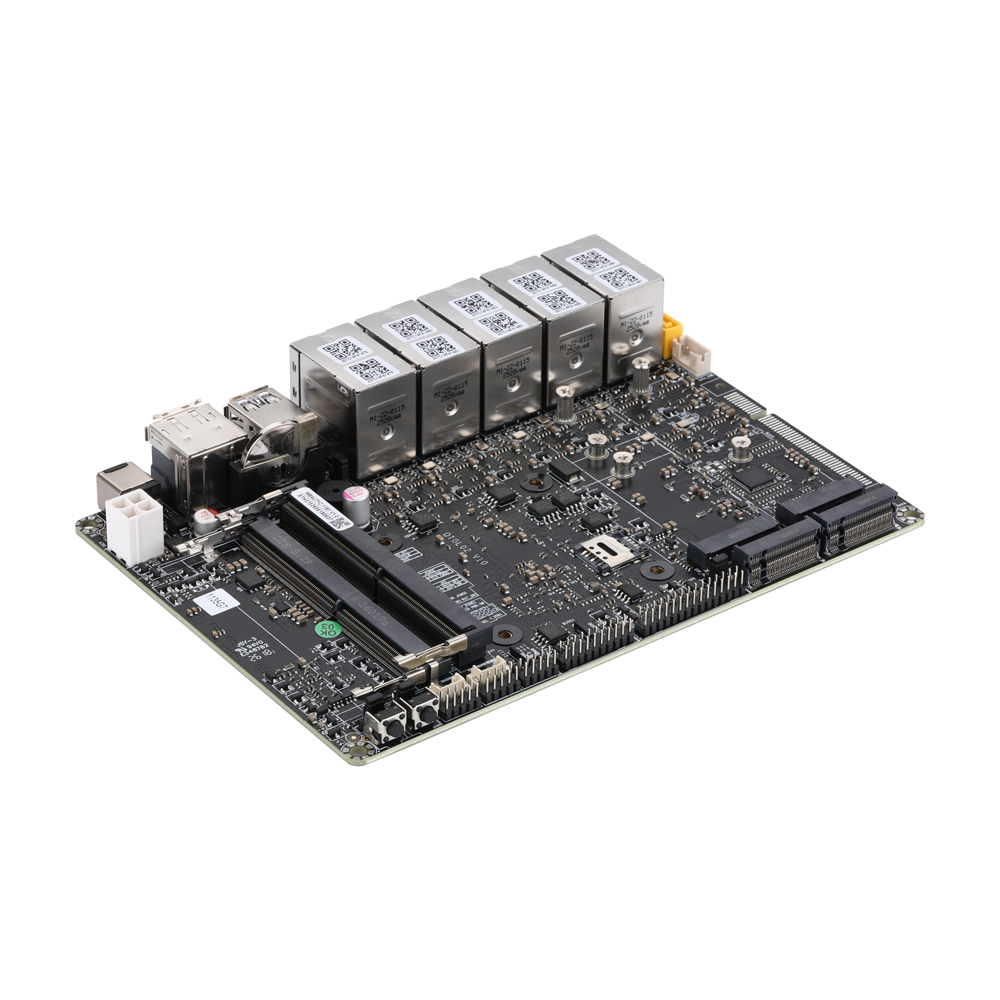

Motherboard MB4UT1C-1200 Series
Main FeaturesIntel 12th Alder Lake–P ProcessorIntel 13th Raptor Lake–P Processor1 × Display Port, 1 × HDMI2 × USB 3.0, 4 × USB 2.04 × M.210 × Intel I226-V 2.5G LAN1 × PCIe Slot
- Total of Network Interfaces
- 10
- SFP(+)
- 0
- 10G RJ45
- 0
- 2.5G RJ45
- 10
- 1G RJ45
- 0
- Serial Ports
- 0
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 1 × HDMI
2 × USB 3.0, 4 × USB 2.0
4 × M.2
10 × Intel I226-V 2.5G LAN
1 × PCIe Slot
Specification
| Processor System | |
| Dimension | 165 × 115mm |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) (Option 2, Preferred) |
| Memory | |
| Technology | DDR4 3200MHz SDRAM |
| Max. | 64GB |
| Socket | 2 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| Display Port | 1 |
| HDMI | 1 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000/2500Mbps |
| Controller | 10 × Intel I226-V 2.5G LAN |
| Connector | 10 × RJ-45 |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | No |
| Real I/O | |
| DC-IN | 1 |
| Display | 1× Display Port, 1 × HDMI |
| USB 3.0 | 2 × USB 3.0 (Type A) |
| Ethernet | 10 |
| Front I/O | |
| LED | 1 × Power LED, 1 × HDD LED |
| Power Button | 1 × Power Button, 1 × CMOS Clear Button |
| Internal Connector | |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| PCIe Slot | 1, PCIe slot (Type: X16, PCIe 3.0 × 1) (Custom only) |
| Serial Port | 1 × RS-232, 1, 2 × 5Pin, Pitch 2.0mm |
| USB 2.0 Header | 4, 2 × 5Pin, Pitch 2.0mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| EDP | 1, 2 × 15Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 2 × 2Pin, Pitch 5.5mm/4.2mm (Custom only) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and spec information
Ordering and Specifications Information
Quick Order Model: MB4UT1C-1251
| Ordering Code | Code Name | Processor Type | Processor Number | Cores / Threads | Frequency | Cache | Graphics | TDP | P-Cores | E-Cores |
| MB4UT1C-1211 | Alder Lake U | Celeron | 7305 | 5 / 5 | 1.10 GHz | 8M | Intel UHD Graphics | 15-55W | 1 | 4 |
| MB4UT1C-1221 | Alder Lake U | Pentium | 8505 | 5 / 6 | 1.20 GHz ~ 4.40 GHz | 8M | Intel UHD Graphics | 15-55W | 1 | 4 |
| MB4UT1C-1231 | Alder Lake U | Core i3 | 1215U | 6 / 8 | 1.20 GHz ~ 4.40 GHz | 10M | Intel UHD Graphics | 15-55W | 2 | 4 |
| MB4UT1C-1251 | Alder Lake U | Core i5 | 1235U | 10 / 12 | 1.30 GHz ~ 4.40 GHz | 12M | Intel Iris Xe Graphics eligible | 15-55W | 2 | 8 |
| MB4UT1C-1271 | Alder Lake U | Core i7 | 1255U | 10 / 12 | 1.70 GHz ~ 4.70 GHz | 12M | Intel Iris Xe Graphics eligible | 15-55W | 2 | 8 |
| MB4PT1C-1231 | Alder Lake P | Core i3 | 1220P | 10 / 12 | 1.50 GHz ~ 4.40 GHz | 12M | Intel UHD Graphics | 28-64W | 2 | 8 |
| MB4PT1C-1251 | Alder Lake P | Core i5 | 1240P | 12 / 16 | 1.70 GHz ~ 4.40 GHz | 12M | Intel Iris Xe Graphics eligible | 28-64W | 4 | 8 |
| MB4PT1C-1271 | Alder Lake P | Core i7 | 1260P | 12 / 16 | 2.10 GHz ~ 4.70 GHz | 18M | Intel Iris Xe Graphics eligible | 28-64W | 4 | 8 |
| MB4HT1C-1231 | Alder Lake H | Core i3 | 12300HE | 8 / 12 | 1.90 GHz | 12M | Intel UHD Graphics | 45-115W | 4 | 4 |
| MB4HT1C-1251 | Alder Lake H | Core i5 | 12450H | 8 / 12 | 2.00 GHz ~ 4.40 GHz | 12M | Intel UHD Graphics | 45-95W | 4 | 4 |
| MB4HT1C-1271 | Alder Lake H | Core i7 | 12650H | 10 / 16 | 2.30 GHz ~ 4.70 GHz | 24M | Intel Iris Xe Graphics eligible | 45-115W | 6 | 4 |
| MB4HT1C-1291 | Alder Lake H | Core i9 | 12900H | 14 / 20 | 2.50 GHz ~ 5.00 GHz | 24M | Intel Iris Xe Graphics eligible | 45-115W | 6 | 8 |
