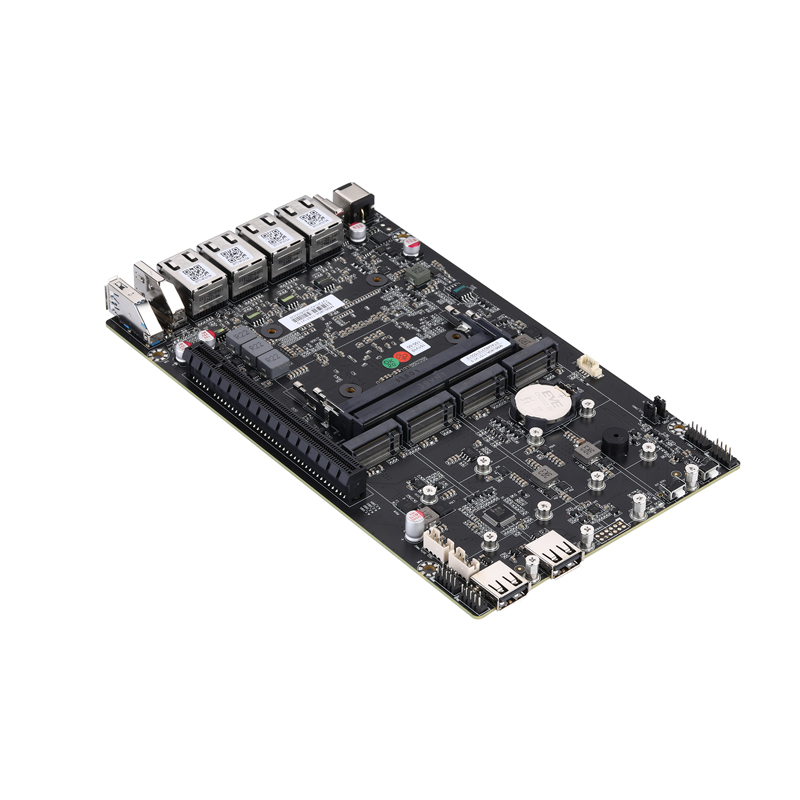

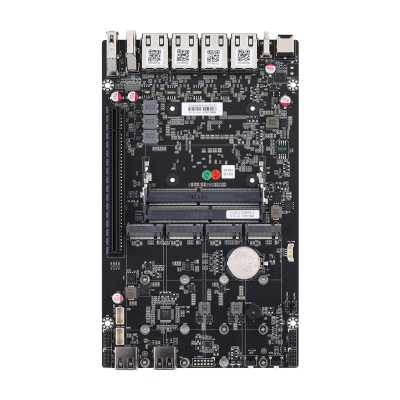

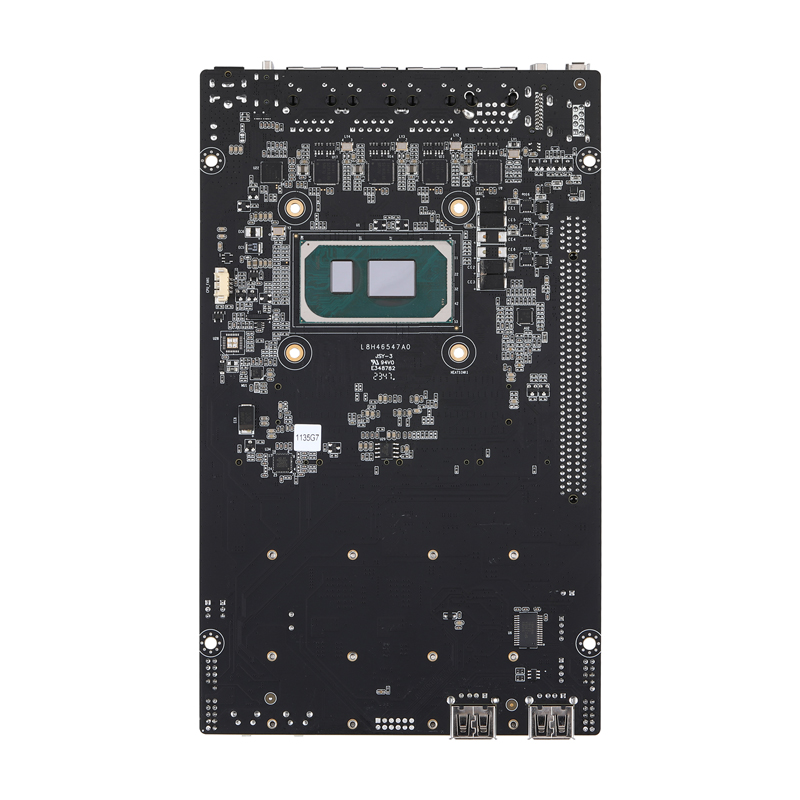

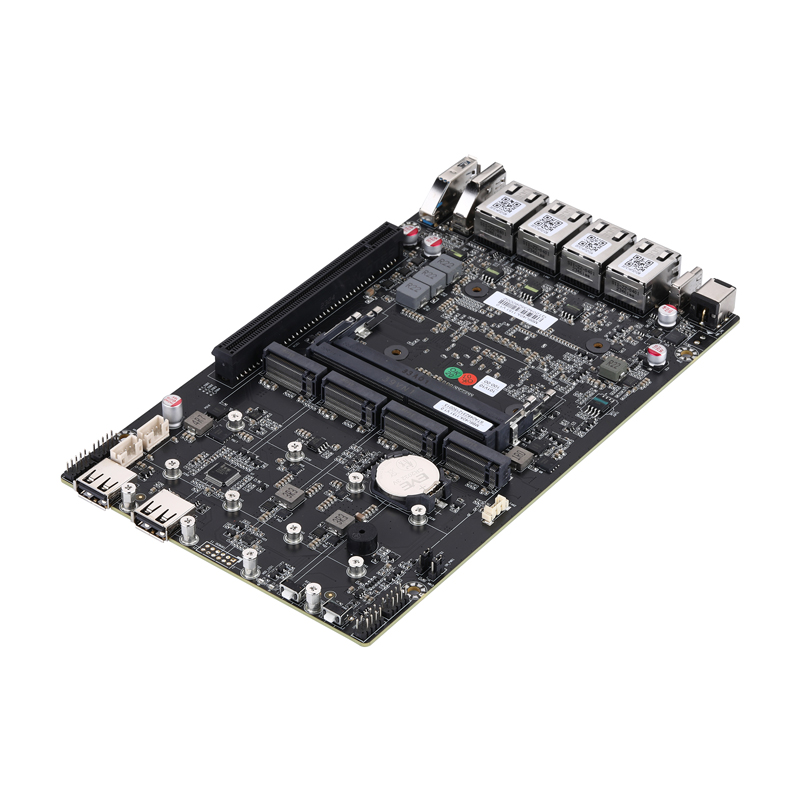

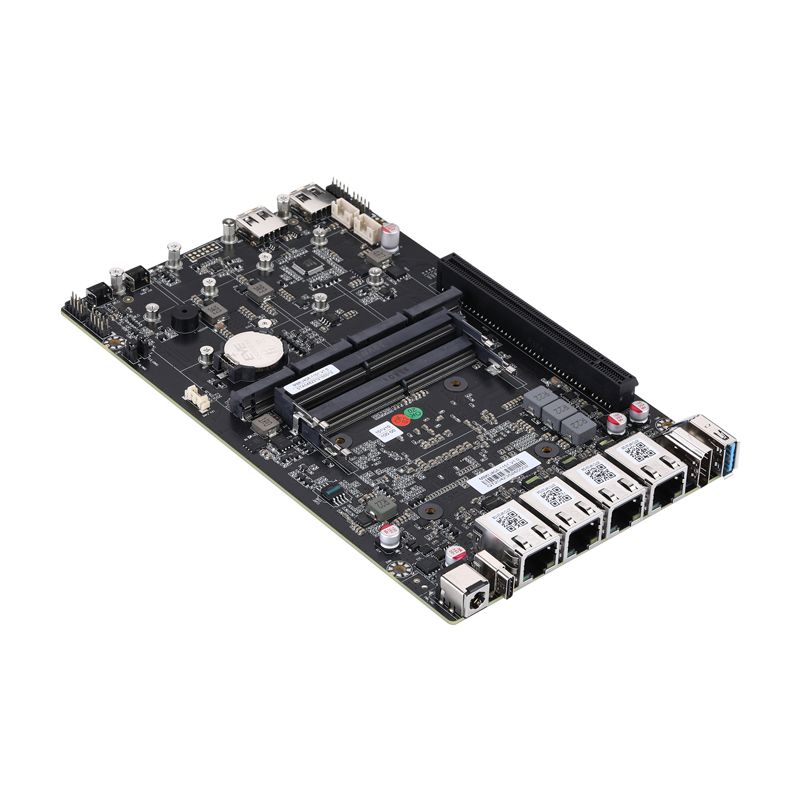

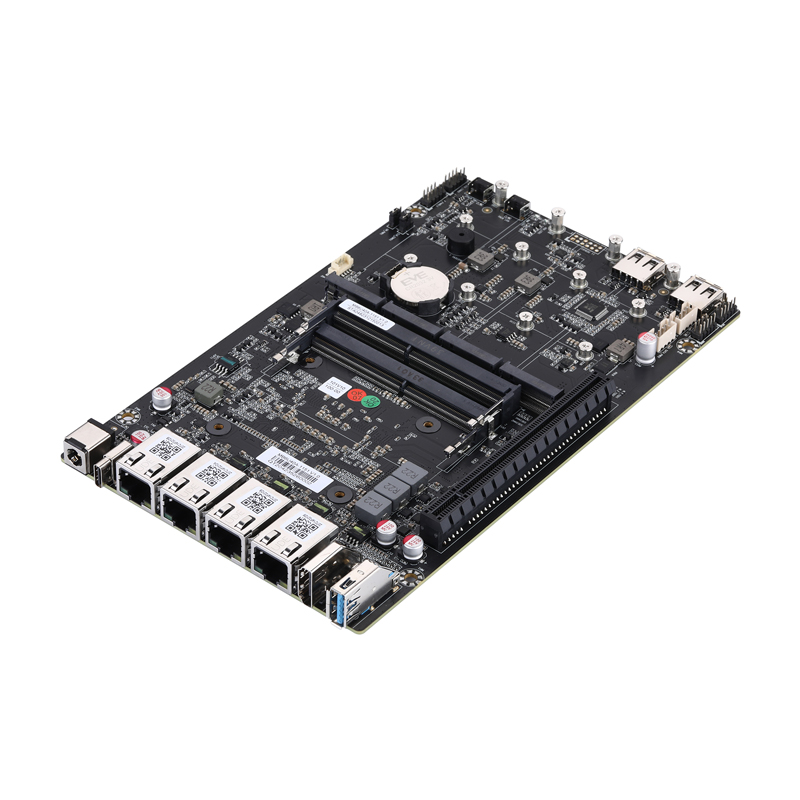

Motherboard MB6U40A-1100 Series

Mini ITX NAS motherboard with Intel 11th Gen Tiger Lake CPU, 4× M.2 for SSD, 4× 2.5G LAN, Type-C, HDMI—perfect for storage servers and home NAS builds.

Total of Network Interfaces
4
SFP(+)
0
10G RJ45
0
2.5G RJ45
4
1G RJ45
0
Serial Ports
0
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 11th Tiger Lake Processor

  • 1 × HDMI

  • 1 × USB 3.0, 6 × USB 2.0, 1 × Type C

  • 4 × M.2

  • 4 × Intel I225-V/I226-V 2.5 Gigabit LAN

Specifications

Processor System
Dimension120 × 200mm
CPUIntel 11th Tiger Lake Processor
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
M.22 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2)
M.22 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Memory
TechnologyDDR4 3200MHz SDRAM
Max.64GB
Socket2 × SO-DIMMs
Graphics
ControllerBy CPU
VRAMShared Memory
Display PortDisplay Port (Type C)
HDMI1 (Support HDMI 1.4a)
Multi DisplayYes
Ethernet
Interface100/1000/2500Mbps
Controller4 × Intel I225-V/I226-V 2.5 Gigabit LAN
Connector4 × RJ-45
Audio
ControllerNo
SATA
Max. Data Transfer RateNo
Accessories
AccessoriesNo
Real I/O
DC-IN1
Type C1, USB 3.0 and Display Port
HDMI1
Ethernet4
USB1 × USB 3.0
Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB2 × USB 2.0
Internal Connector
M.22 × M.2 for SSD, PCIe 3.0 × 2
(M key, Type: 2242/2260/2280)

(M key, Type: 2242/2260/2280)
M.22 × M.2 for SSD, PCIe 3.0 × 1
(M key, Type: 2242/2260/2280)
(NGFF for Core i5/i7)
PCIe1, PCIe slot (Type: X16, PCIe 4.0 × 4)
AutoStart Jumper1, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper1, 1 × 3Pin, Pitch 2.0mm
Front Panel1, 2 × 5Pin, Pitch 2.0mm
USB2, 2 × 5Pin, Pitch 2.0mm
Serial Port1 × RS-232, 1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin
(Option)
Watchdog Timer
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Power Requirement
Input PWR12V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSUEFI Windows 10, UEFI Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model
ItemQuantity
  • 1
    Motherboard
    1
  • 2
    HDD cable
    1
  • 3
    Radiator
    Option
    1
  • 4
    Fan
    Option
    1
  • 5
    Serial cable
    Depending on the model
    Several

Models & options

Ordering and Specifications Information

Quick Order Model: MB6U40A-1151

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
MB6U40A-1111Tiger LakeCeleron6305221.80 GHz
4MIntel UHD Graphics15W
MB6U40A-1121Tiger LakePentium7505242.00 GHz3.50 GHz4MIntel UHD Graphics15W
MB6U40A-1131Tiger LakeCore i31115G4243.00 GHz4.10 GHz6MIntel UHD Graphics12-28W
MB6U40A-1132Tiger LakeCore i31125G4482.00 GHz3.70 GHz8MIntel UHD Graphics12-28W
MB6U40A-1151Tiger LakeCore i51135G7482.40 GHz4.20 GHz8MIntel Iris Xe Graphics12-28W
MB6U40A-1152Tiger LakeCore i51145G7482.60 GHz4.40 GHz8MIntel Iris Xe Graphics12-28W
MB6U40A-1153Tiger LakeCore i51155G7482.50 GHz4.50 GHz8MIntel Iris Xe Graphics eligible12-28W
MB6U40A-1171Tiger LakeCore i71165G7482.80 GHz4.70 GHz12MIntel Iris Xe Graphics12-28W
MB6U40A-1172Tiger LakeCore i71185G7483.00 GHz4.80 GHz12MIntel Iris Xe Graphics12-28W
MB6U40A-1173Tiger LakeCore i71195G7482.90 GHz5.00 GHz12MIntel Iris Xe Graphics eligible12-28W
MB6H40A-1151Tiger LakeCore i511300H482.60 GHz4.40 GHz8MIntel Iris Xe Graphics28-35W
MB6H40A-1152Tiger LakeCore i511320H482.50 GHz4.50 GHz8MIntel Iris Xe Graphics eligible28-35W
MB6H40A-1171Tiger LakeCore i711370H483.00 GHz4.80 GHz12MIntel Iris Xe Graphics28-35W
MB6H40A-1172Tiger LakeCore i711375H483.00 GHz5.00 GHz12MIntel Iris Xe Graphics28-35W
MB6H40A-1173Tiger LakeCore i711390H482.90 GHz5.00 GHz12MIntel Iris Xe Graphics eligible28-35W
MB6U40A-1111Tiger Lake
Code Name
Tiger Lake
Processor Type
Celeron
Processor Number
6305
# of Cores
2
# of Threads
2
Base Frequency
1.80 GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB6U40A-1121Tiger Lake
Code Name
Tiger Lake
Processor Type
Pentium
Processor Number
7505
# of Cores
2
# of Threads
4
Base Frequency
2.00 GHz
Max Turbo Frequency
3.50 GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB6U40A-1131Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i3
Processor Number
1115G4
# of Cores
2
# of Threads
4
Base Frequency
3.00 GHz
Max Turbo Frequency
4.10 GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
12-28W
MB6U40A-1132Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i3
Processor Number
1125G4
# of Cores
4
# of Threads
8
Base Frequency
2.00 GHz
Max Turbo Frequency
3.70 GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
12-28W
MB6U40A-1151Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
1135G7
# of Cores
4
# of Threads
8
Base Frequency
2.40 GHz
Max Turbo Frequency
4.20 GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
MB6U40A-1152Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
1145G7
# of Cores
4
# of Threads
8
Base Frequency
2.60 GHz
Max Turbo Frequency
4.40 GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
MB6U40A-1153Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
1155G7
# of Cores
4
# of Threads
8
Base Frequency
2.50 GHz
Max Turbo Frequency
4.50 GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
12-28W
MB6U40A-1171Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
1165G7
# of Cores
4
# of Threads
8
Base Frequency
2.80 GHz
Max Turbo Frequency
4.70 GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
MB6U40A-1172Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
1185G7
# of Cores
4
# of Threads
8
Base Frequency
3.00 GHz
Max Turbo Frequency
4.80 GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
MB6U40A-1173Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
1195G7
# of Cores
4
# of Threads
8
Base Frequency
2.90 GHz
Max Turbo Frequency
5.00 GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
12-28W
MB6H40A-1151Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
11300H
# of Cores
4
# of Threads
8
Base Frequency
2.60 GHz
Max Turbo Frequency
4.40 GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics
TDP
28-35W
MB6H40A-1152Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
11320H
# of Cores
4
# of Threads
8
Base Frequency
2.50 GHz
Max Turbo Frequency
4.50 GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
28-35W
MB6H40A-1171Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
11370H
# of Cores
4
# of Threads
8
Base Frequency
3.00 GHz
Max Turbo Frequency
4.80 GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
28-35W
MB6H40A-1172Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
11375H
# of Cores
4
# of Threads
8
Base Frequency
3.00 GHz
Max Turbo Frequency
5.00 GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
28-35W
MB6H40A-1173Tiger Lake
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
11390H
# of Cores
4
# of Threads
8
Base Frequency
2.90 GHz
Max Turbo Frequency
5.00 GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
28-35W
