Mini PC Q300G4 1U02 Series

Q300G4 1U rackmount fanless mini PC with Intel Haswell/Broadwell-U CPU, HDMI, RS-232, USB 3.0, mSATA, Mini PCIe, and 4× Intel I211/I210 Gigabit LAN for firewall or router use.

Total of Network Interfaces
4
SFP(+)
None
10G RJ45
None
2.5G RJ45
None
1G RJ45
4
Serial Ports
1
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 1 × HDMI, 1 × RS-232

  • 2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini PCIe, 1 × mSATA

  • 4 × Intel I211-AT/I210-AT Gigabit LAN

Specifications

Processor System
CPUIntel 4thHaswell –U/Y Processor
ntel 5thBroadwell-U Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset4 × Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogYes

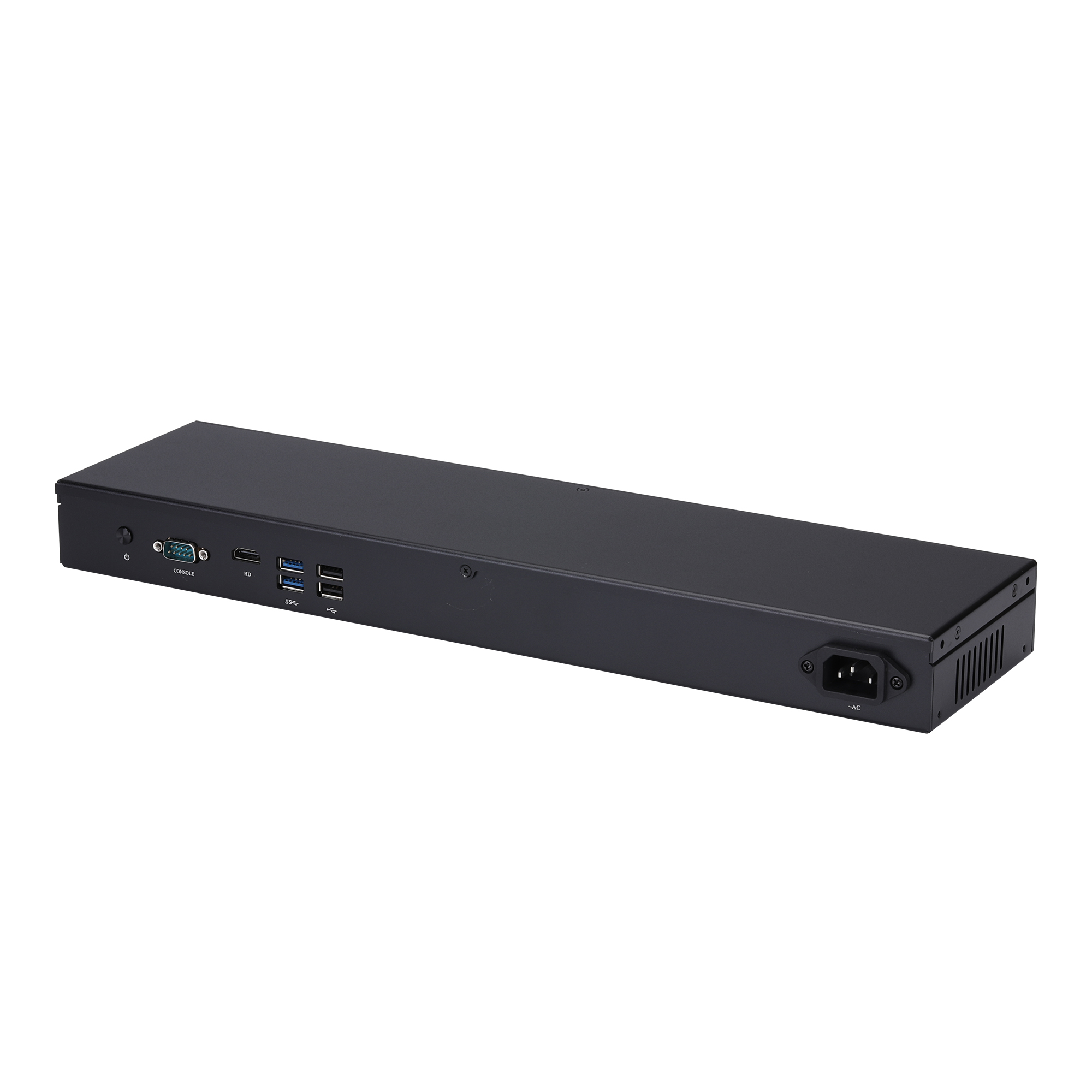

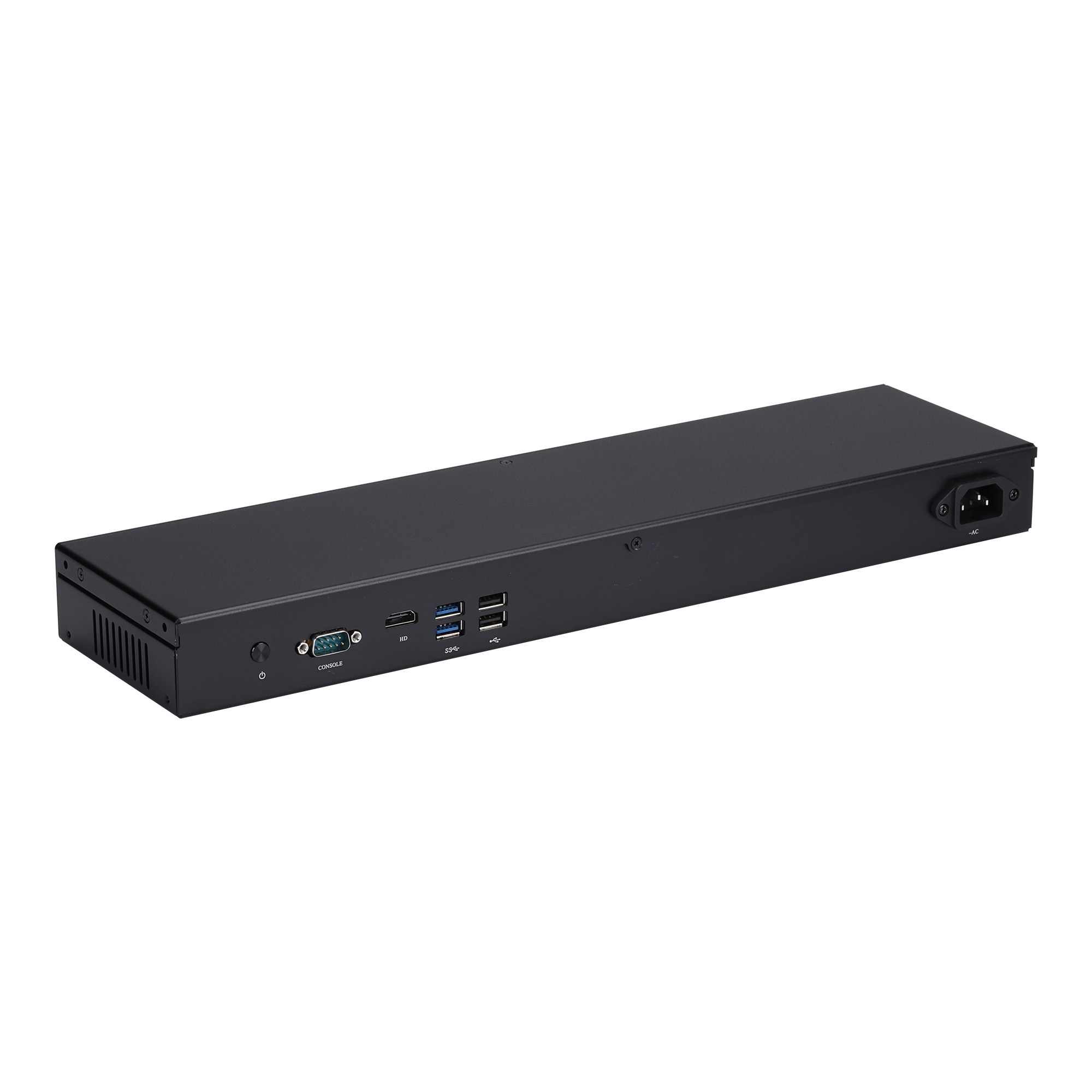

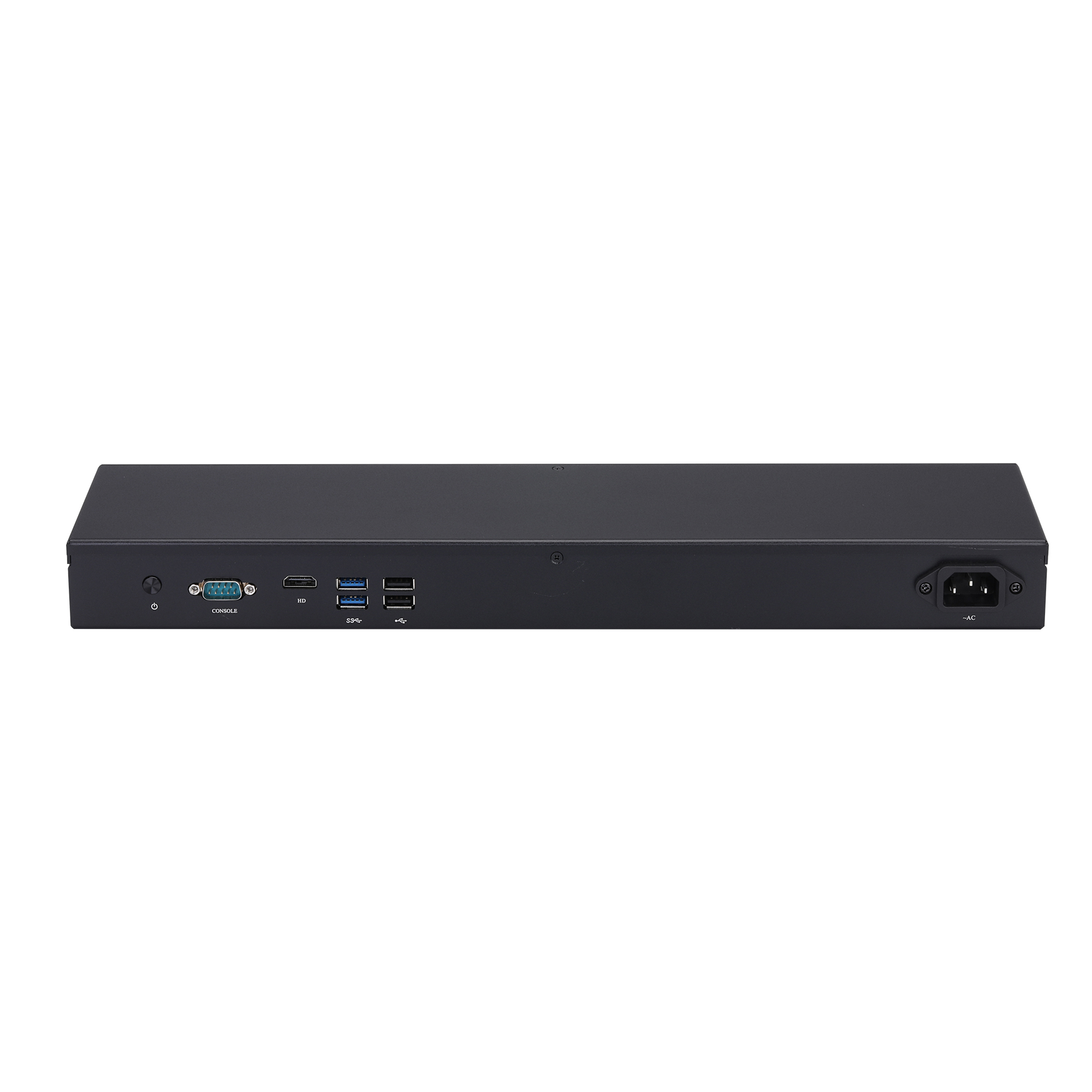

Front I/O
Power Button1
LED1 × Power LED
Serial Port1 × RS-232 (COM1)
Video Output1 × HDMI
USB2 × USB 3.0, 2 × USB 2.0

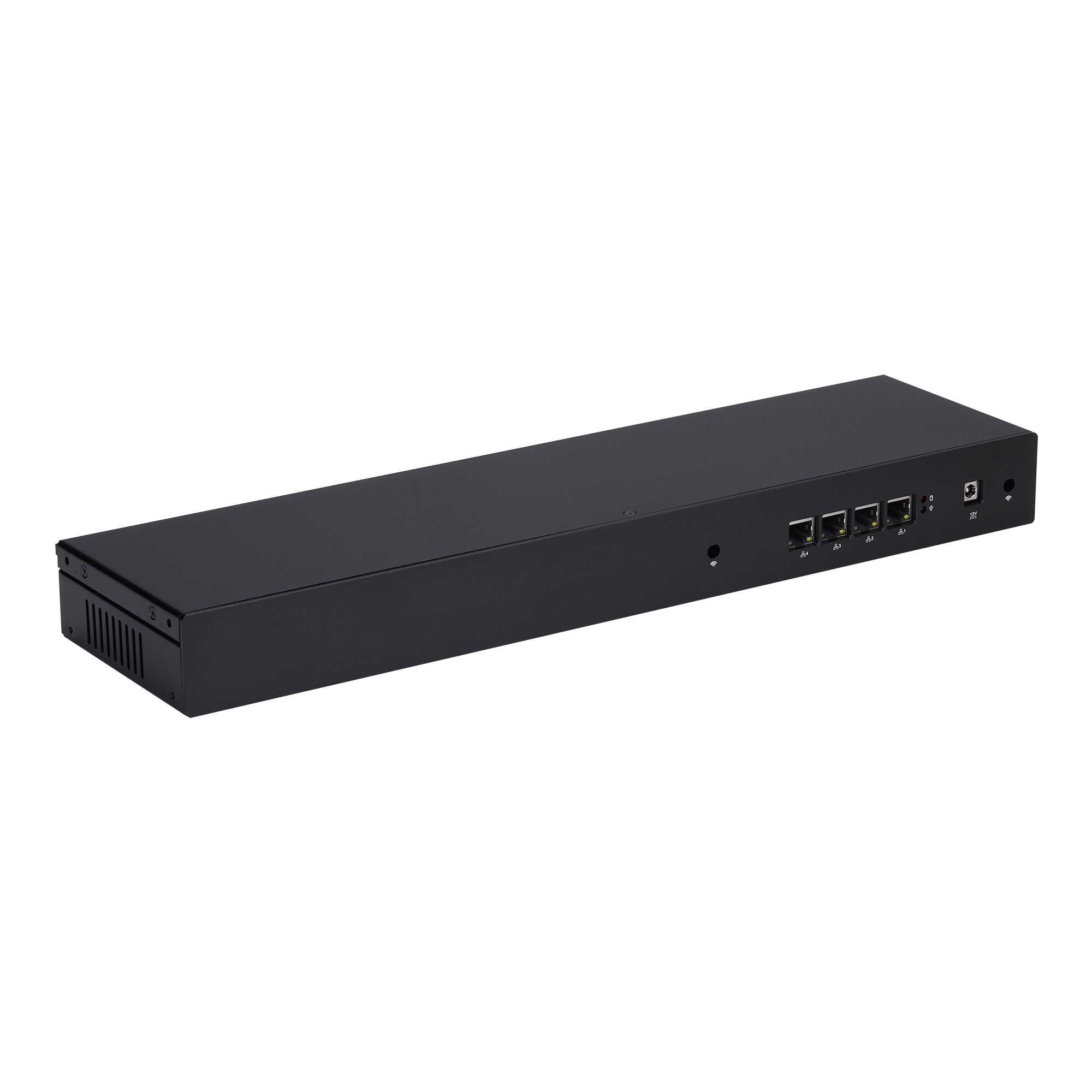

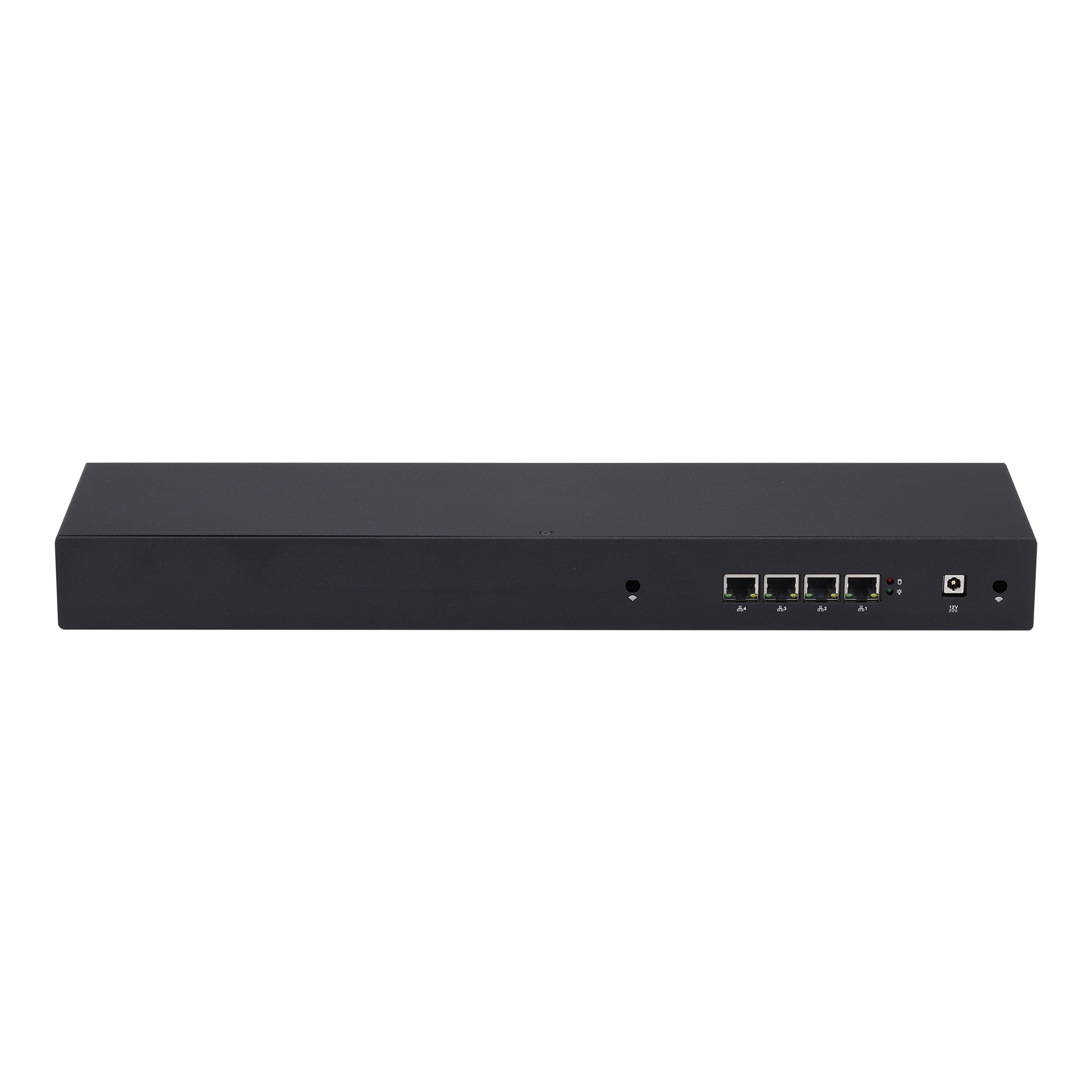

Rear I/O
Power1 × DC Jack
LED1 × Power LED, 1 × HDD LED
LAN4 × Intel I211-AT/I210-AT Gigabit LAN
Audio0
Storage
Type1 × 2.5-inch HDD/SSD
1 × Mini PCIe for mSATA SSD
Expansion
Msata1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe
Full-length for 4G
Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
VGA0
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4850
DC-inNo
Power Requirement
AC InputAC 100-240V by Default
Power AdapterDC 12V (5.5mm, 2.5mm)
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension440 × 112 × 44mm
Weight1.12kg
MountingNo
Packaging Dimension545 × 180 × 90mm
Kensington LockNo
Cooling ModeFan
OS Support
OSWindows 7, Windows 8, Windows 10, Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2AC Power Cord1
3Screws for SATA SSD/HDD1
4SATA cable for SSD/HDD1Option
5Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    AC Power Cord
    1
  • 3
    Screws for SATA SSD/HDD
    1
  • 4
    SATA cable for SSD/HDD
    Option
    1
  • 5
    Antennas
    Option
    2

Models & options

Ordering and Specifications Information

Quick Order Model: Q335G4-S05

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q301G4S05HaswellCeleron2955U221.4GHz/2MIntel HD Graphics15W
Q302G4S05HaswellCeleron3558U221.7GHz/2MIntel HD Graphics15W
Q330G4S05HaswellCore i34005U241.7GHz/3MIntel HD 440015W
Q350G4S05HaswellCore i54200U241.6GHz2.6GHz3MIntel HD 440015W
Q370G4S05HaswellCore i74500U241.8GHz3.0GHz4MIntel HD 440015W
Q330G4YS05HaswellCore i34010Y241.3GHz/3MIntel HD 420011.5W
Q350G4YS05HaswellCore i54200Y241.4GHz1.9GHz3MIntel HD 420011.5W
Q305G4S05BroadwellCeleron3205U221.5GHz/2MIntel HD Graphics15W
Q310G4S05BroadwellCeleron3215U221.7GHz/2MIntel HD Graphics15W
Q320G4S05BroadwellPentium3805U221.9GHz/2MIntel HD Graphics15W
Q335G4S05BroadwellCore i35005U242.0GHz/3MIntel HD 550015W
Q355G4S05BroadwellCore i55200U242.2GHz2.7GHz3MIntel HD 550015W
Q375G4S05BroadwellCore i75500U242.4GHz3.0GHz4MIntel HD 550015W
Q301G4S05
Case
S05
Code Name
Haswell
Processor Type
Celeron
Processor Number
2955U
# of Cores
2
# of Threads
2
Base Frequency
1.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q302G4S05
Case
S05
Code Name
Haswell
Processor Type
Celeron
Processor Number
3558U
# of Cores
2
# of Threads
2
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q330G4S05
Case
S05
Code Name
Haswell
Processor Type
Core i3
Processor Number
4005U
# of Cores
2
# of Threads
4
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 4400
TDP
15W
Q350G4S05
Case
S05
Code Name
Haswell
Processor Type
Core i5
Processor Number
4200U
# of Cores
2
# of Threads
4
Base Frequency
1.6GHz
Max Turbo Frequency
2.6GHz
Cache
3M
Processor Graphics
Intel HD 4400
TDP
15W
Q370G4S05
Case
S05
Code Name
Haswell
Processor Type
Core i7
Processor Number
4500U
# of Cores
2
# of Threads
4
Base Frequency
1.8GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel HD 4400
TDP
15W
Q330G4YS05
Case
S05
Code Name
Haswell
Processor Type
Core i3
Processor Number
4010Y
# of Cores
2
# of Threads
4
Base Frequency
1.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 4200
TDP
11.5W
Q350G4YS05
Case
S05
Code Name
Haswell
Processor Type
Core i5
Processor Number
4200Y
# of Cores
2
# of Threads
4
Base Frequency
1.4GHz
Max Turbo Frequency
1.9GHz
Cache
3M
Processor Graphics
Intel HD 4200
TDP
11.5W
Q305G4S05
Case
S05
Code Name
Broadwell
Processor Type
Celeron
Processor Number
3205U
# of Cores
2
# of Threads
2
Base Frequency
1.5GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q310G4S05
Case
S05
Code Name
Broadwell
Processor Type
Celeron
Processor Number
3215U
# of Cores
2
# of Threads
2
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q320G4S05
Case
S05
Code Name
Broadwell
Processor Type
Pentium
Processor Number
3805U
# of Cores
2
# of Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q335G4S05
Case
S05
Code Name
Broadwell
Processor Type
Core i3
Processor Number
5005U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 5500
TDP
15W
Q355G4S05
Case
S05
Code Name
Broadwell
Processor Type
Core i5
Processor Number
5200U
# of Cores
2
# of Threads
4
Base Frequency
2.2GHz
Max Turbo Frequency
2.7GHz
Cache
3M
Processor Graphics
Intel HD 5500
TDP
15W
Q375G4S05
Case
S05
Code Name
Broadwell
Processor Type
Core i7
Processor Number
5500U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel HD 5500
TDP
15W

PC Case Options

CategorySATA Support
S05Yes
S06-
1U02Yes

Custom Options

CategoryDescription
Audio2
USB 2.02
Serial Port1 × RS-232
GPIO1
