Mini PC Q300G4 S06 Series

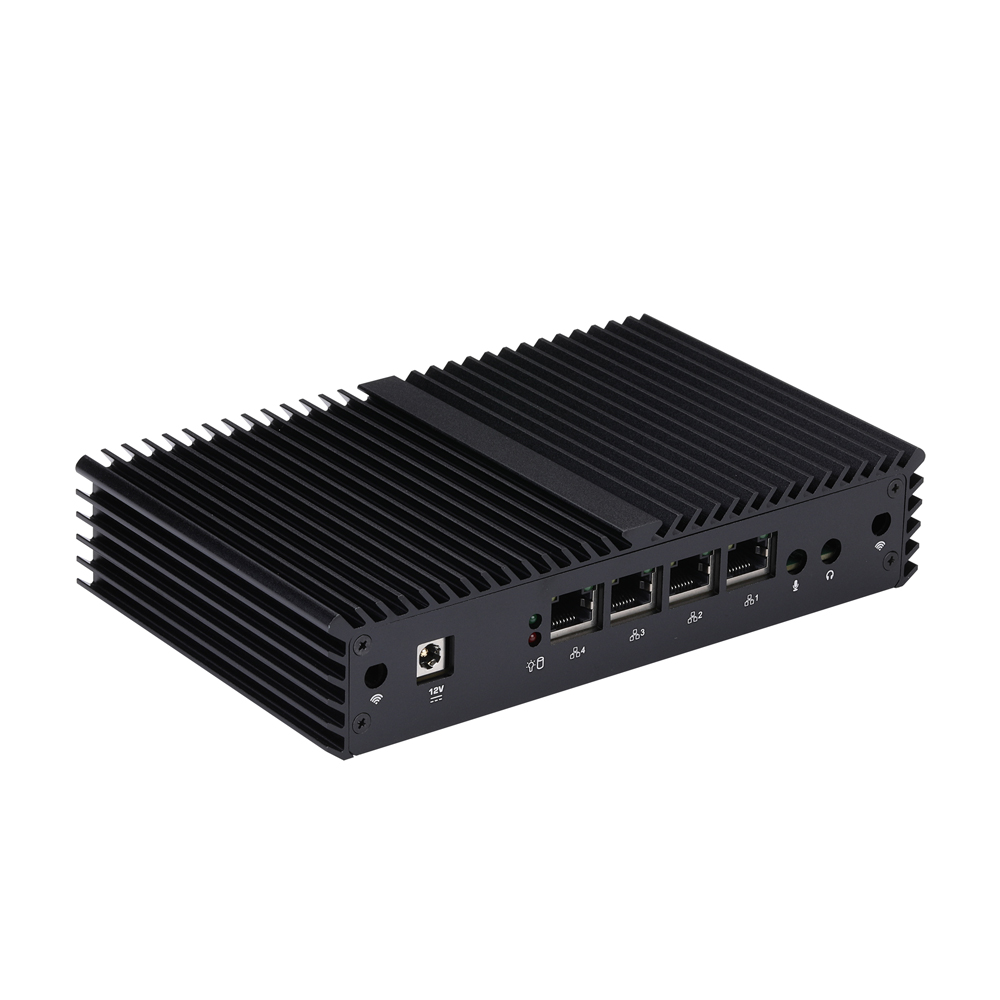

Q300G4 compact fanless mini PC with Intel Haswell/Broadwell-U CPU, HDMI, RS-232, dual USB 3.0, mSATA, Mini PCIe, and 4× Intel I211/I210 Gigabit LAN for network applications.

Total of Network Interfaces
4
SFP(+)
None
10G RJ45
None
2.5G RJ45
None
1G RJ45
4
Serial Ports
1
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 1 × HDMI, 1 × RS-232

  • 2 × USB 3.0, 2 × USB 2.0

  • 1 × Mini PCIe, 1 × mSATA

  • 4 × Intel I211-AT/I210-AT Gigabit LAN

Specifications

Processor System
CPUIntel 4thHaswell –U/Y Processor
Intel 5thBroadwell-U Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset4 × Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogYes

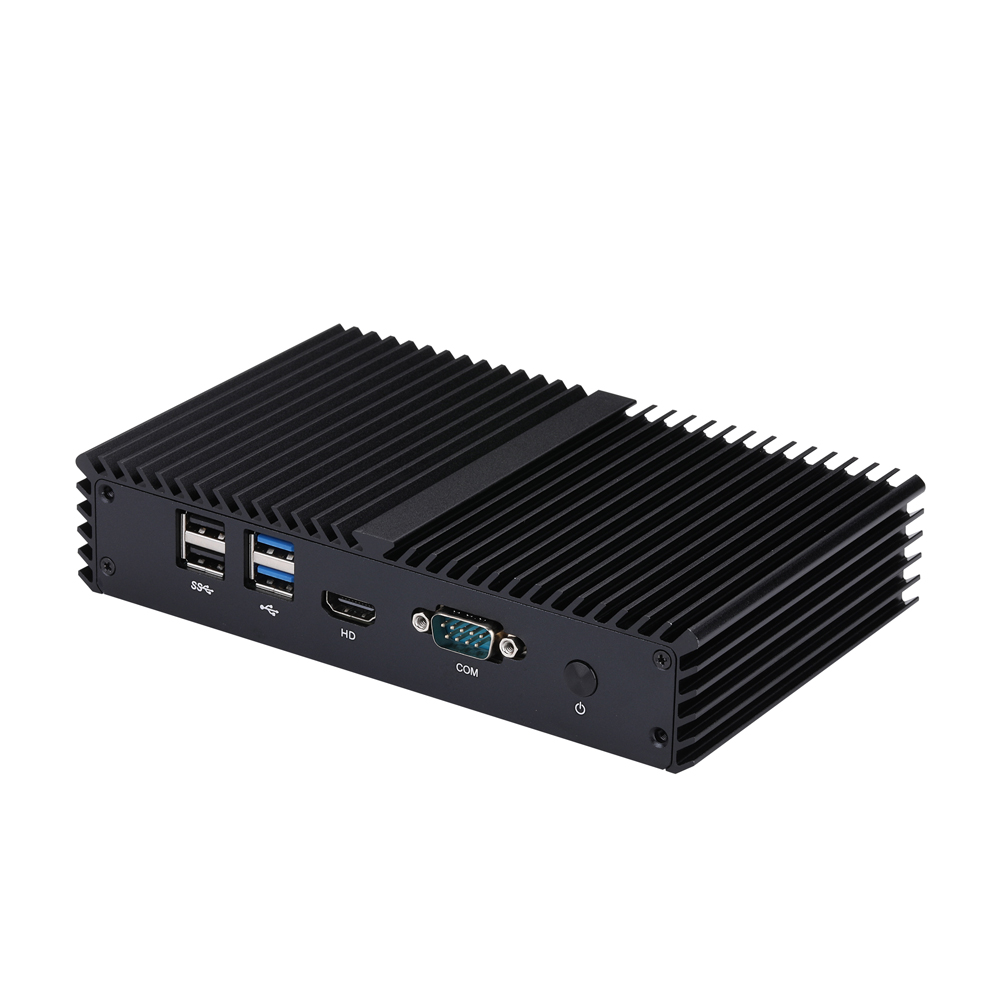

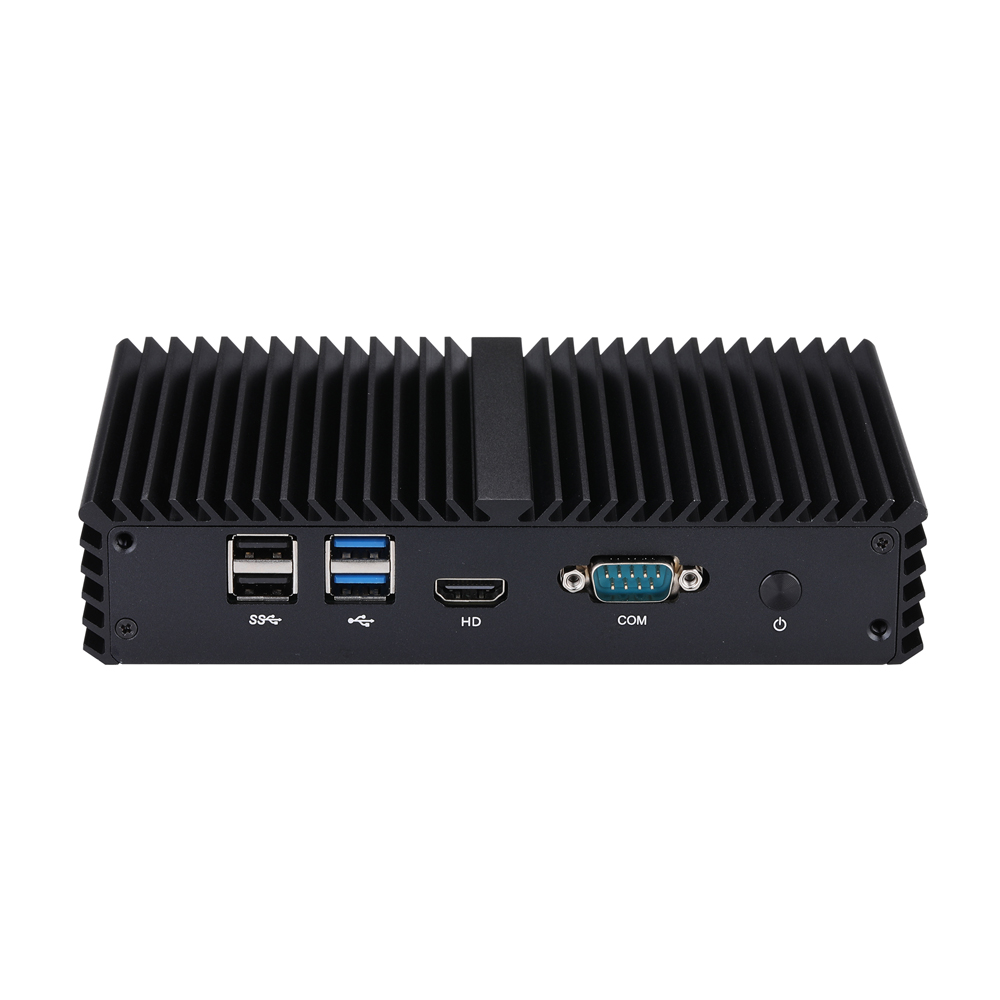

Front I/O
Power Button1
LED1 × Power LED
Serial Port1 × RS-232
Video Output1 × HDMI
USB2 × USB 3.0, 2 × USB 2.0

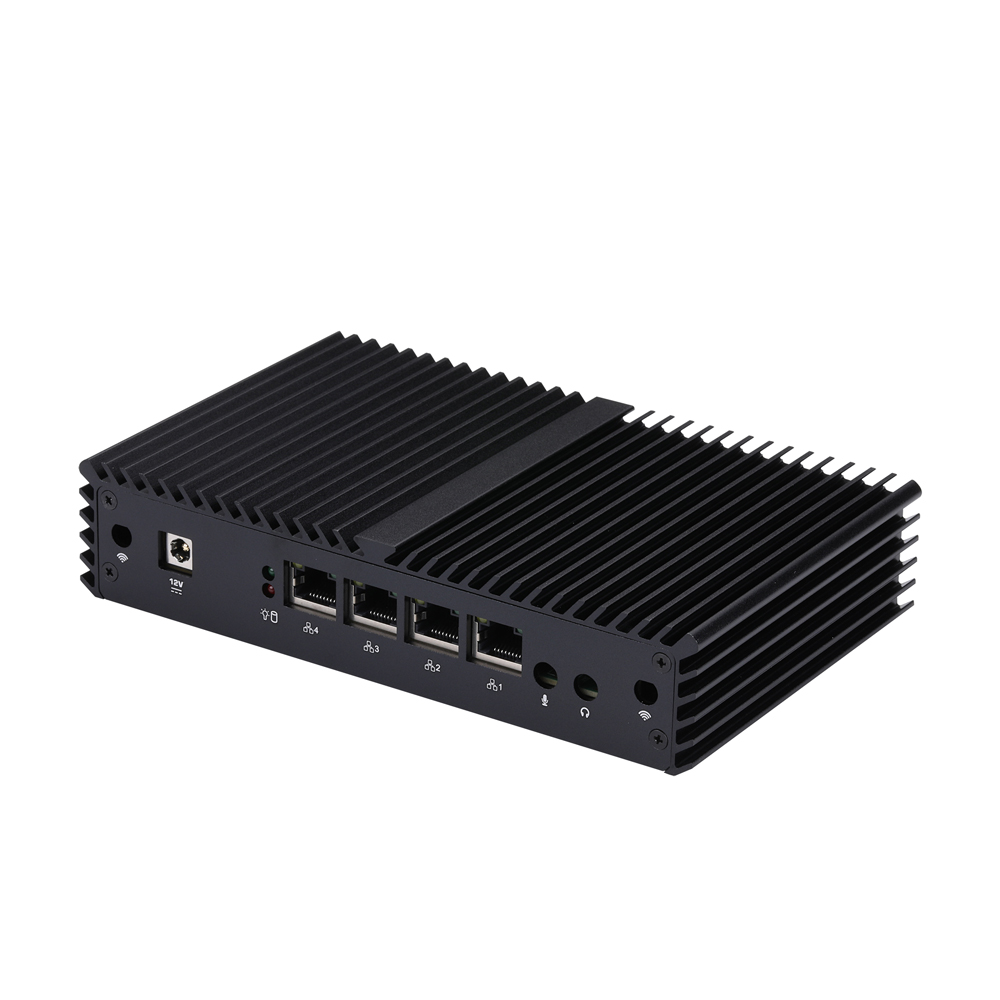

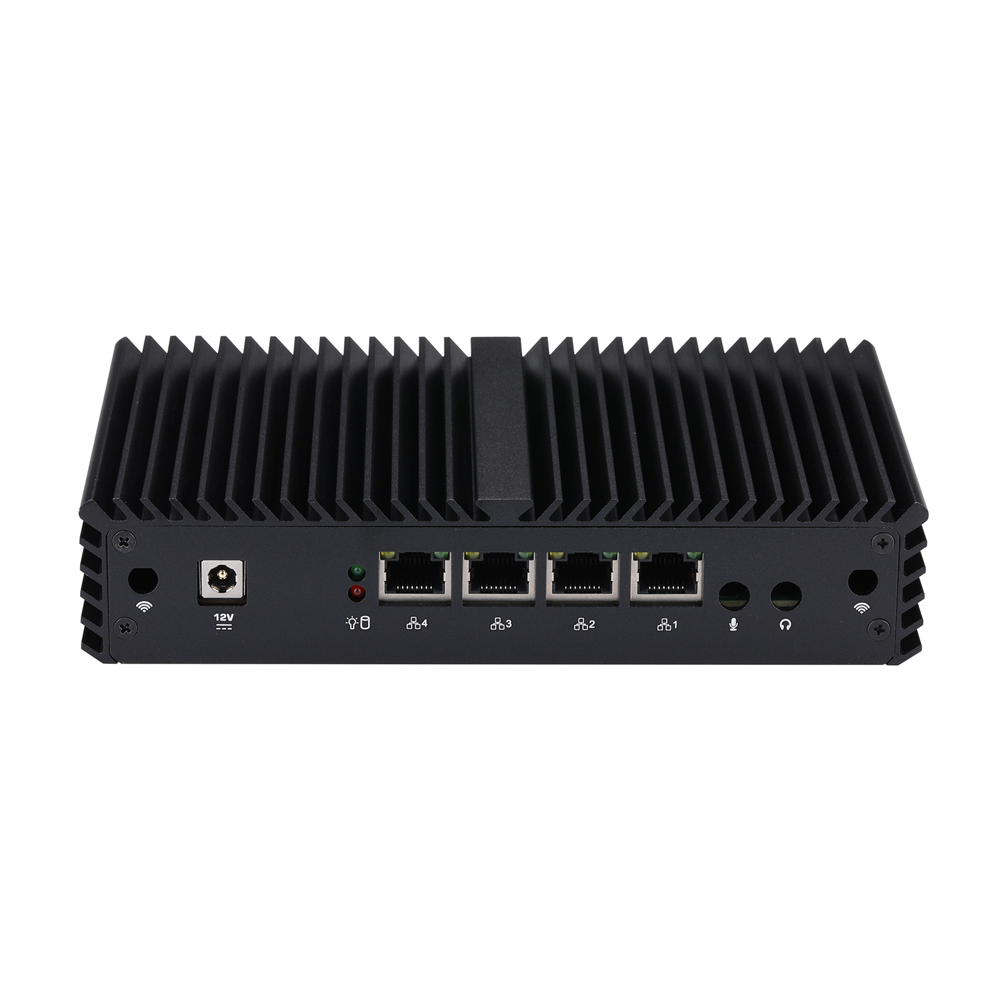

Rear I/O
Power1 × DC Jack
LED1 × Power LED, 1 × HDD LED
LAN4 × Intel I211-AT/I210-AT Gigabit LAN
Audio0
Storage
Type1 × Mini PCIe for mSATA SSD
Expansion
mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe
Full-length for 4G
Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
VGA0
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4850
DC-inNo
Power Requirement
Power Adapter12V4A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension182 × 111 × 38mm
Weight0.79kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 7, Windows 8, Windows 10, Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

mini pc

Models & options

Ordering and Specifications Information

Quick Order Model: Q335G4-S06

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q301G4S05HaswellCeleron2955U221.4GHz/2MIntel HD Graphics15W
Q302G4S05HaswellCeleron3558U221.7GHz/2MIntel HD Graphics15W
Q330G4S05HaswellCore i34005U241.7GHz/3MIntel HD 440015W
Q350G4S05HaswellCore i54200U241.6GHz2.6GHz3MIntel HD 440015W
Q370G4S05HaswellCore i74500U241.8GHz3.0GHz4MIntel HD 440015W
Q330G4YS05HaswellCore i34010Y241.3GHz/3MIntel HD 420011.5W
Q350G4YS05HaswellCore i54200Y241.4GHz1.9GHz3MIntel HD 420011.5W
Q305G4S05BroadwellCeleron3205U221.5GHz/2MIntel HD Graphics15W
Q310G4S05BroadwellCeleron3215U221.7GHz/2MIntel HD Graphics15W
Q320G4S05BroadwellPentium3805U221.9GHz/2MIntel HD Graphics15W
Q335G4S05BroadwellCore i35005U242.0GHz/3MIntel HD 550015W
Q355G4S05BroadwellCore i55200U242.2GHz2.7GHz3MIntel HD 550015W
Q375G4S05BroadwellCore i75500U242.4GHz3.0GHz4MIntel HD 550015W
Q301G4S05
Case
S05
Code Name
Haswell
Processor Type
Celeron
Processor Number
2955U
# of Cores
2
# of Threads
2
Base Frequency
1.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q302G4S05
Case
S05
Code Name
Haswell
Processor Type
Celeron
Processor Number
3558U
# of Cores
2
# of Threads
2
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q330G4S05
Case
S05
Code Name
Haswell
Processor Type
Core i3
Processor Number
4005U
# of Cores
2
# of Threads
4
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 4400
TDP
15W
Q350G4S05
Case
S05
Code Name
Haswell
Processor Type
Core i5
Processor Number
4200U
# of Cores
2
# of Threads
4
Base Frequency
1.6GHz
Max Turbo Frequency
2.6GHz
Cache
3M
Processor Graphics
Intel HD 4400
TDP
15W
Q370G4S05
Case
S05
Code Name
Haswell
Processor Type
Core i7
Processor Number
4500U
# of Cores
2
# of Threads
4
Base Frequency
1.8GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel HD 4400
TDP
15W
Q330G4YS05
Case
S05
Code Name
Haswell
Processor Type
Core i3
Processor Number
4010Y
# of Cores
2
# of Threads
4
Base Frequency
1.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 4200
TDP
11.5W
Q350G4YS05
Case
S05
Code Name
Haswell
Processor Type
Core i5
Processor Number
4200Y
# of Cores
2
# of Threads
4
Base Frequency
1.4GHz
Max Turbo Frequency
1.9GHz
Cache
3M
Processor Graphics
Intel HD 4200
TDP
11.5W
Q305G4S05
Case
S05
Code Name
Broadwell
Processor Type
Celeron
Processor Number
3205U
# of Cores
2
# of Threads
2
Base Frequency
1.5GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q310G4S05
Case
S05
Code Name
Broadwell
Processor Type
Celeron
Processor Number
3215U
# of Cores
2
# of Threads
2
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q320G4S05
Case
S05
Code Name
Broadwell
Processor Type
Pentium
Processor Number
3805U
# of Cores
2
# of Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
Q335G4S05
Case
S05
Code Name
Broadwell
Processor Type
Core i3
Processor Number
5005U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 5500
TDP
15W
Q355G4S05
Case
S05
Code Name
Broadwell
Processor Type
Core i5
Processor Number
5200U
# of Cores
2
# of Threads
4
Base Frequency
2.2GHz
Max Turbo Frequency
2.7GHz
Cache
3M
Processor Graphics
Intel HD 5500
TDP
15W
Q375G4S05
Case
S05
Code Name
Broadwell
Processor Type
Core i7
Processor Number
5500U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel HD 5500
TDP
15W

PC Case Options

CategorySATA Support
S05Yes
S06-
1U02Yes

Custom Options

CategoryDescription
Audio2
USB 2.02
Serial Port1 × RS-232
GPIO1
