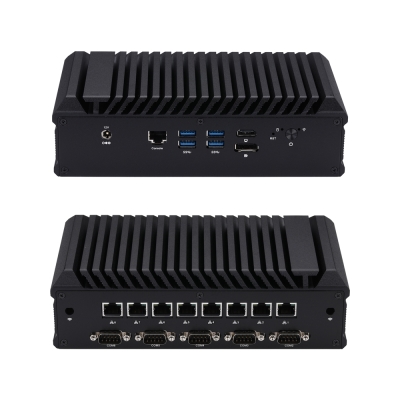

Mini PC Q30900GEX S20 Series
Q30900GEX mini PC with 8×2.5G LAN and 6×COM ports supports high-speed networking and industrial control. Ideal for firewall, router, and edge computing applications.
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI
4 × USB 3.0
1 × M.2, 2 × Mini PCIe, 1 × SATA 3.0
1 × RS-232 (RJ-45), 5 × RS-232 (DB9)
8 × Intel I225-V/I226-V 2.5 Gigabit LAN
| Processor System | |
| CPU | Intel 8thWhiskey Lake-U Processor Intel 8th Coffee Lake-U Processor Intel 10th Comet lake-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 8 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Watch Dog | Yes |

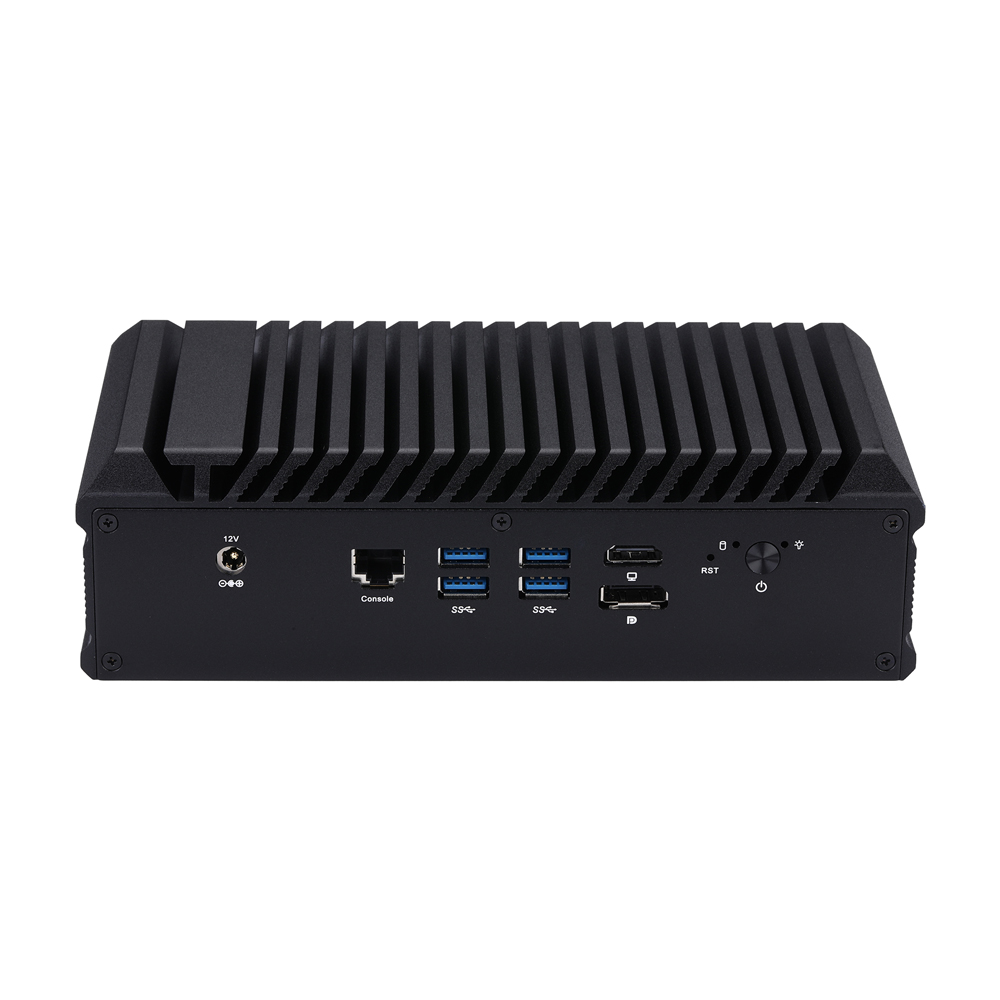

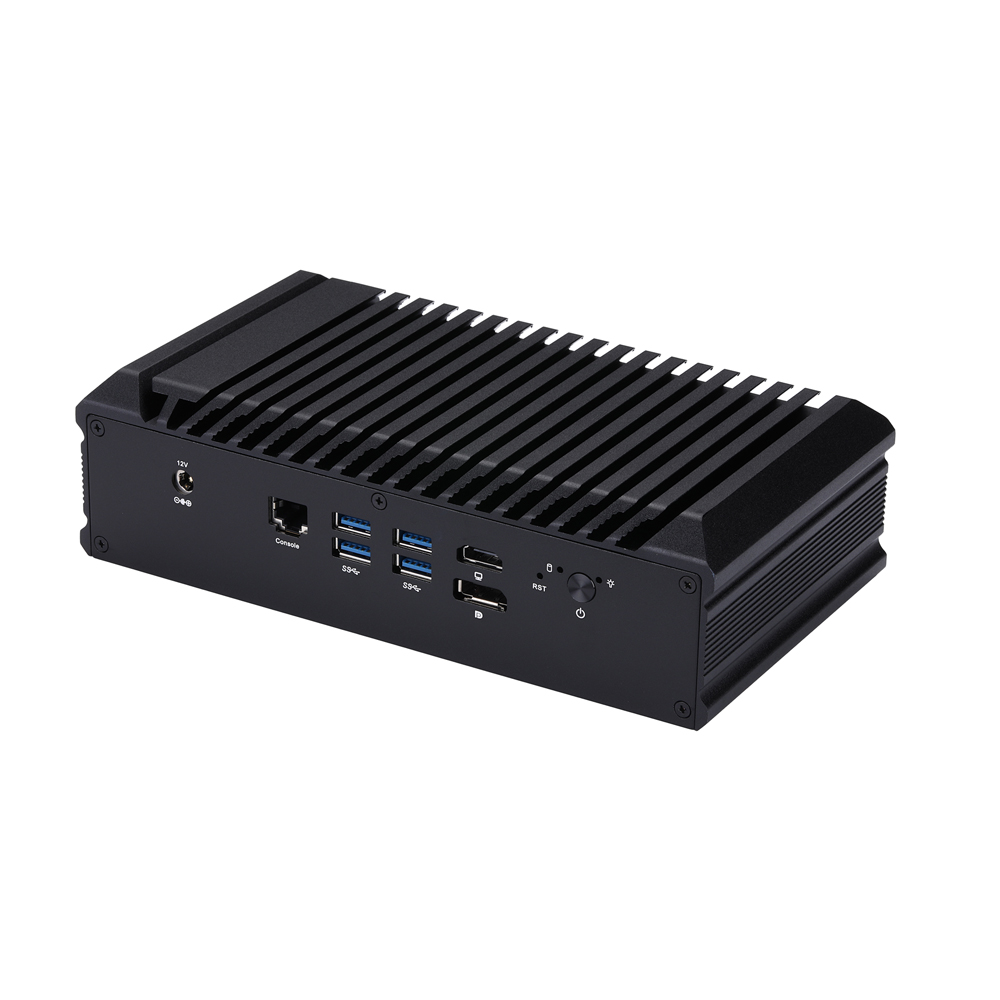

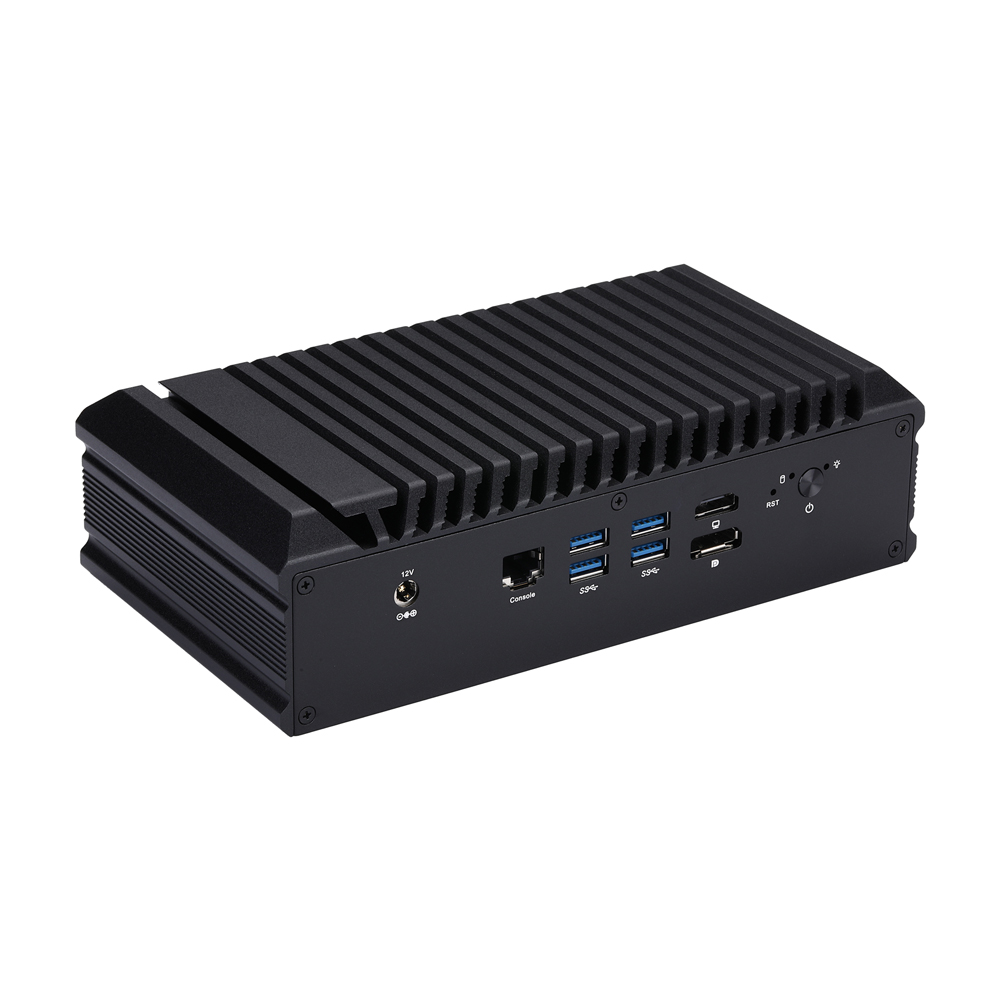

| Front I/O | |
| Power Button | 1 |
| Reset Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 4 × USB 3.0 |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × Display Port |
| Serial Port | 1 × RS-232 Port (RJ-45) |

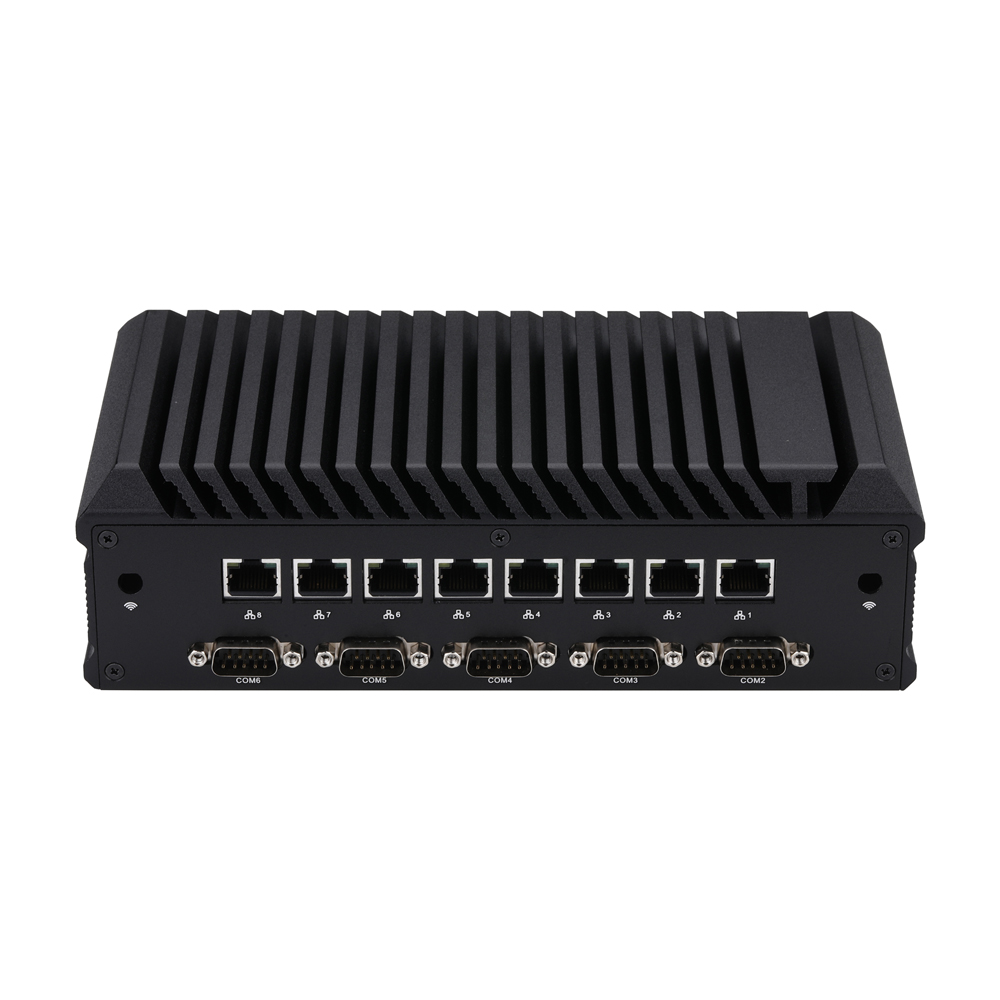

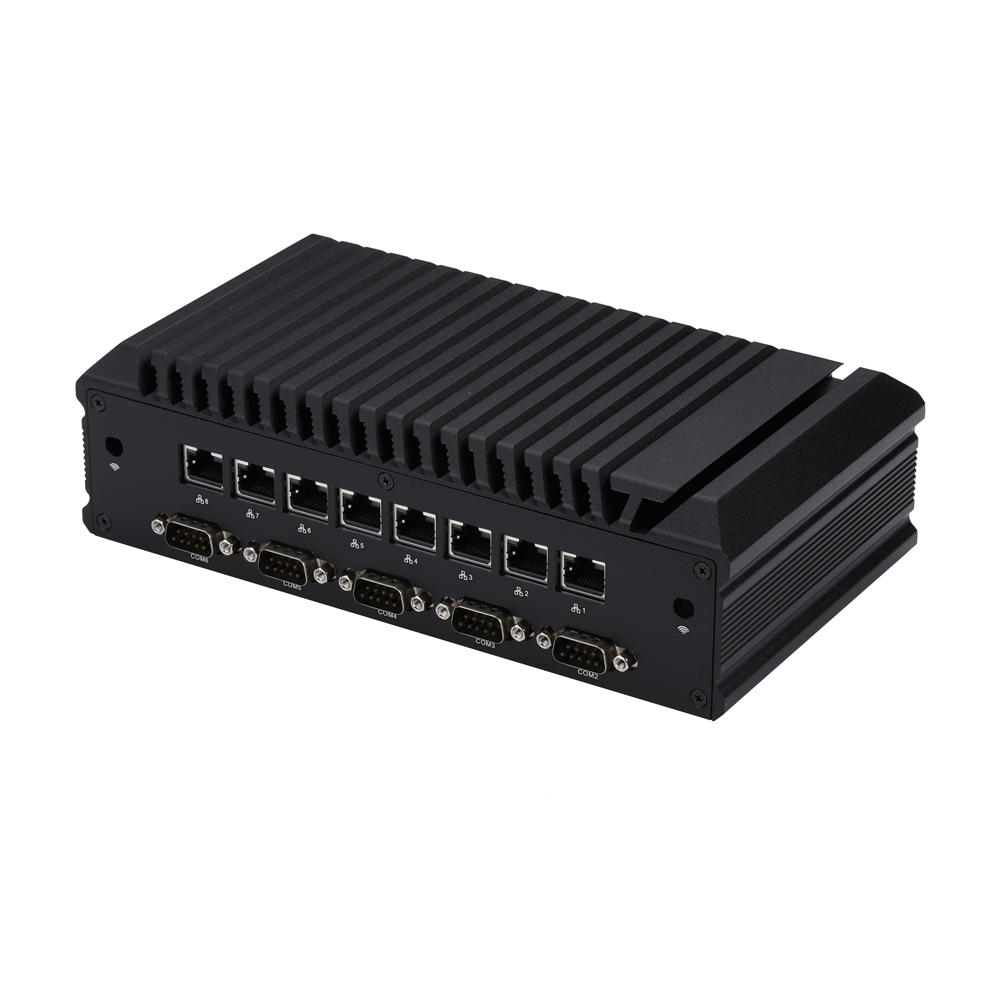

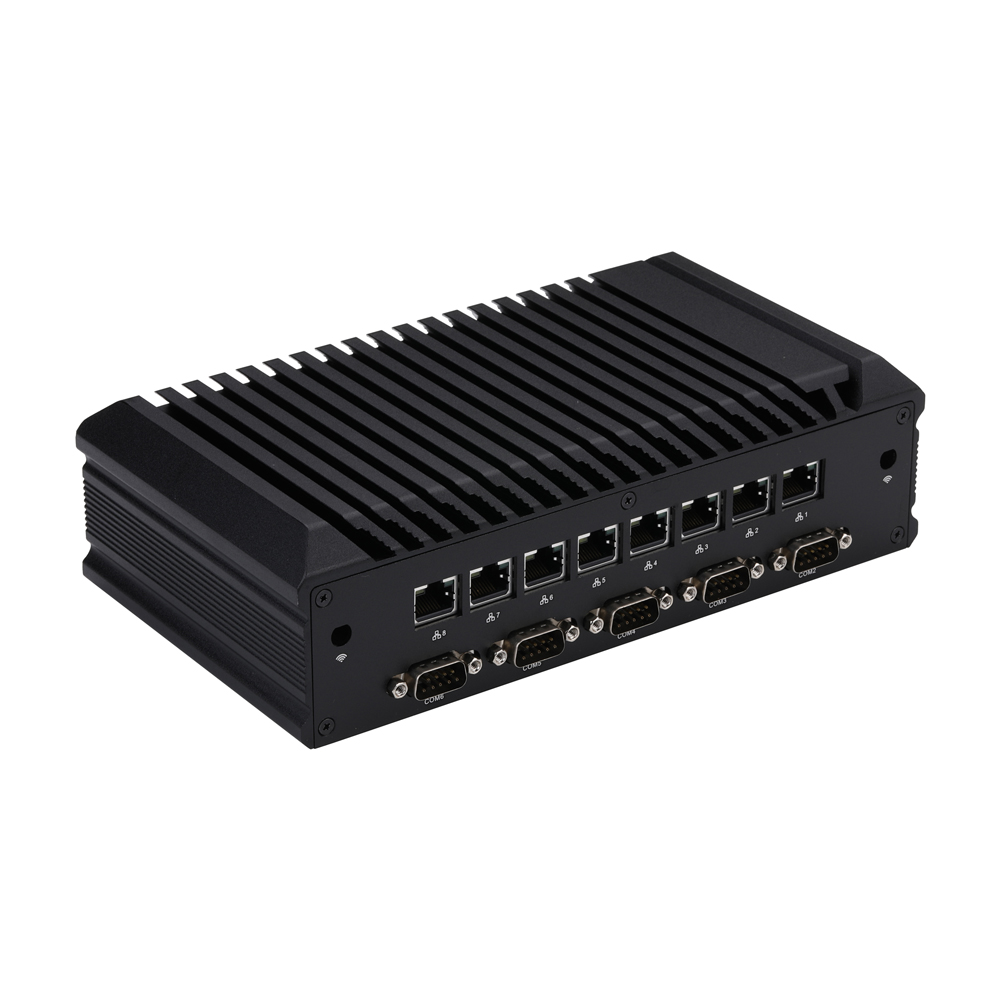

| Rear I/O | |
| LAN | 8 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Serial Port | 5 × RS-232 Ports (DB9) (COM2/3 Support 5V/12V) |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi (Default Only Support USB Device) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 2, COM2/3 can be set up as RS-485 |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 221 × 121 × 62mm |
| Weight | 1.47kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q1012GE-S10
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q1012GE (Q30912GE) | S10 | Whiskey Lake | Celeron | 4305U | 2 | 2 | 2.2GHz | / | 2M | Intel UHD Graphics | 15W |
Q1020GE (Q30921GE) | S10 | Whiskey Lake | Pentium | 5405U | 2 | 4 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
Q1030GE (Q30931GE) | S10 | Whiskey Lake | Core i3 | 8145U | 2 | 4 | 2.1GHz | 3.9GHz | 4M | Intel UHD Graphics | 15W |
Q1051GE (Q30951GE) | S10 | Whiskey Lake | Core i5 | 8265U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics | 15W |
Q1070GE (Q30971GE) | S10 | Whiskey Lake | Core i7 | 8565U | 4 | 8 | 1.8GHz | 4.6GHz | 8M | Intel UHD Graphics | 15W |
Q1052GE (Q30952GE) | S10 | Coffee Lake | Core i5 | 8260U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics 620 | 15W |
Q1015GE (Q31011GE) | S10 | Comet Lake | Celeron | 5205U | 2 | 2 | 1.9GHz | / | 2M | Intel UHD Graphics | 15W |
Q1016GE (Q31012GE) | S10 | Comet Lake | Celeron | 5305U | 2 | 2 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
Q1025GE (Q31021GE) | S10 | Comet Lake | Pentium | 6405U | 2 | 4 | 2.4GHz | / | 2M | Intel UHD Graphics | 15W |
Q1035GE (Q31031GE) | S10 | Comet Lake | Core i3 | 10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4M | Intel UHD Graphics | 15W |
Q1055GE (Q31051GE) | S10 | Comet Lake | Core i5 | 10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6M | Intel UHD Graphics | 15W |
Q1075GE (Q31071GE) | S10 | Comet Lake | Core i7 | 10610U | 4 | 8 | 1.8GHz | 4.9GHz | 8M | Intel UHD Graphics | 15W |
Q1076GE (Q31072GE) | S10 | Comet Lake | Core i7 | 10810U | 6 | 12 | 1.1GHz | 4.9GHz | 12M | Intel UHD Graphics | 15W |
Q1077GE (Q31073GE) | S10 | Comet Lake | Core i7 | 10710U | 6 | 12 | 1.1GHz | 4.7GHz | 12M | Intel UHD Graphics | 15W |
PC Case Options
| Category | SATA Support |
| S10 | Yes |
| S13 | Yes |
| S20 | Yes |
| 1U07 | Yes |
Custom Options
| Category | Description |
| Serial Port | 5 × RS-232 |
| VGA | 1 |
| USB 2.0 | 6 |
| GPIO | 1 |
| RS-485 | 2 |
| TPM 2.0 | 1 (SLB9665) |
