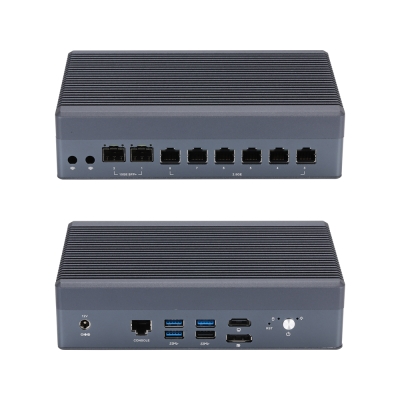

Mini PC Q30900UE S23 Series

Q30900UE industrial mini PC features Intel 8th/9th/10th Gen processor support with 6×2.5G LAN and 2×10G SFP+ ports. Built for enterprise gateways, embedded networking, data communication, and industrial applications.

Total of Network Interfaces
8
SFP(+)
2
10G RJ45
0
2.5G RJ45
6
1G RJ45
0
Serial Ports
1
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

  • Intel 8th Whiskey Lake-U Processor

  • Intel 8th Coffee Lake-U Processor

  • Intel 10th Comet lake-U Processor

  • 1 × Display Port, 1 × HDMI

  • 3 × USB 3.0, 1 × USB 2.0

  • 3 × M.2, 1 × SATA 3.0

  • 1 × RS-232 (RJ-45)

  • 6 × Intel I226-V 2.5G LAN

  • 2, Intel X710-BM2 10G SFP+

Specifications

Processor System
CPU• Intel 8thWhiskey Lake-U Processor
• Intel 8th Coffee Lake-U Processor
• Intel 10th Comet lake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset6 × Intel I225-V/I226-V 2.5G LAN
2, Intel X710-BM2 10G SFP+ (10GbE/1GbE)
Watch DogYes

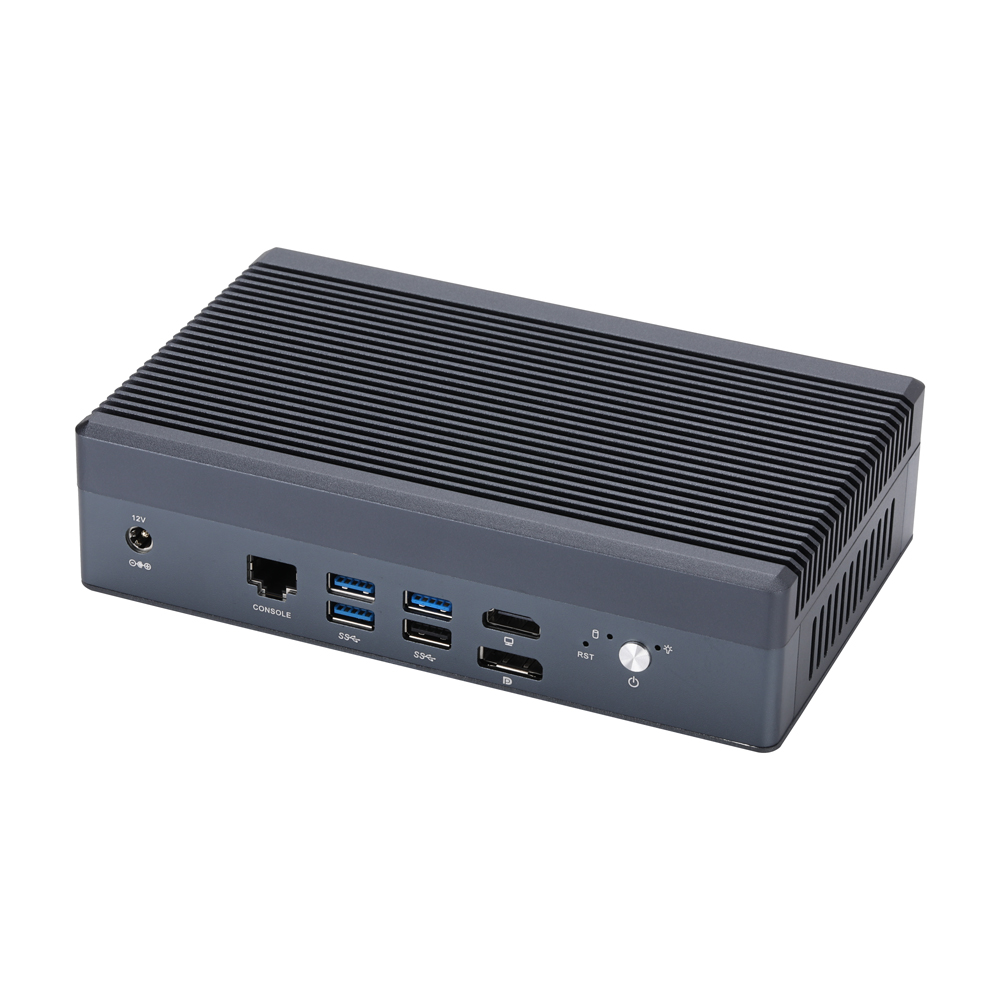

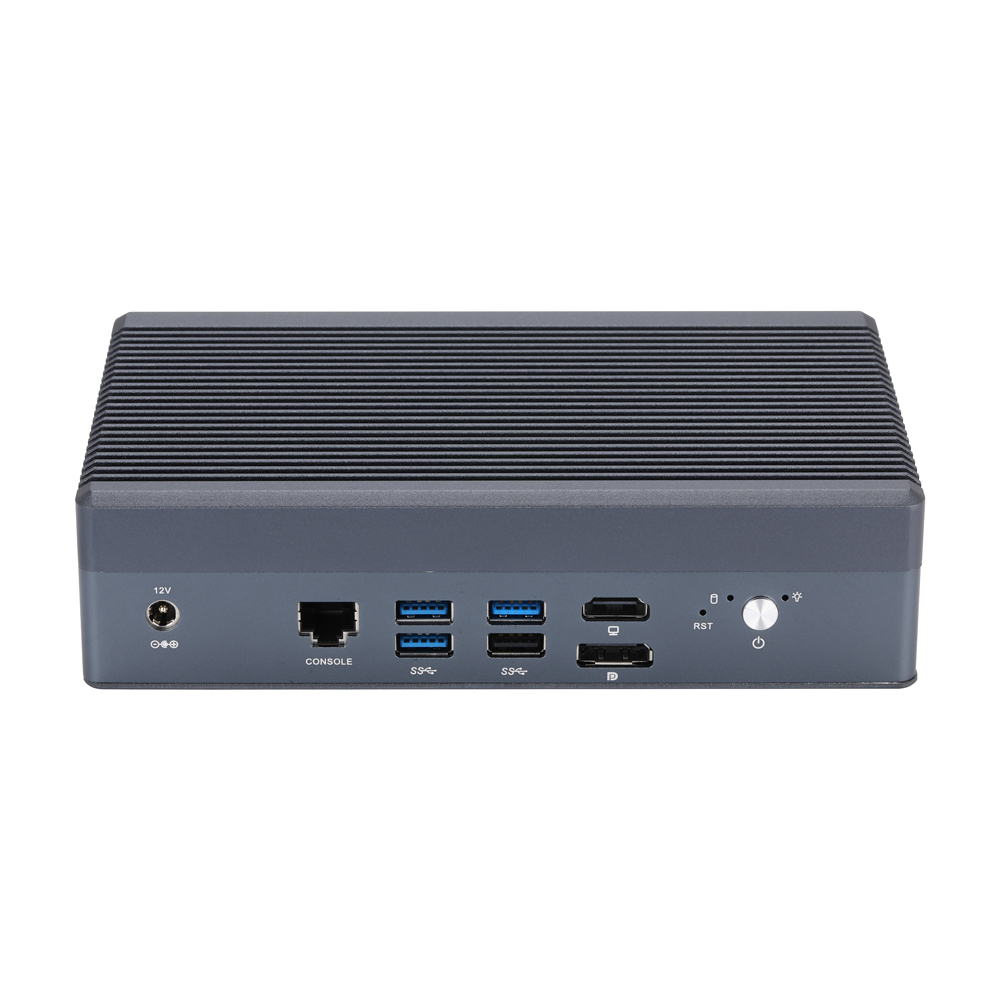

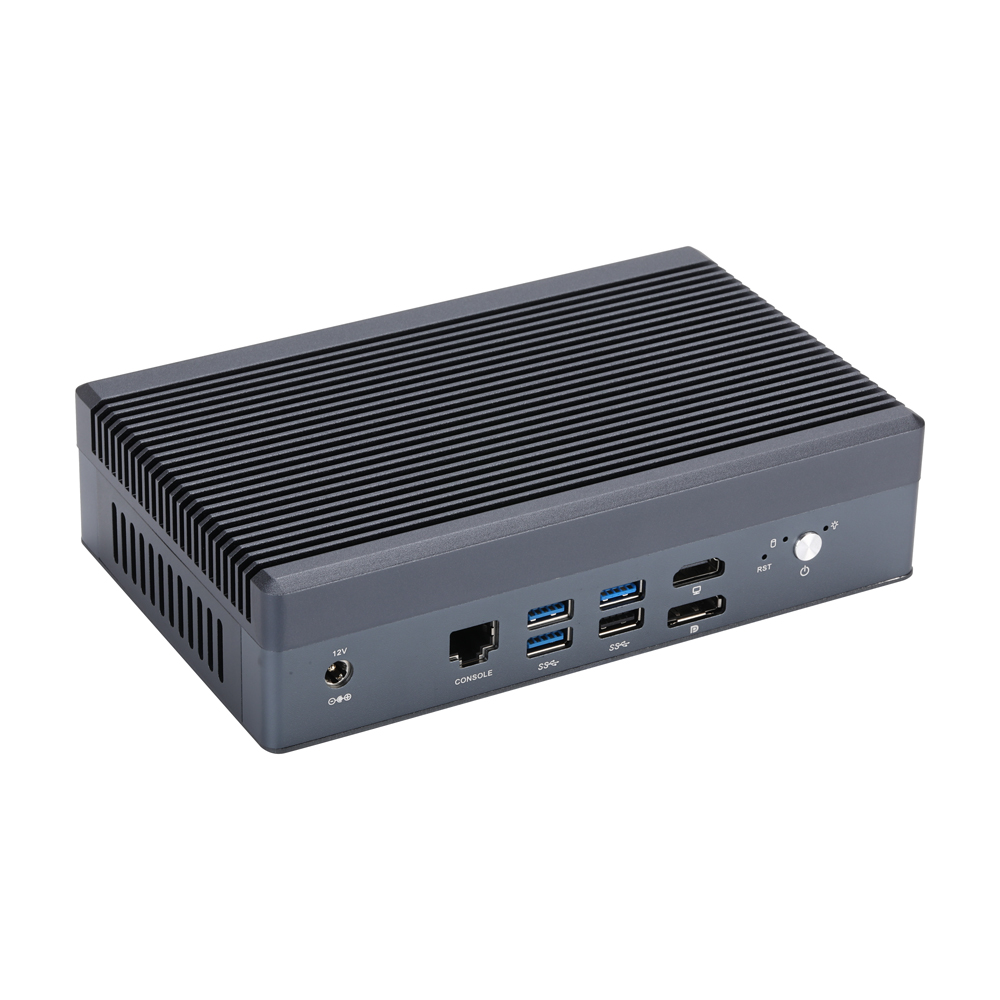

Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB3 × USB 3.0, 1 × USB 2.0
Power1 × DC Jack
Video Output1 × HDMI, 1 × Display Port
Serial Port1 × RS-232 Port (RJ-45)

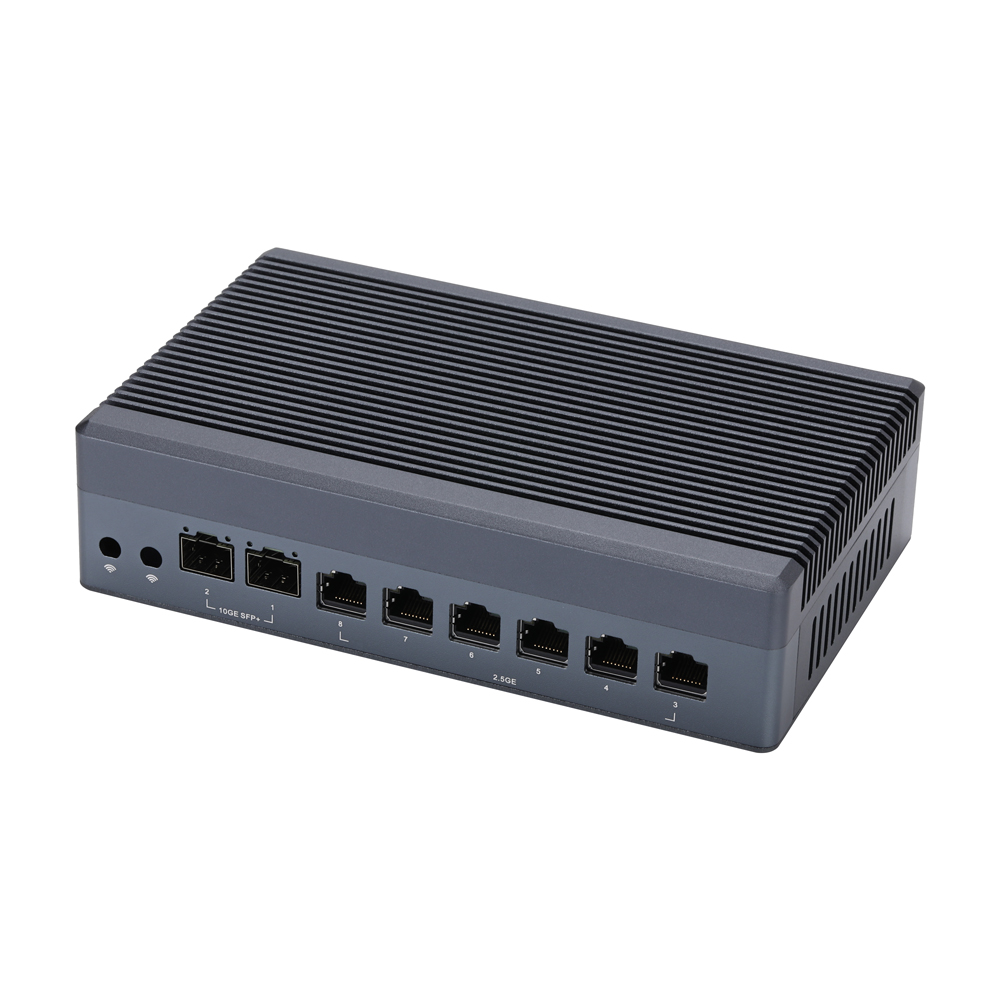

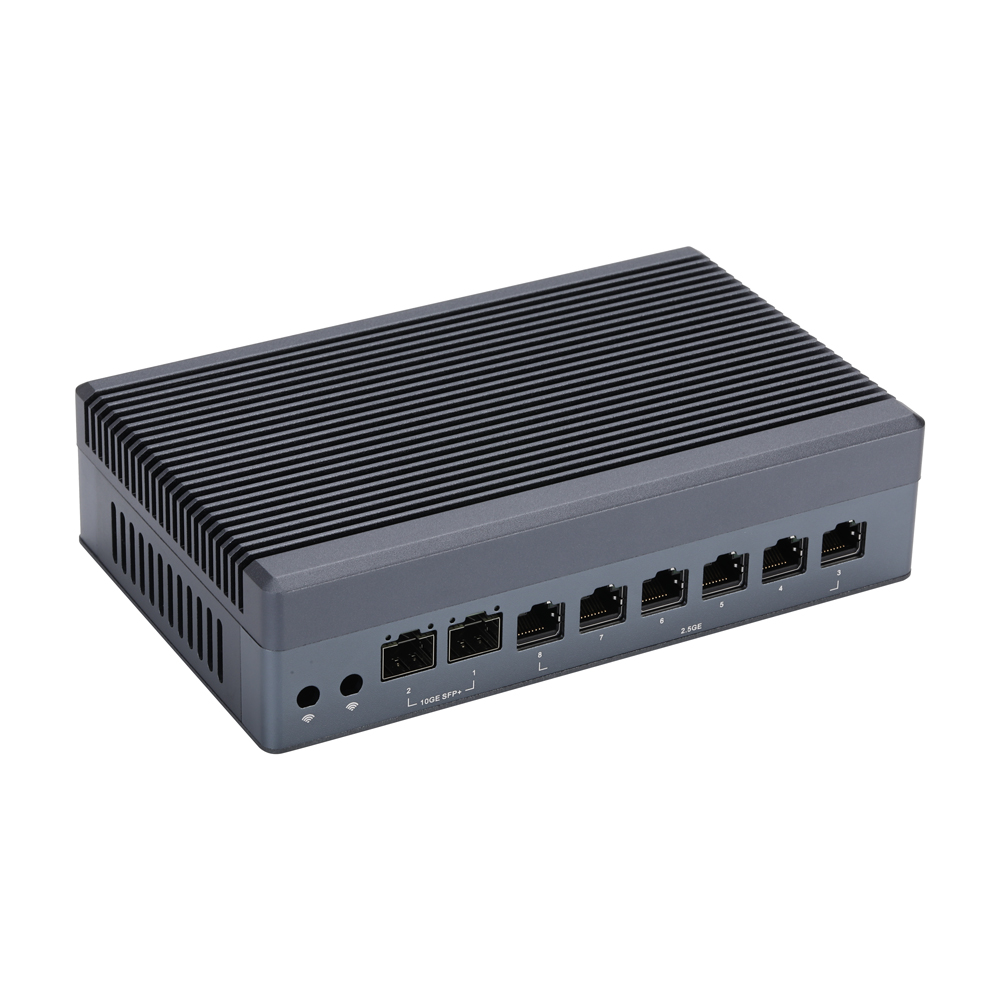

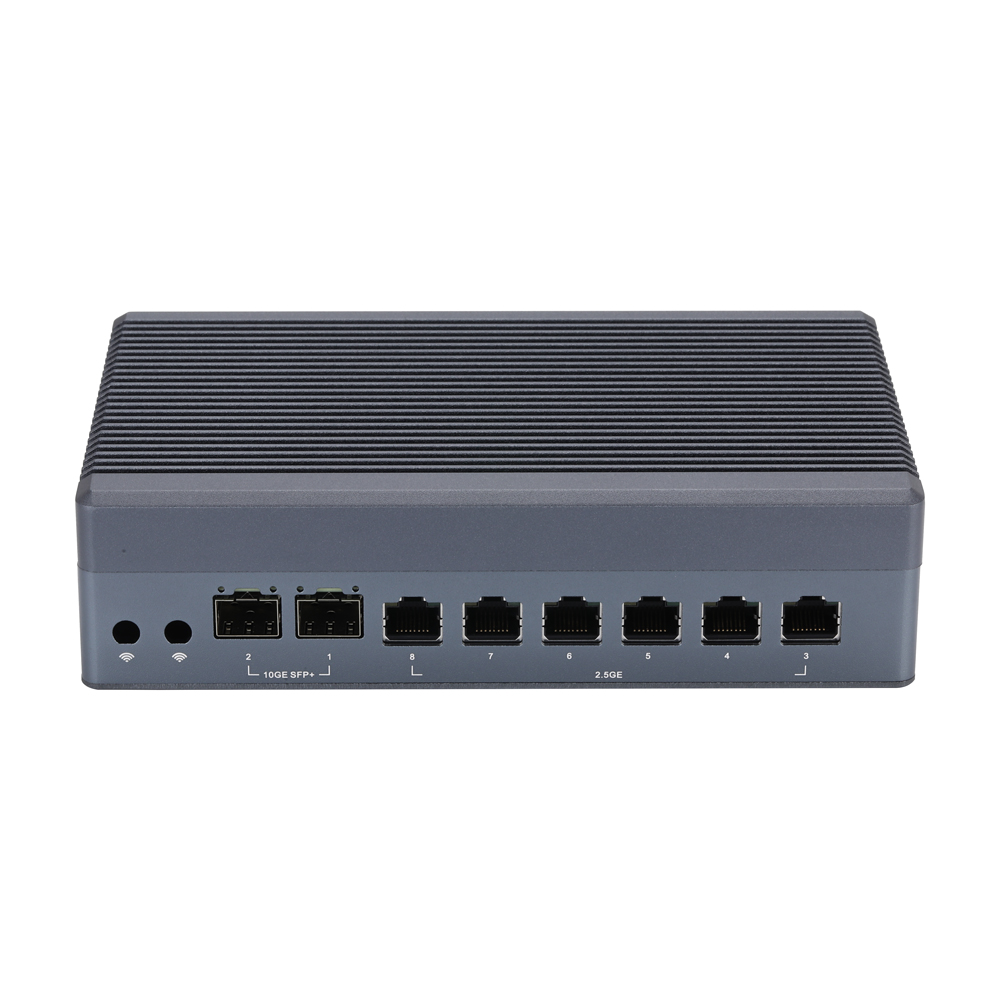

Rear I/O
LAN6 × 2.5G LAN
SFP+2 × 10G SFP+
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD, (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
M.21 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G
(B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Only For Core Series
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter12V7A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension196 × 122 × 50mm
Weight1.19kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo

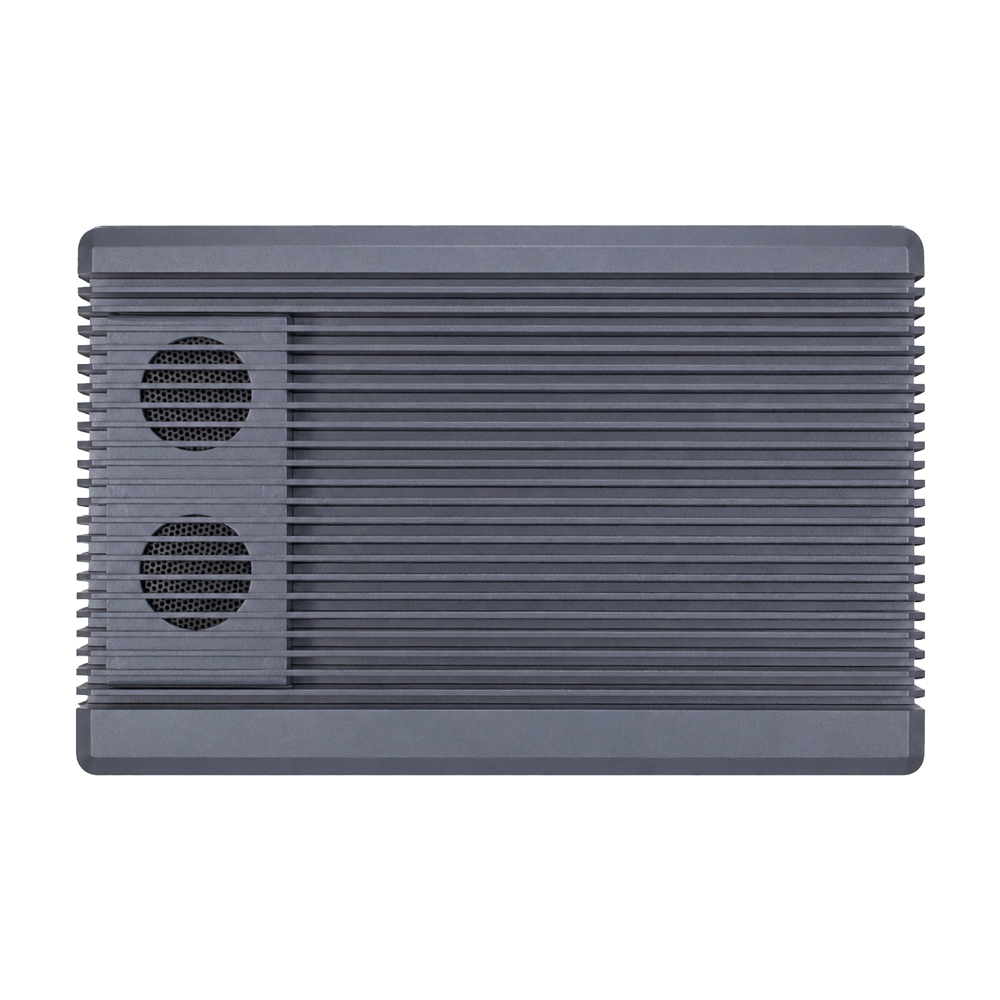

Cooling ModeFanless Design, Fan-assisted Cooling
OS Support
OSWindows 10, Linux

In the box


Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

Models & options

Ordering and Specifications Information

Quick Order Model: Q30912UE-S23

Ordering CodeCaUECode Name Processor TypeProcessor Number# of Cores# of ThreadsBaUE FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q30912UES23Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W
Q30921UES23Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W
Q30931UES23Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W
Q30951UES23Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W
Q30971UES23Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W
Q30952UES23Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W
Q31011UES23Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W
Q31012UES23Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W
Q31021UES23Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W
Q31031UES23Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W
Q31051UES23Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W
Q31071UES23Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W
Q31072UES23Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W
Q31073UES23Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W
Q30912UES23
CaUE
S23
Code Name
Whiskey Lake
Processor Type
Celeron
Processor Number
4305U
# of Cores
2
# of Threads
2
BaUE Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q30921UES23
CaUE
S23
Code Name
Whiskey Lake
Processor Type
Pentium
Processor Number
5405U
# of Cores
2
# of Threads
4
BaUE Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q30931UES23
CaUE
S23
Code Name
Whiskey Lake
Processor Type
Core i3
Processor Number
8145U
# of Cores
2
# of Threads
4
BaUE Frequency
2.1GHz
Max Turbo Frequency
3.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q30951UES23
CaUE
S23
Code Name
Whiskey Lake
Processor Type
Core i5
Processor Number
8265U
# of Cores
4
# of Threads
8
BaUE Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q30971UES23
CaUE
S23
Code Name
Whiskey Lake
Processor Type
Core i7
Processor Number
8565U
# of Cores
4
# of Threads
8
BaUE Frequency
1.8GHz
Max Turbo Frequency
4.6GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q30952UES23
CaUE
S23
Code Name
Coffee Lake
Processor Type
Core i5
Processor Number
8260U
# of Cores
4
# of Threads
8
BaUE Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 620
TDP
15W
Q31011UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5205U
# of Cores
2
# of Threads
2
BaUE Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31012UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5305U
# of Cores
2
# of Threads
2
BaUE Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31021UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Pentium
Processor Number
6405U
# of Cores
2
# of Threads
4
BaUE Frequency
2.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31031UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Core i3
Processor Number
10110U
# of Cores
2
# of Threads
4
BaUE Frequency
2.1GHz
Max Turbo Frequency
4.1GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31051UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Core i5
Processor Number
10210U
# of Cores
4
# of Threads
8
BaUE Frequency
1.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31071UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10610U
# of Cores
4
# of Threads
8
BaUE Frequency
1.8GHz
Max Turbo Frequency
4.9GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31072UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10810U
# of Cores
6
# of Threads
12
BaUE Frequency
1.1GHz
Max Turbo Frequency
4.9GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31073UES23
CaUE
S23
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10710U
# of Cores
6
# of Threads
12
BaUE Frequency
1.1GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

PC CaUE Options

CategorySATA Support
S23Yes
1U15Yes

Custom Options

CategoryDescription
USB 2.06
GPIO1
RS-4852
TPM 2.01 (SLB9665)
