Mini PC Q30900X S10 Series

Q30900X mini PC offers dual 2.5G LAN, triple display output, 6 COM ports, USB 3.0, and M.2 expansion. Ideal for industrial control, automation, and multi-serial port applications.

NIC
2
USB
8
RS-232
6
RS-485
2，COM1/2 Can Be Set Up As RS-485
VGA
Yes
PS/2
1
GPIO
Yes
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

  • Intel 8th Whiskey Lake-U Processor

  • Intel 8th Coffee Lake-U Processor

  • Intel 10th Comet lake-U Processor

  • 1 × Display Port, 1 × HDMI, 1 × VGA

  • 4 × USB 3.0, 4 × USB 2.0

  • 2 × M.2, 1 × Mini PCIe, 1 × SATA 3.0

  • 6 × RS-232, 1 × PS/2

  • 2 × Intel I225-V/I226-V 2.5 Gigabit LAN

SPECIFICATION


Processor System
CPUIntel 8thWhiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Intel I225-V/I226-V 2.5 Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

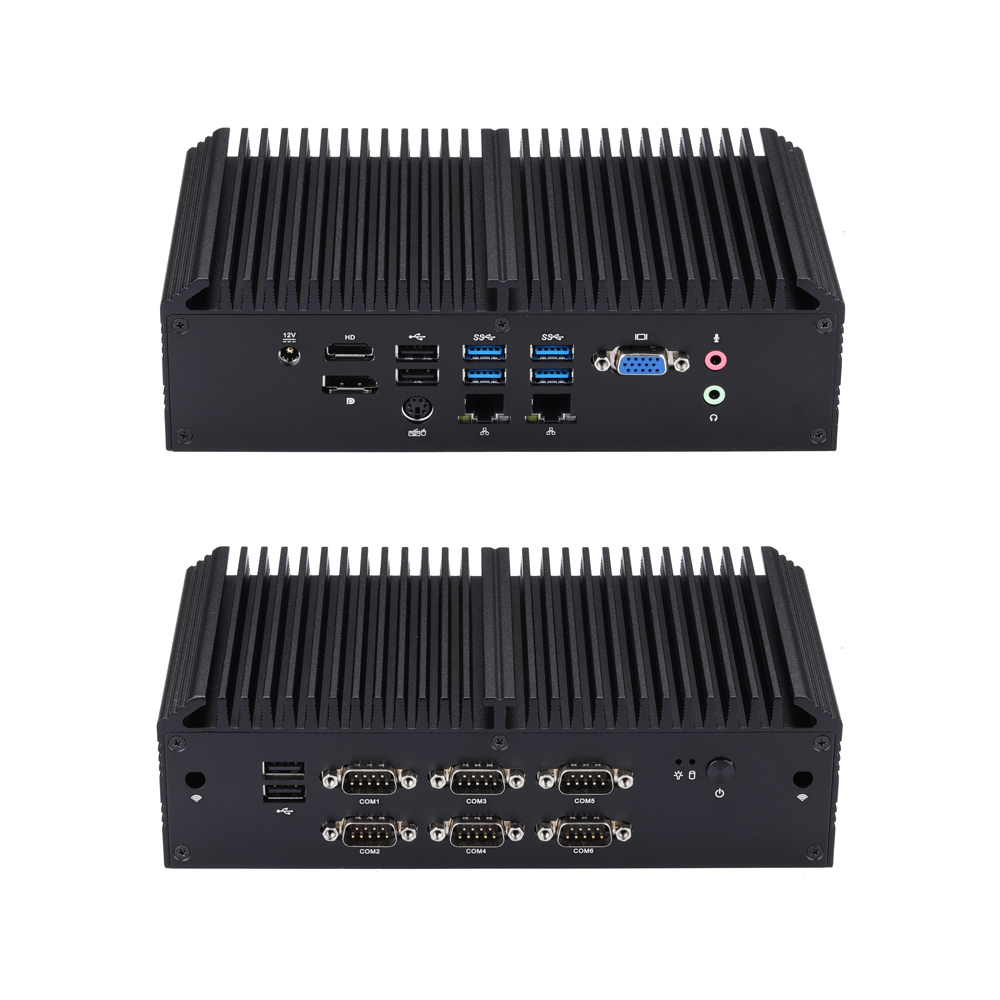

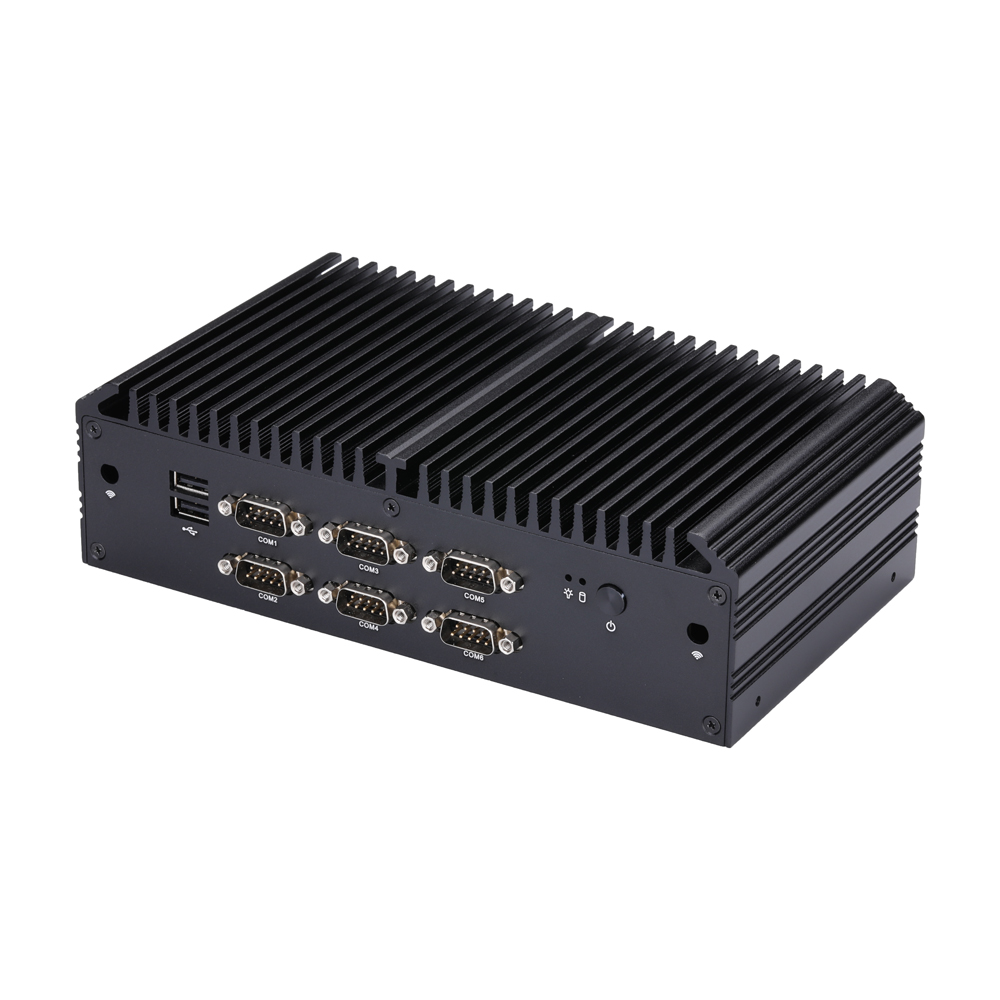

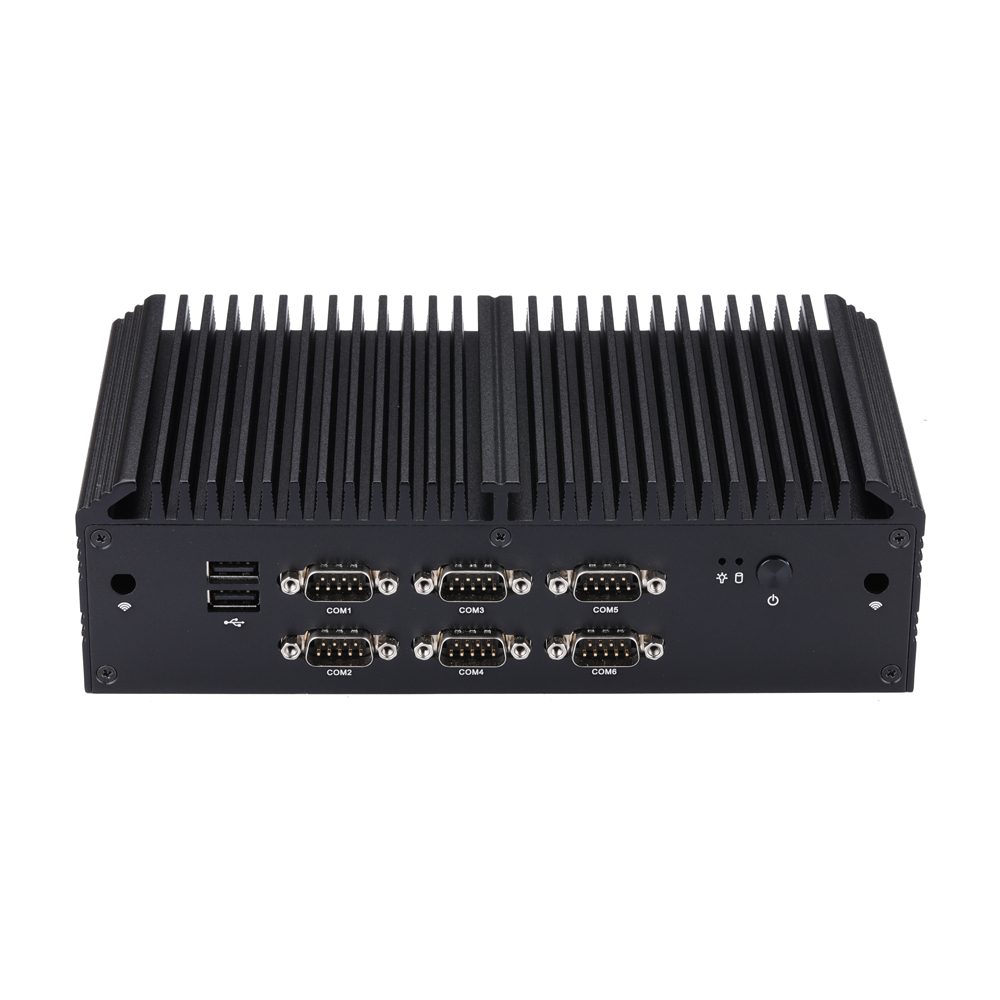

Front I/O
Power Button1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 2.0 (Not for 5405U)
Serial Port6 × RS-232 (COM1/2 can be set up as RS-485,
Support 5V/12V)

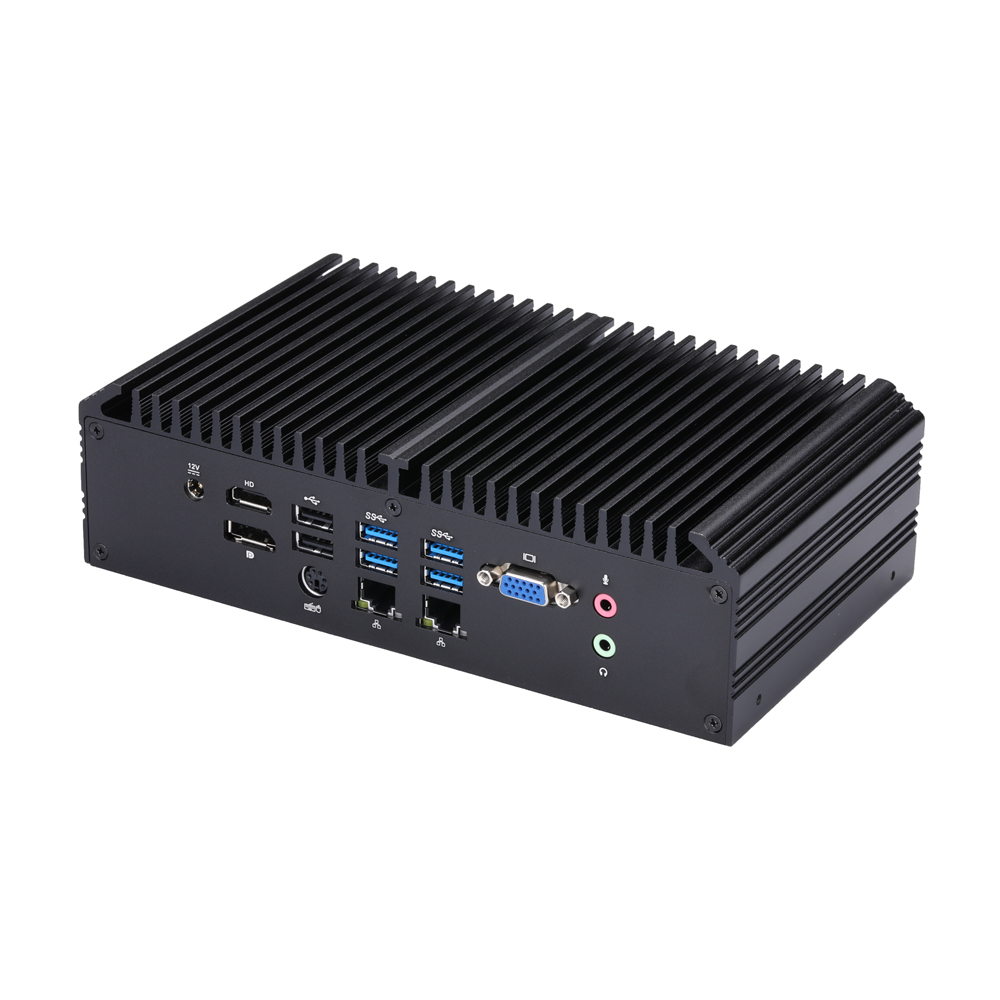

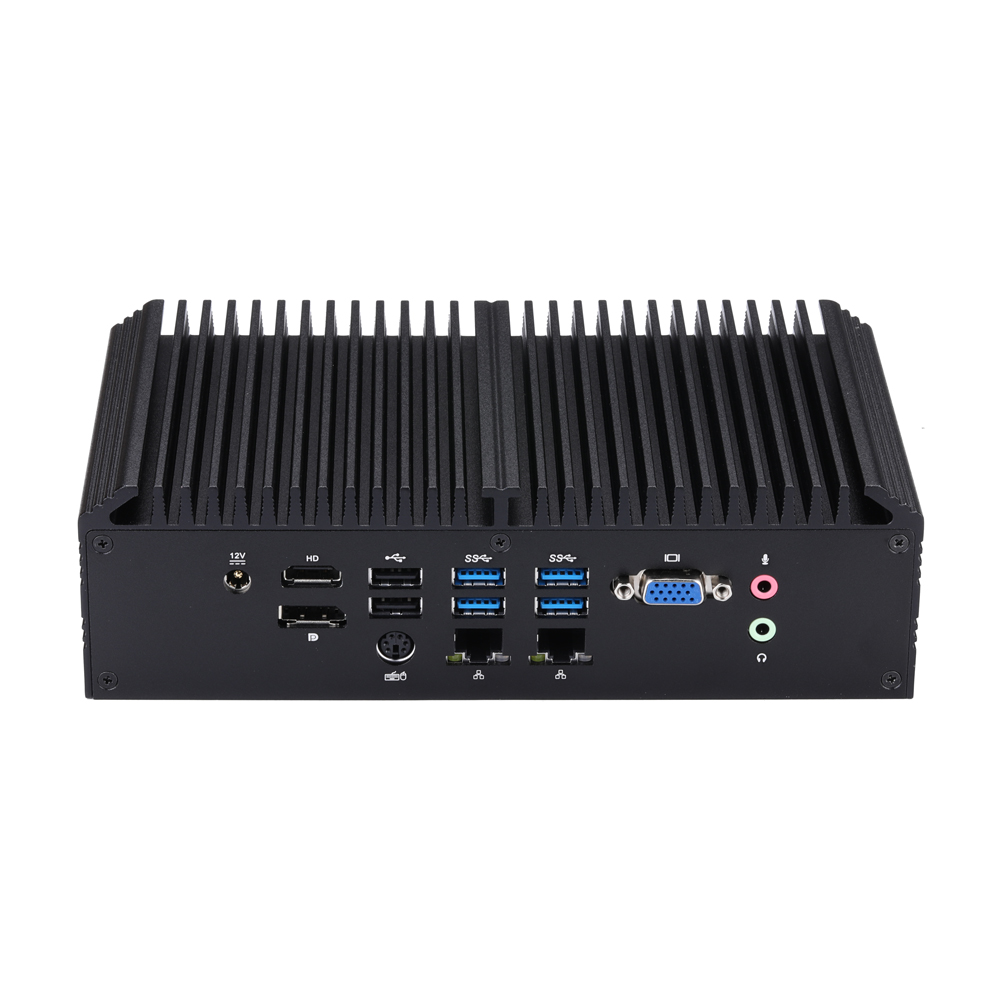

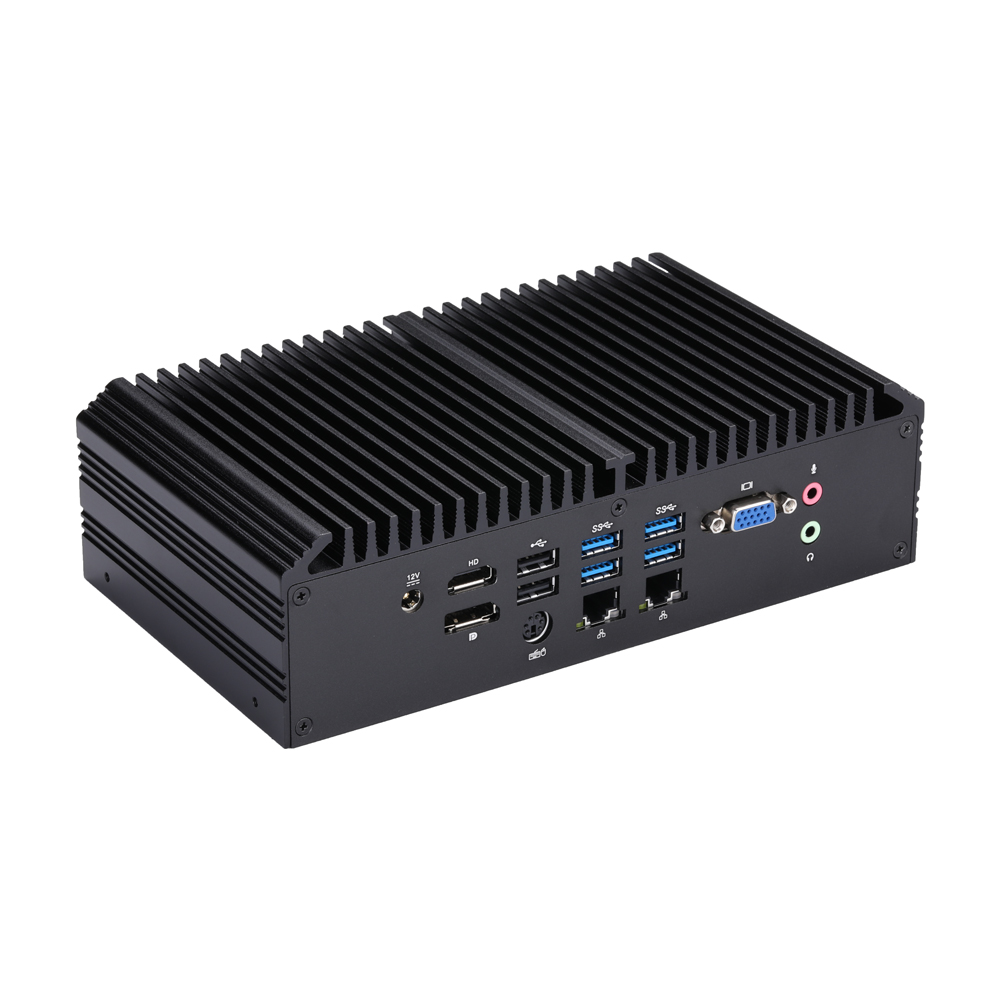

Rear I/O
Power1 × DC Jack
Video Output1 × Display Port, 1 × HDMI, 1 × VGA
LAN2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB4 × USB 3.0, 2 × USB 2.0
Audio1 × Mic-in, 1 × Line-out
PS/21 × PS/2 (Mouse or Keyboard)
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280)
Expansion
Mini PCIe1 × Mini PCIe
Full-length for 4G, Half-length for Wi-Fi
M.21 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4852
DC-inNo
Power Requirement
Power Adapter12V3A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension217 × 122 × 62mm
Weight1.44kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 10, Linux

PACKING

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

ORDERING

Ordering and Specifications Information

Quick Order Model: Q1012X-S10

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP

Q1012X

(Q30912X)

S10Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W

Q1020X

(Q30921X)

S10Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W

Q1030X

(Q30931X)

S10Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W

Q1051X

(Q30951X)

S10Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W

Q1070X

(Q30971X)

S10Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W

Q1052X

(Q30952X)

S10Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W

Q1015X

(Q31011X)

S10Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W

Q1016X

(Q31012X)

S10Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W

Q1025X

(Q31021X)

S10Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W

Q1035X

(Q31031X)

S10Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W

Q1055X

(Q31051X)

S10Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W

Q1075X

(Q31071X)

S10Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W

Q1076X

(Q31072X)

S10Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W

Q1077X

(Q31073X)

S10Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W

Q1012X

(Q30912X)

S10
Case
S10
Code Name
Whiskey Lake
Processor Type
Celeron
Processor Number
4305U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1020X

(Q30921X)

S10
Case
S10
Code Name
Whiskey Lake
Processor Type
Pentium
Processor Number
5405U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1030X

(Q30931X)

S10
Case
S10
Code Name
Whiskey Lake
Processor Type
Core i3
Processor Number
8145U
# of Cores
2
# of Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
3.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1051X

(Q30951X)

S10
Case
S10
Code Name
Whiskey Lake
Processor Type
Core i5
Processor Number
8265U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1070X

(Q30971X)

S10
Case
S10
Code Name
Whiskey Lake
Processor Type
Core i7
Processor Number
8565U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.6GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1052X

(Q30952X)

S10
Case
S10
Code Name
Coffee Lake
Processor Type
Core i5
Processor Number
8260U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 620
TDP
15W

Q1015X

(Q31011X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5205U
# of Cores
2
# of Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1016X

(Q31012X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5305U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1025X

(Q31021X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Pentium
Processor Number
6405U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1035X

(Q31031X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Core i3
Processor Number
10110U
# of Cores
2
# of Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
4.1GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1055X

(Q31051X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Core i5
Processor Number
10210U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1075X

(Q31071X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10610U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.9GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1076X

(Q31072X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10810U
# of Cores
6
# of Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.9GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1077X

(Q31073X)

S10
Case
S10
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10710U
# of Cores
6
# of Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

PC Case Options

CategorySATA Support
S10Yes
S20Yes

Custom Options

CategoryDescription
GPIO1
RS-4852
