Mini PC Q31200C S10 Series
Q31200C mini PC with Alder/Raptor Lake CPU, dual 2.5G LAN, and triple display output is ideal for office workstations, digital signage, and business environments.
Main Features
Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 2 × HDMI
3 × USB 3.0, 5 × USB 2.0
3 × M.2, 1 × SATA 3.0
2 × RS-232
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
| Processor System | |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 3200MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

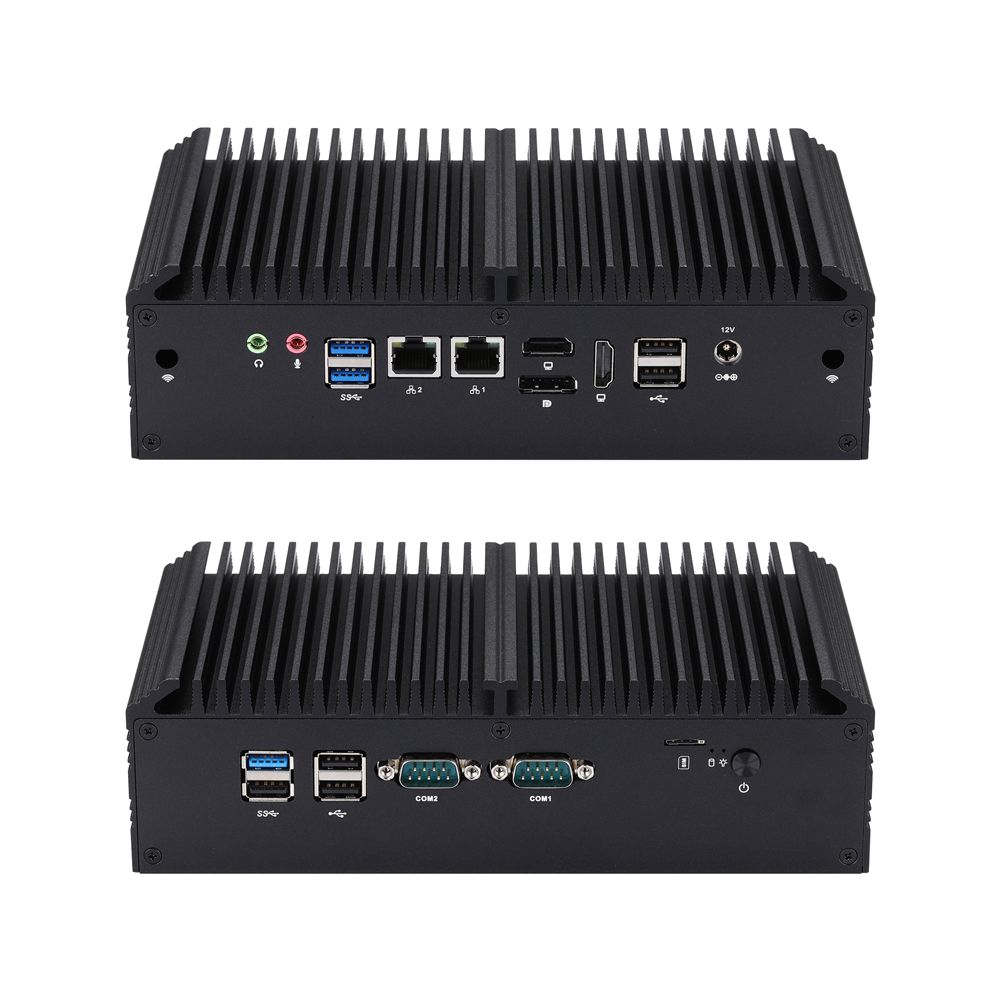

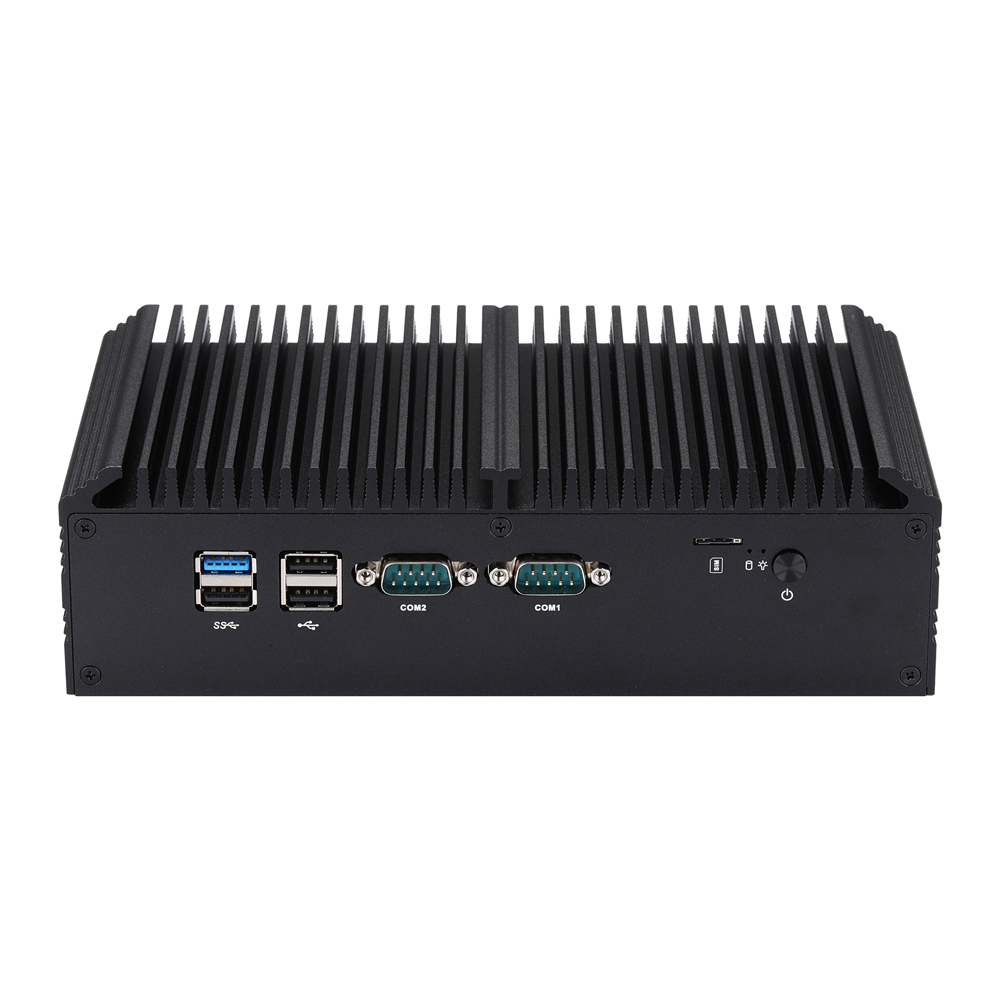

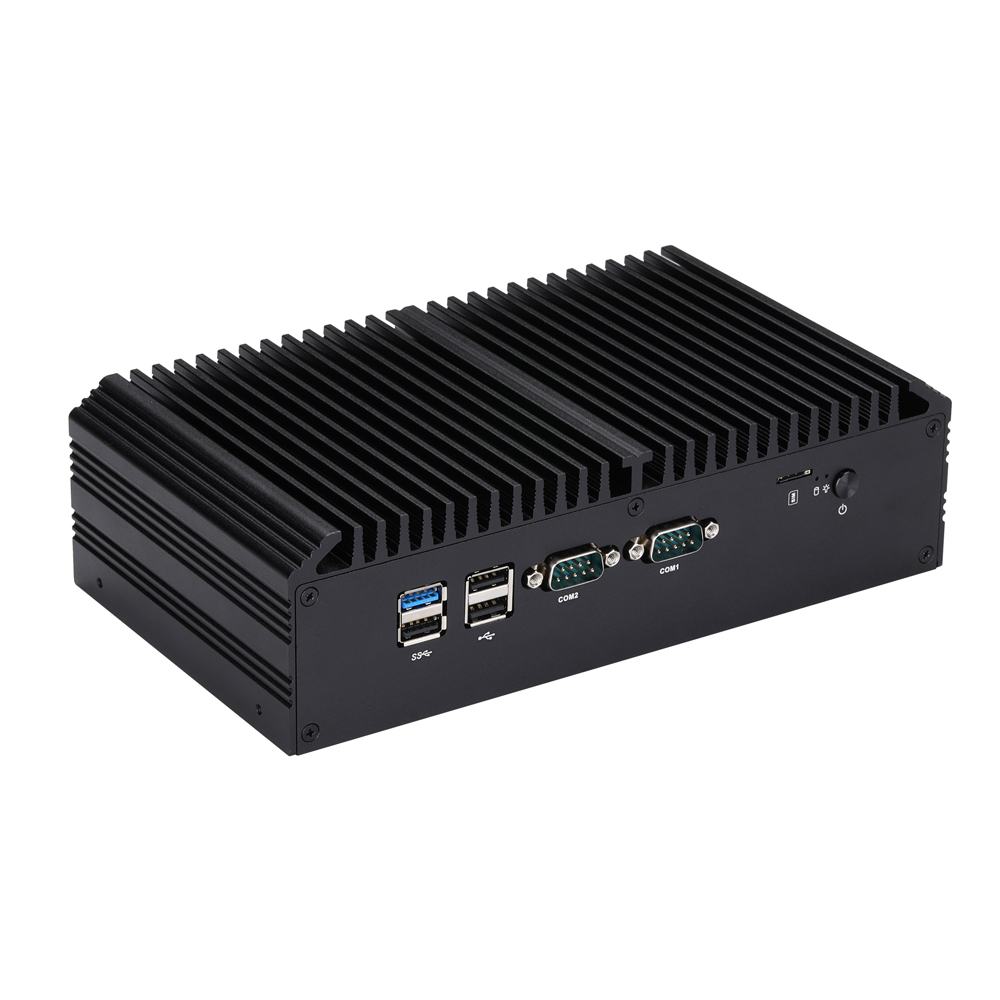

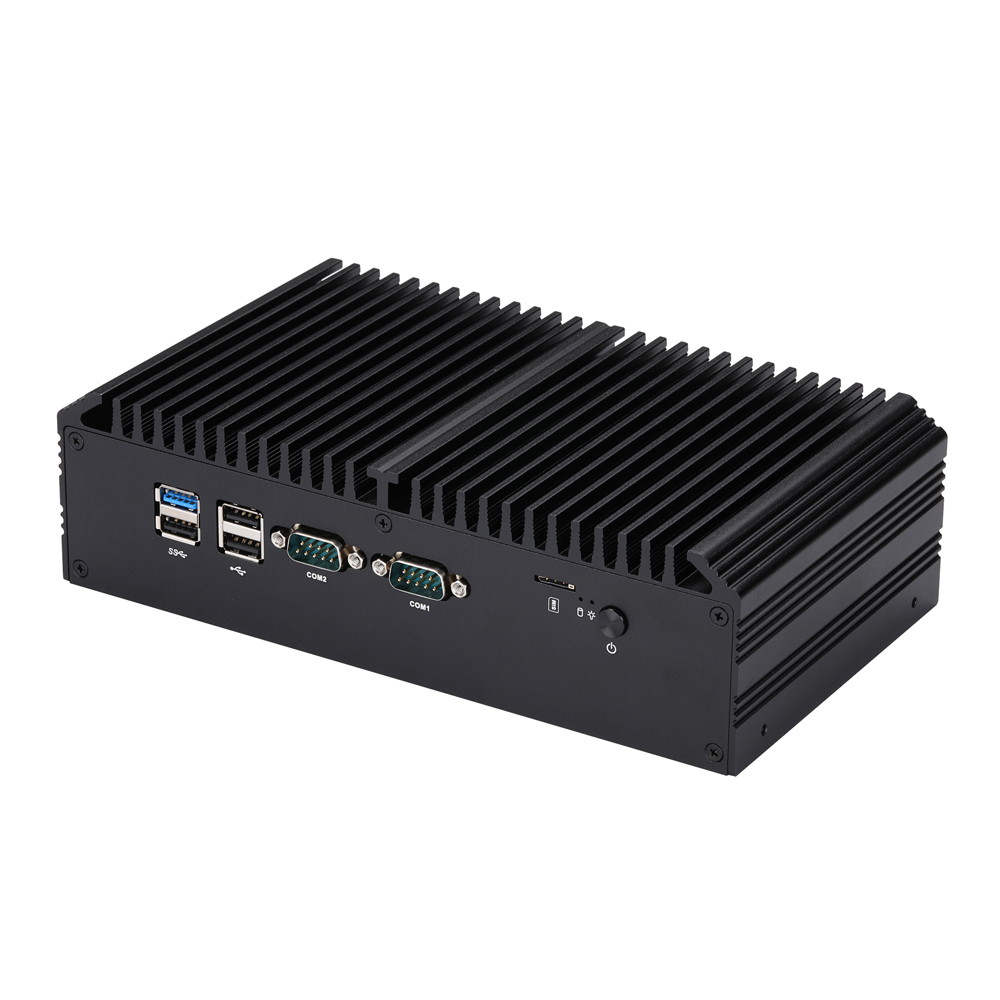

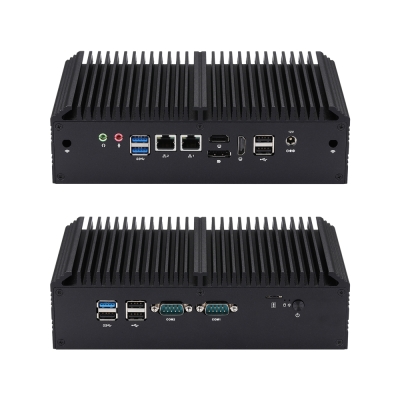

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Serial Port | 2 × RS-232 (COM1/2 Support 5V/12V) |
| SIM Card Slot | 1 |

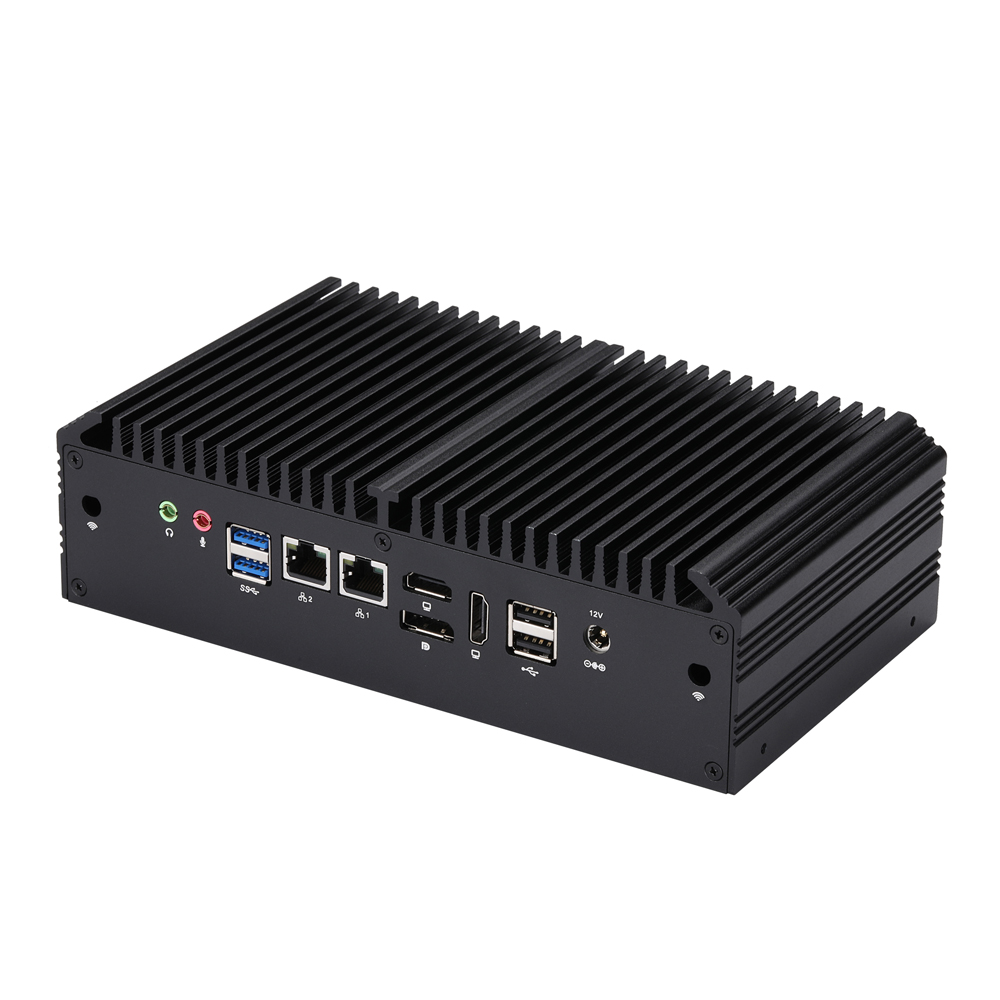

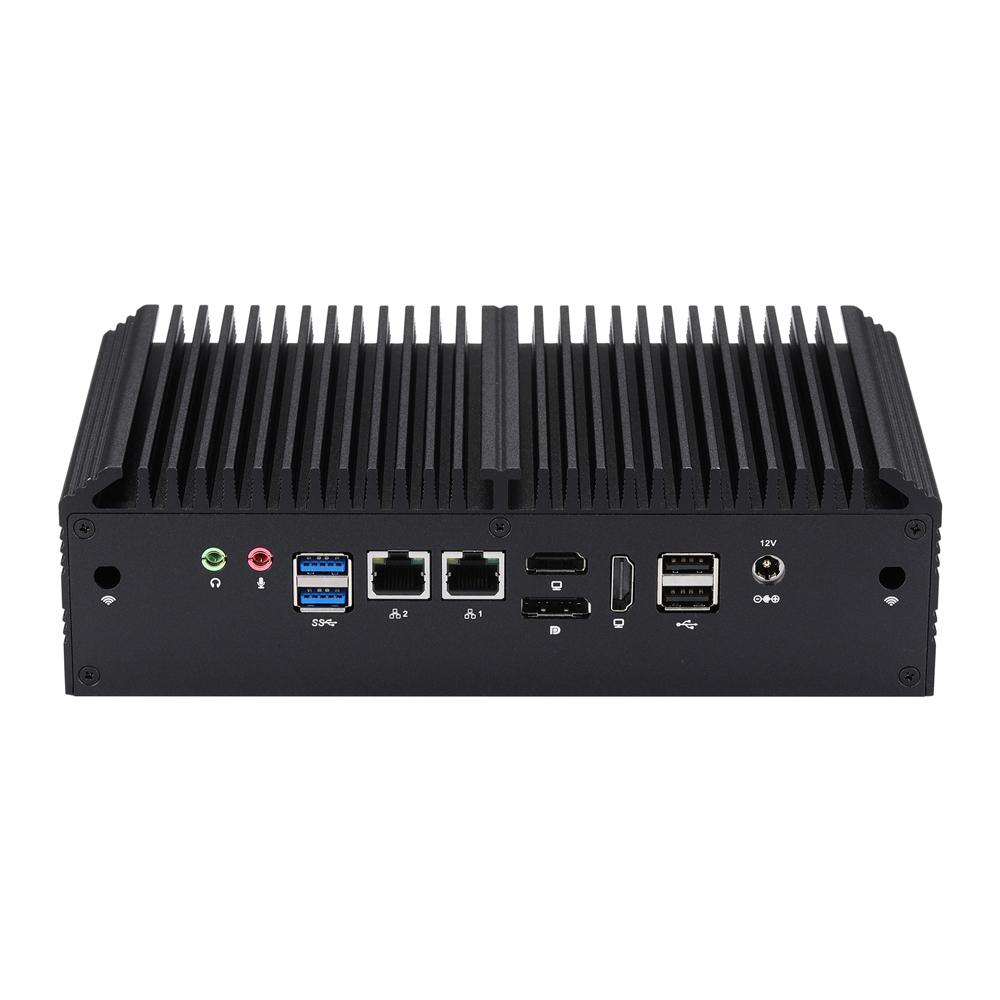

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 2 × HDMI |
| LAN | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| SIM Card Slot | 0 |
| AutoStart Jumper | 1, 2 × 5Pin, Pitch 2.54mm |
| CMOS Clear Jumper | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 2 × RS-232 (COM1/2 can be set up as RS- 485) |
| DC-in | 0 |
| Power Requirement | |
| Power Adapter | 19V4.74A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 217 × 122 × 62mm |
| Weight | 1.37kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design, Fan-assisted Cooling |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q31231C-S10
| Ordering Code | Q31211C | Q31221C | Q31231C | Q31251C | Q31271C |
| Case | S10 | S10 | S10 | S10 | S10 |
| Code Name | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 7305 | 8505 | 1215U | 1235U | 1255U |
| Total Cores | 5 | 5 | 6 | 10 | 10 |
| # of Performance-cores | 1 | 1 | 2 | 2 | 2 |
| # of Efficient-cores | 4 | 4 | 4 | 8 | 8 |
| # of Threads | 5 | 6 | 8 | 12 | 12 |
| Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Performance-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.20 GHz | 1.30 GHz | 1.70 GHz |
| Performance-core Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Efficient-core Base Frequency | 0.9 GHz | 0.9 GHz | 0.9 GHz | 0.9 GHz | 1.20 GHz |
| Efficient-core Max Turbo Frequency | - | 3.30 GHz | 3.30 GHz | 3.30 GHz | 3.50 GHz |
| Cache | 8M | 8M | 10M | 12M | 12M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 15-55W | 15-55W | 15-55W | 15-55W | 15-55W |
| Ordering Code | Q41231C | Q41251C | Q41271C | ||
| Case | S10 | S10 | S10 | ||
| Code Name | Alder Lake P | Alder Lake P | Alder Lake P | ||
| Processor Type | Core i3 | Core i5 | Core i7 | ||
| Processor Number | 1220P | 1240P | 1260P | ||
| Total Cores | 10 | 12 | 12 | ||
| # of Performance-cores | 2 | 4 | 4 | ||
| # of Efficient-cores | 8 | 8 | 8 | ||
| # of Threads | 12 | 16 | 16 | ||
| Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | ||
| Performance-core Base Frequency | 1.50 GHz | 1.70 GHz | 2.10 GHz | ||
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | ||
| Efficient-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.50 GHz | ||
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.40 GHz | ||
| Cache | 12M | 12M | 18M | ||
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible | ||
| TDP | 28-64W | 28-64W | 28-64W |
Ordering and Specifications Information
Quick Order Model: Q31231C-S10
| Ordering Code | Q51251C | Q51271C | Q51291C |
| Case | S10 | S10 | S10 |
| Code Name | Alder Lake H | Alder Lake H | Alder Lake H |
| Processor Type | Core i5 | Core i7 | Core i9 |
| Processor Number | 12450H | 12650H | 12900H |
| Total Cores | 8 | 10 | 14 |
| # of Performance-cores | 4 | 6 | 6 |
| # of Efficient-cores | 4 | 4 | 8 |
| # of Threads | 12 | 16 | 20 |
| Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Performance-core Base Frequency | 2.00 GHz | 2.30 GHz | 2.50 GHz |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Efficient-core Base Frequency | 1.50 GHz | 1.70 GHz | 1.80 GHz |
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.50 GHz | 3.80 GHz |
| Cache | 12M | 24M | 24M |
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 45-95W | 45-115W | 45-115W |
PC Case Options
| Category | SATA Support |
| S10 | Yes |
| S20 | Yes |
Custom Options
| Category | Description |
| GPIO | 1 |
| VGA | 1 |
| Serial Port | 4 × RS-232 |
| RS-485 | 2 |
| PS2 | 2 |
| TPM 2.0 | 1 (Z32H330TC) |
