Mini PC Q30900GE 1U07 Series

Q30900GE 1U rackmount mini PC with Intel 8th/10th Gen CPU, 8×2.5G LAN, DP+HDMI, rich I/O—designed for firewall, VPN router, and enterprise network security deployment.

Total of Network Interfaces: 8
SFP(+): None
10G RJ45: None
2.5G RJ45: 8
1G RJ45: None
Serial Ports: 1

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI
4 × USB 3.0
1 × M.2, 2 × Mini PCIe, 1 × SATA 3.0
1 × RS-232 (RJ-45)
8 × Intel I225-V/I226-V 2.5 Gigabit LAN

Specifications

Processor System
CPU	Intel 8thWhiskey Lake-U Processor Intel 8th Coffee Lake-U Processor Intel 10th Comet lake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	8 × Intel I225-V/I226-V 2.5 Gigabit LAN
Watch Dog	Yes

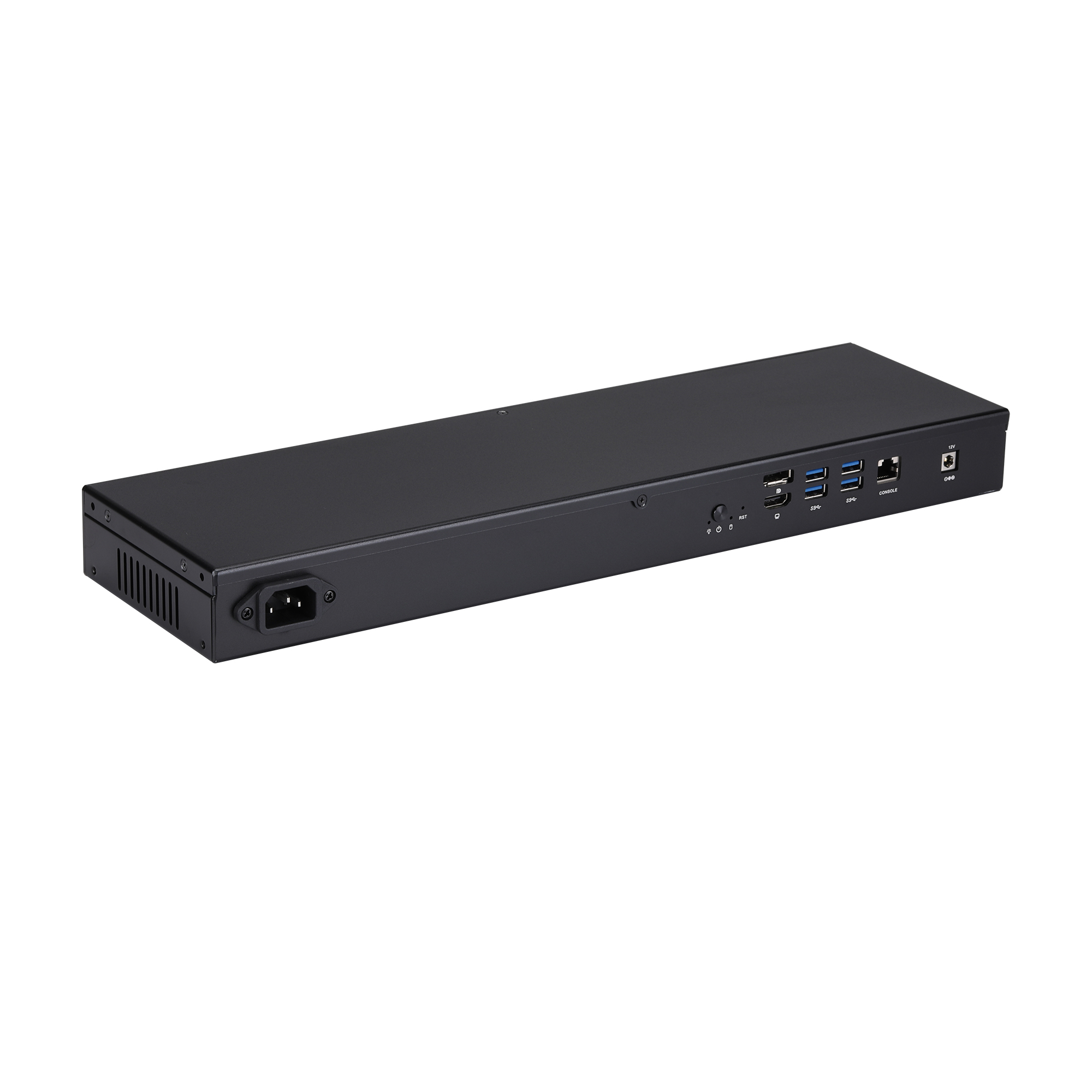

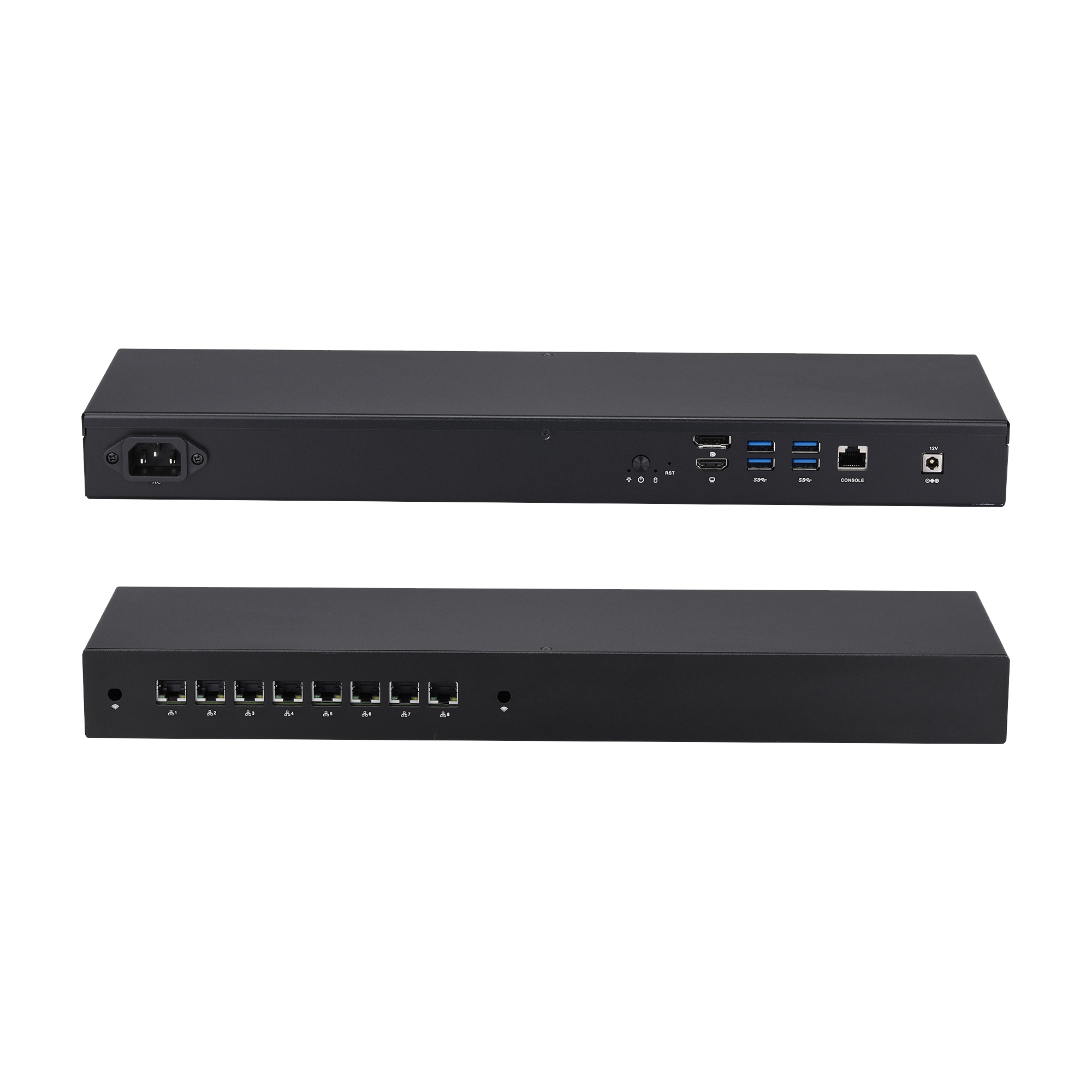

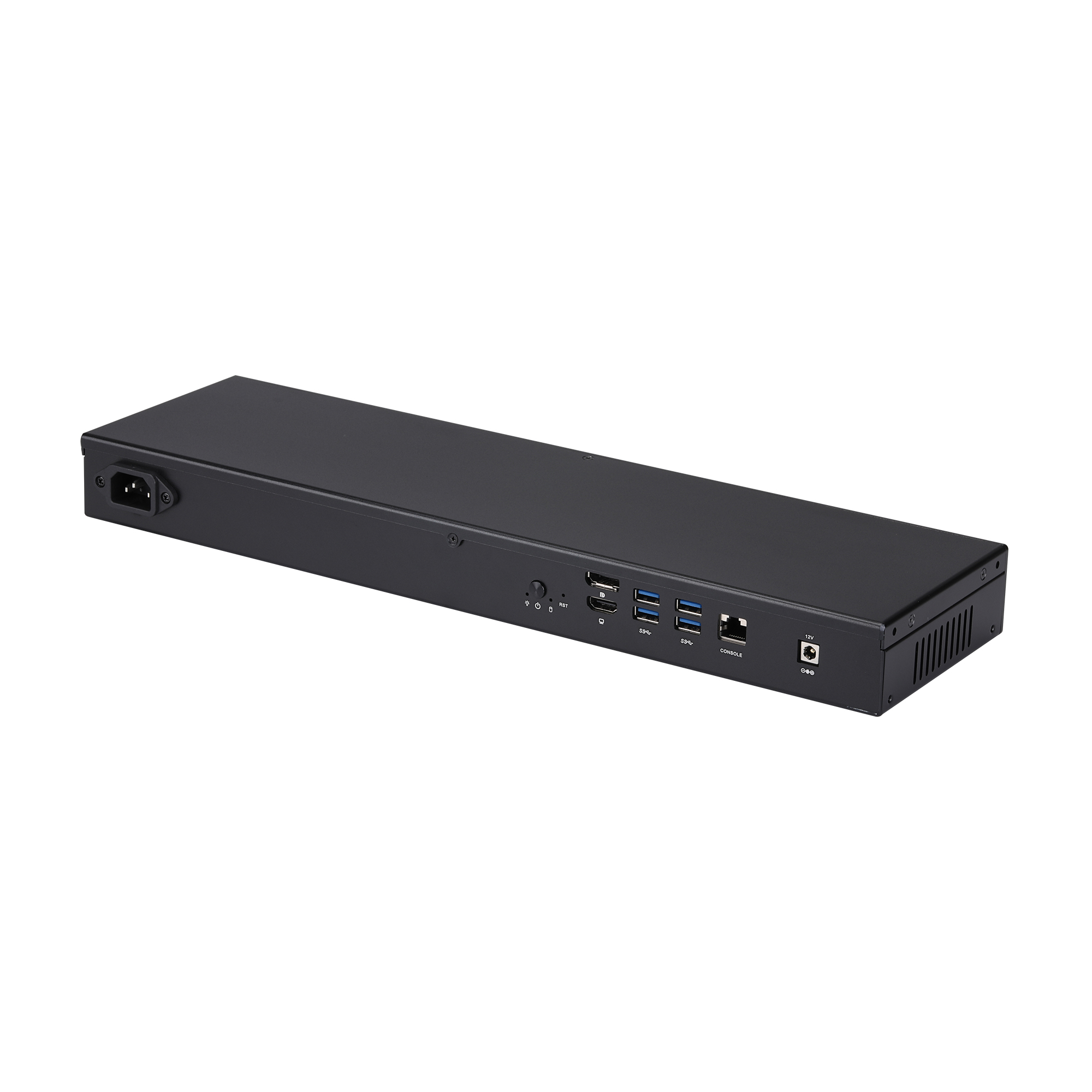

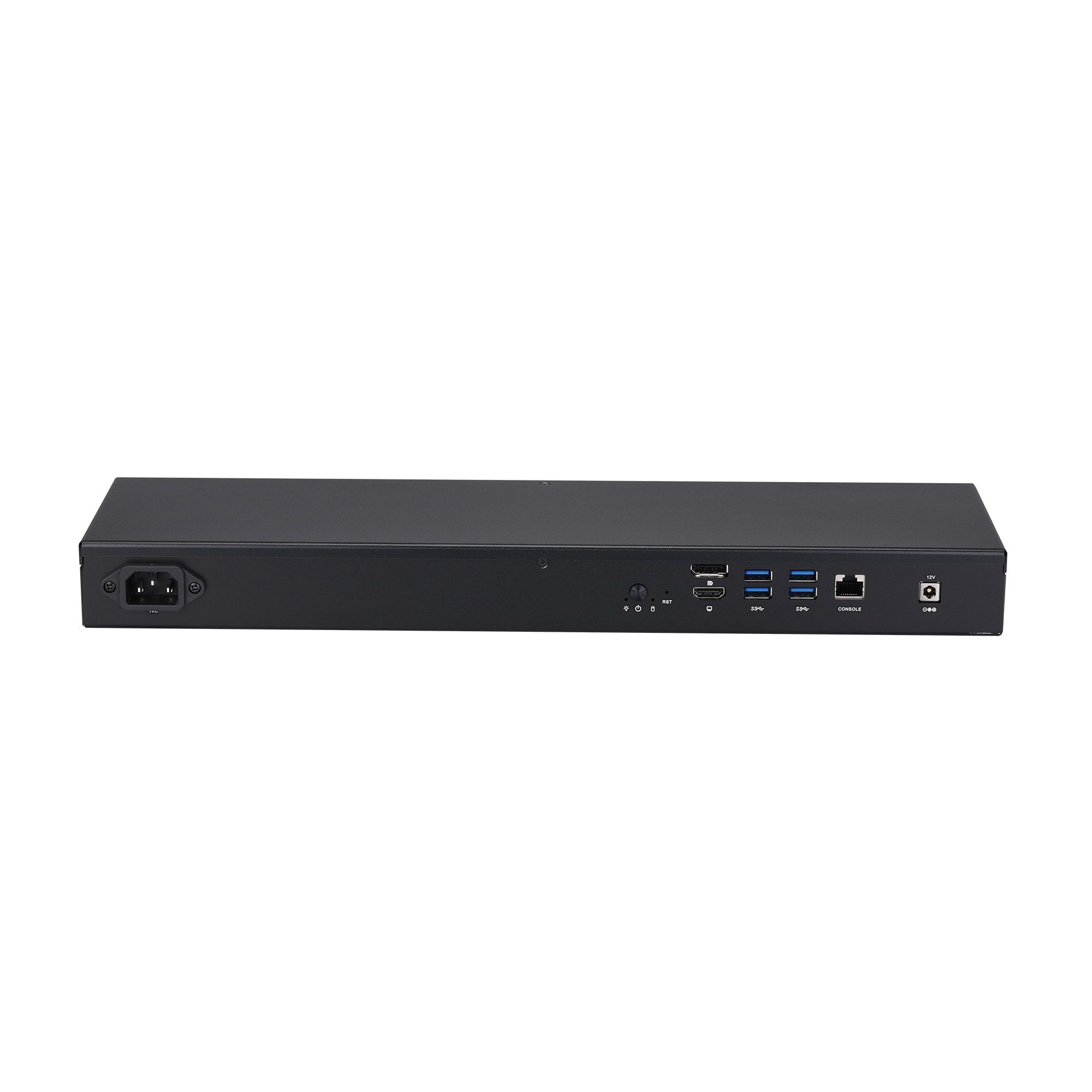

Front I/O
Power Button	1
Reset Button	1
LED	1 × Power LED, 1 × HDD LED
USB	4 × USB 3.0
Power	1 × DC Jack
Video Output	1 × HDMI, 1 × Display Port
Serial Port	1 × RS-232 Port (RJ-45)

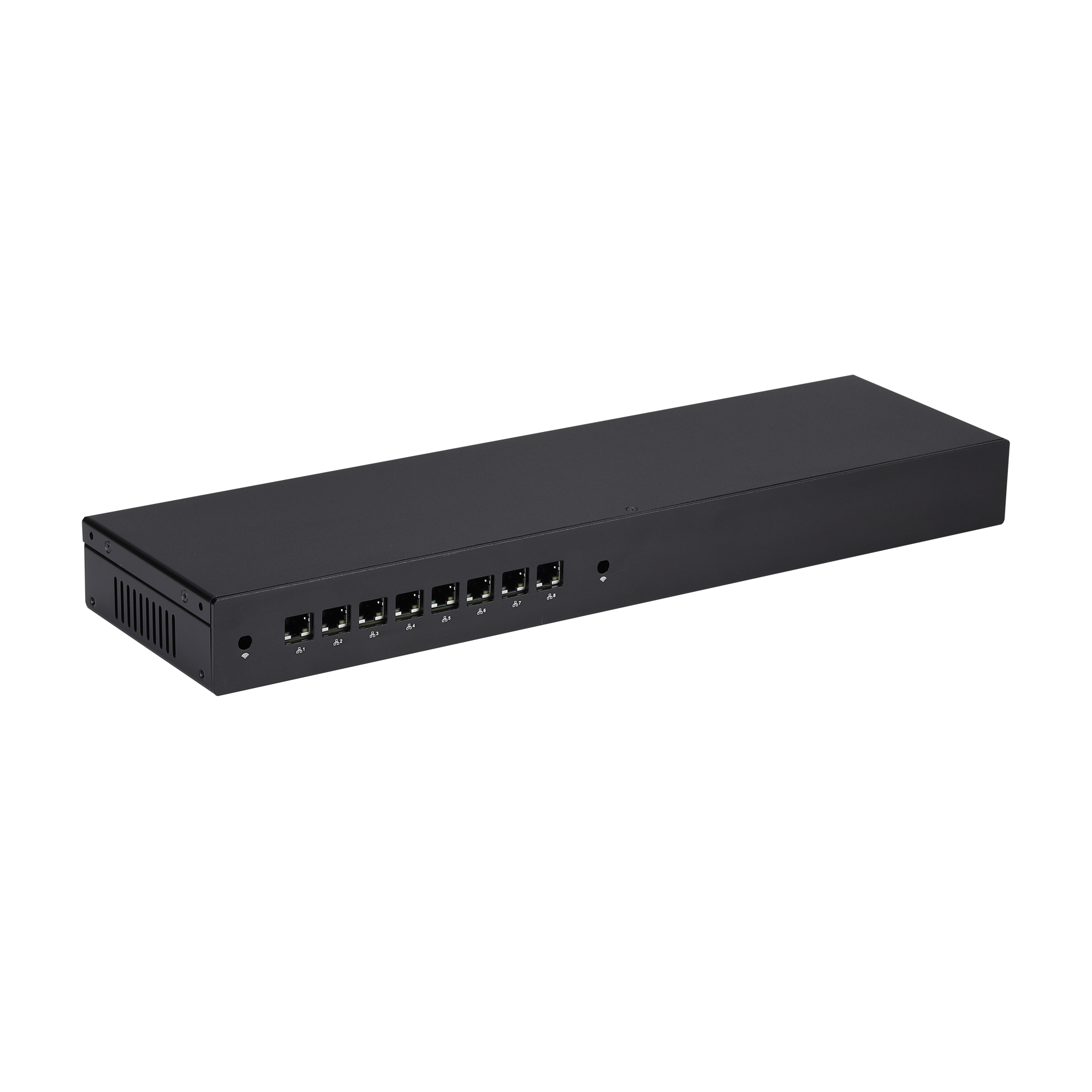

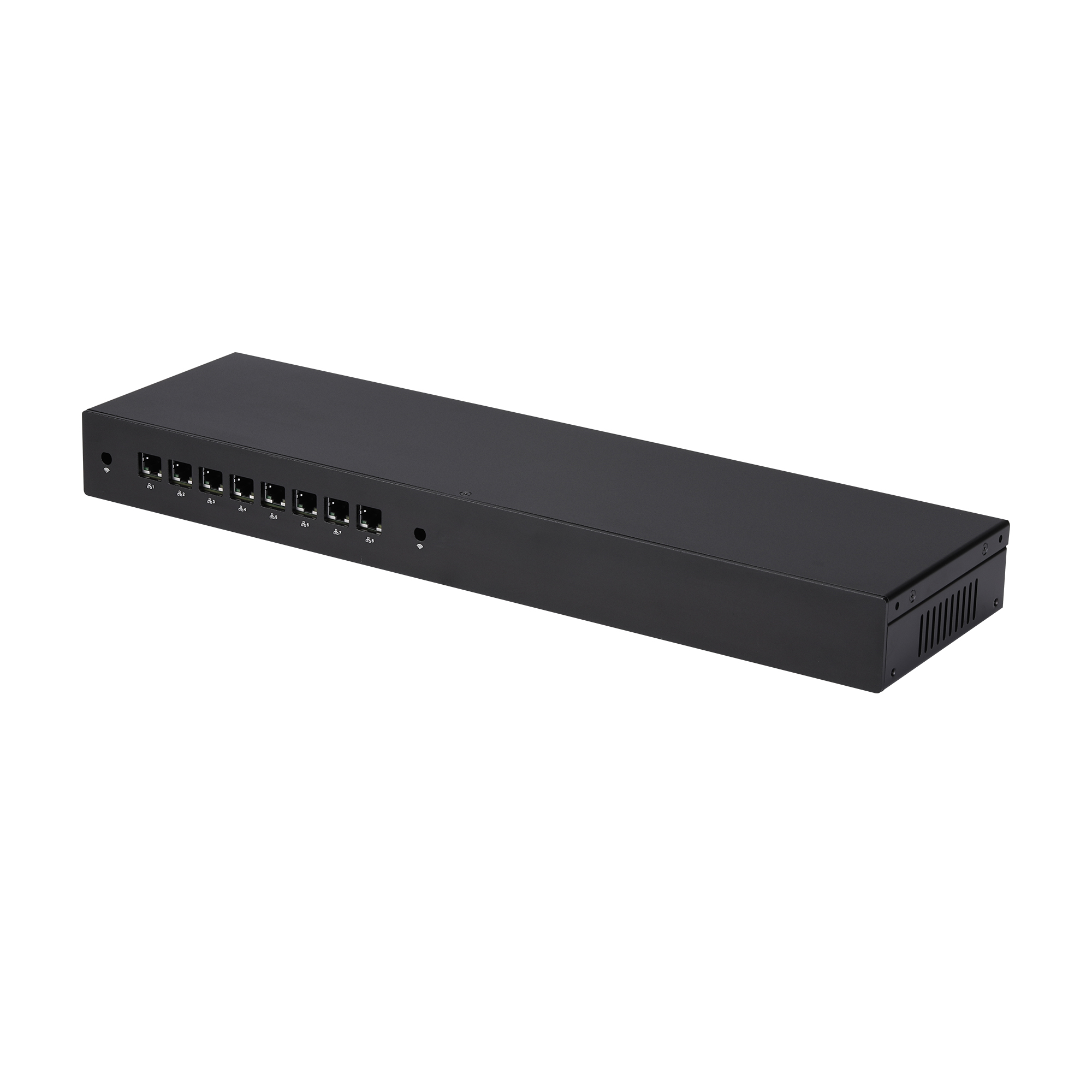

Rear I/O
LAN	8 × Intel I225-V/I226-V 2.5 Gigabit LAN
Serial Port	No
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi (Default Only Support USB Device)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
AC Input	AC 100-240V by Default
Power Adapter	DC 12V (5.5mm, 2.5mm)
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	440 × 113 × 44mm
Weight	1.20kg
Mounting	No
Packaging Dimension	545 × 180 × 90mm
Kensington Lock	No
Cooling Mode	Fan
OS Support
OS	Windows 10, Linux

In the box

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	AC Power Cord	1
3	Screws for SATA SSD/HDD	1
4	SATA cable for SSD/HDD	1	Option
5	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
AC Power Cord
1
3
Screws for SATA SSD/HDD
1
4
SATA cable for SSD/HDD
Option
1
5
Antennas
Option
2

Models & options

Ordering and Specifications Information

Quick Order Model: Q1012GE-1U07

Ordering Code	Case	Code Name	Processor Type	Processor Number	# of Cores	# of Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
Q1012GE (Q30912GE)	S10	Whiskey Lake	Celeron	4305U	2	2	2.2GHz	/	2M	Intel UHD Graphics	15W
Q1020GE (Q30921GE)	S10	Whiskey Lake	Pentium	5405U	2	4	2.3GHz	/	2M	Intel UHD Graphics	15W
Q1030GE (Q30931GE)	S10	Whiskey Lake	Core i3	8145U	2	4	2.1GHz	3.9GHz	4M	Intel UHD Graphics	15W
Q1051GE (Q30951GE)	S10	Whiskey Lake	Core i5	8265U	4	8	1.6GHz	3.9GHz	6M	Intel UHD Graphics	15W
Q1070GE (Q30971GE)	S10	Whiskey Lake	Core i7	8565U	4	8	1.8GHz	4.6GHz	8M	Intel UHD Graphics	15W
Q1052GE (Q30952GE)	S10	Coffee Lake	Core i5	8260U	4	8	1.6GHz	3.9GHz	6M	Intel UHD Graphics 620	15W
Q1015GE (Q31011GE)	S10	Comet Lake	Celeron	5205U	2	2	1.9GHz	/	2M	Intel UHD Graphics	15W
Q1016GE (Q31012GE)	S10	Comet Lake	Celeron	5305U	2	2	2.3GHz	/	2M	Intel UHD Graphics	15W
Q1025GE (Q31021GE)	S10	Comet Lake	Pentium	6405U	2	4	2.4GHz	/	2M	Intel UHD Graphics	15W
Q1035GE (Q31031GE)	S10	Comet Lake	Core i3	10110U	2	4	2.1GHz	4.1GHz	4M	Intel UHD Graphics	15W
Q1055GE (Q31051GE)	S10	Comet Lake	Core i5	10210U	4	8	1.6GHz	4.2GHz	6M	Intel UHD Graphics	15W
Q1075GE (Q31071GE)	S10	Comet Lake	Core i7	10610U	4	8	1.8GHz	4.9GHz	8M	Intel UHD Graphics	15W
Q1076GE (Q31072GE)	S10	Comet Lake	Core i7	10810U	6	12	1.1GHz	4.9GHz	12M	Intel UHD Graphics	15W
Q1077GE (Q31073GE)	S10	Comet Lake	Core i7	10710U	6	12	1.1GHz	4.7GHz	12M	Intel UHD Graphics	15W

Q1012GE
(Q30912GE)
S10

Case: S10
Code Name: Whiskey Lake
Processor Type: Celeron
Processor Number: 4305U
# of Cores: 2
# of Threads: 2
Base Frequency: 2.2GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1020GE
(Q30921GE)
S10

Case: S10
Code Name: Whiskey Lake
Processor Type: Pentium
Processor Number: 5405U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.3GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1030GE
(Q30931GE)
S10

Case: S10
Code Name: Whiskey Lake
Processor Type: Core i3
Processor Number: 8145U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.1GHz
Max Turbo Frequency: 3.9GHz
Cache: 4M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1051GE
(Q30951GE)
S10

Case: S10
Code Name: Whiskey Lake
Processor Type: Core i5
Processor Number: 8265U
# of Cores: 4
# of Threads: 8
Base Frequency: 1.6GHz
Max Turbo Frequency: 3.9GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1070GE
(Q30971GE)
S10

Case: S10
Code Name: Whiskey Lake
Processor Type: Core i7
Processor Number: 8565U
# of Cores: 4
# of Threads: 8
Base Frequency: 1.8GHz
Max Turbo Frequency: 4.6GHz
Cache: 8M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1052GE
(Q30952GE)
S10

Case: S10
Code Name: Coffee Lake
Processor Type: Core i5
Processor Number: 8260U
# of Cores: 4
# of Threads: 8
Base Frequency: 1.6GHz
Max Turbo Frequency: 3.9GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics 620
TDP: 15W

Q1015GE
(Q31011GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Celeron
Processor Number: 5205U
# of Cores: 2
# of Threads: 2
Base Frequency: 1.9GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1016GE
(Q31012GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Celeron
Processor Number: 5305U
# of Cores: 2
# of Threads: 2
Base Frequency: 2.3GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1025GE
(Q31021GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Pentium
Processor Number: 6405U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.4GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1035GE
(Q31031GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Core i3
Processor Number: 10110U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.1GHz
Max Turbo Frequency: 4.1GHz
Cache: 4M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1055GE
(Q31051GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Core i5
Processor Number: 10210U
# of Cores: 4
# of Threads: 8
Base Frequency: 1.6GHz
Max Turbo Frequency: 4.2GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1075GE
(Q31071GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Core i7
Processor Number: 10610U
# of Cores: 4
# of Threads: 8
Base Frequency: 1.8GHz
Max Turbo Frequency: 4.9GHz
Cache: 8M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1076GE
(Q31072GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Core i7
Processor Number: 10810U
# of Cores: 6
# of Threads: 12
Base Frequency: 1.1GHz
Max Turbo Frequency: 4.9GHz
Cache: 12M
Processor Graphics: Intel UHD Graphics
TDP: 15W

Q1077GE
(Q31073GE)
S10

Case: S10
Code Name: Comet Lake
Processor Type: Core i7
Processor Number: 10710U
# of Cores: 6
# of Threads: 12
Base Frequency: 1.1GHz
Max Turbo Frequency: 4.7GHz
Cache: 12M
Processor Graphics: Intel UHD Graphics
TDP: 15W

PC Case Options

Category	SATA Support
S10	Yes
S13	Yes
S20	Yes
1U07	Yes

Custom Options

Category	Description
Serial Port	5 × RS-232
VGA	1
USB 2.0	6
GPIO	1
RS-485	2
TPM 2.0	1 (SLB9665)
